Model No.: EWN12000S
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

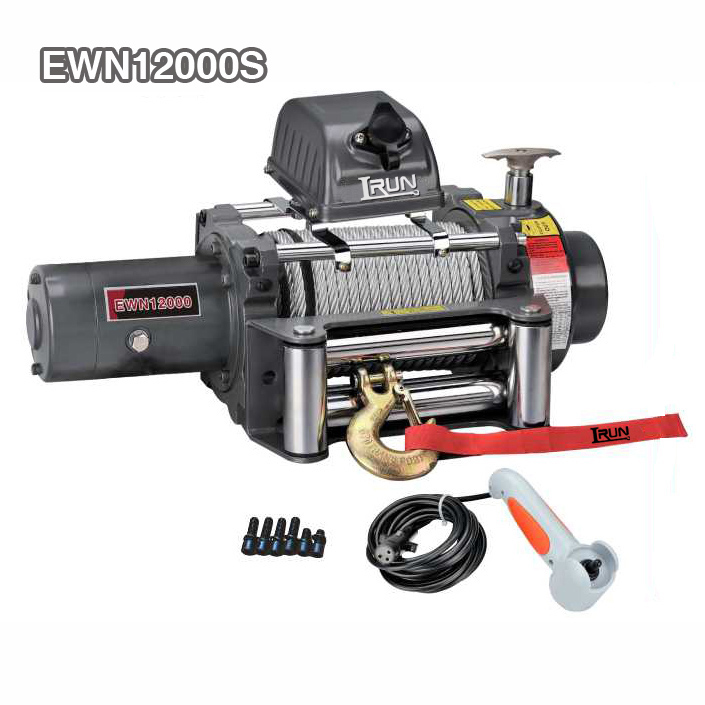

Heavy Duty Electric Offroad Trailer Winch 12000 Lb
Heavy Duty Electric Offraod Recovery Car Winch Item No. EWN12000U Winching Capacity of up to 12000lbs
Each winch come along with a control box, a wire rope with hook,a roller failread accessories.
This winch is equipped with a Heavy duty automatic screw cone braking action for a safe operation,and a patent hardened heavy duty full steel three stage planetar gear reducer provides high efficient transmisson.
Heavy Duty Winch EWN Series have a more durable working life and better efficient transmission than our EWX Series.They’re widely applied for severe offroad or engineering use.
Professional solutions for the full range of winch products and accessories
Hydraulic Winches: Hydraulic drive, the first choice for large torque and heavy load, suitable for heavy-duty traction of 5-50 tons in mines, ships, etc.
Industrial Winches: All-steel forging, IP67 protection, 24-hour continuous operation, serving production lines, infrastructure and other industrial scenarios ranging from 1 to 30 tons.
Hydraulic 4wd Winches: Specifically designed for four-wheel drive vehicles, featuring high and low gear switching, conquering extreme terrains such as mudflats and rocks.
Offroad Winches: Lightweight design, synthetic fiber cable, IP68 waterproof, suitable for self-rescue of off-road vehicles weighing 3,000 to 15,000 pounds.
Recovery Winches: Wireless remote control + automatic braking, 3-second response, SAE certified, used for road clearance and post-disaster rescue.
Winch Accessories: Covering mechanical, electronic and consumable accessories, enhancing the efficiency and safety of operations in various scenarios.
Features:
1.) Free spooling clutch
2.) Automatic screw cone braking action
3.) Series wound motor
4.) Patent design three stage planetary gear reducer
5.) Specially designed shape for convenience of installation and good looking
6.) Remote control through control box and switch
7.) Wireless remote control available
8.) DC 12V or DC 24V Power drive optional
EWN12000
| SPECIFICATION | |
| Rated line pull | 12000 lbs (5443kgs) |
| Motor: permanent magnet | 12V:Input: 5.4kW / 7.2hp;Output: 2.1kW /2.8hp 24V:Input: 5.3kW / 7.1hp;Output: 2.5 kW /3.4hp |
| Gear reduction ratio | 332:1 |
| Cable (Dia.× L) | Ø13/32″×83.7 ‘ (Ø10.2mm×25.5m) |
| Drum size (Dia.× L) | Ø2.8 “×8.6” (Ø72mm×219mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 12000(5443) | 18.4(5.6) | |
| 0 | 16.4(5.0) | 17.7(5.4) | 80 | 40 | 2 | 9800(4445) | 41.0(12.5) |
| 6000(2722) | 7.54(2.3) | 7.9(2.4) | 260 | 110 | 3 | 8300(3765) | 65.6(20.0) |
| 8000(3629) | 6.4(1.95) | 6.6(2.0) | 310 | 145 | 4 | 7200(3266) | 83.7(25.5) |
| 10000(4536) | 5.74(1.75) | 5.9(1.8) | 380 | 185 | |||
| 12000(5443) | 4.76(1.45) | 5.6(1.7) | 450 | 220 | |||
| ITEM | EWN12000U | EWN12000S | |
| Overall dimensions | 22.6″×8.1″×9.7″ 573mm×206mm×246mm | 22.6″×8.1″×11.8″ 573mm×206mm×299mm | |
| (L×W×H) | |||
| Net weight (Ibs) | 132.3 61 | 132.4 61.3 | |
| (kgs) |
Overall Dimensions 22.6″ x 8.1″ x 11.8″
(L x W x H) 573mm x 206mm x 299mm
Net Weight 61.3 KGS
