Model No.: EWG8000U
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

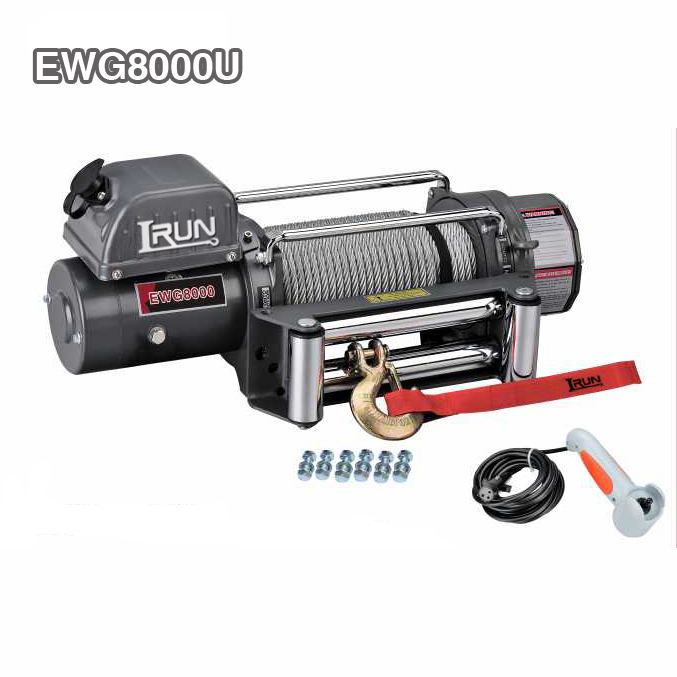

EWG8000U Electric Trailer Winch - A pioneering work, a globally trusted winch field. Hydraulic Winches responds to heavy-load demands with powerful performance, and Industrial Winches supports industrial operations with its robust durability. Hydraulic 4wd Winches conquer complex terrains with their four-wheel drive characteristics, Offroad Winches assist off-road enthusiasts in challenging their limits, and Recovery Winches are the core players for emergency rescue. The Item No.EWG8000U 8000 lbs electric Trailer Winch, as a pioneering product of the 4×4 rescue winch with serial-excited motors, is specially designed for SUVs and Jeeds. With its stable quality, outstanding performance and affordable price, it has won wide acclaim from global customers!
Since its debut, the EWG8000U has redefined the standards for trailer rescue as a pioneer. With a powerful pulling force of 8,000 pounds, whether it is an SUV Mired in mud or a Jeep trapped in the wilderness, it can quickly carry out efficient rescue, perfectly demonstrating the professional rescue capabilities of Recovery Winches. Unlike the complex Hydraulic system and high maintenance cost of Hydraulic Winches, it adopts electric drive, is easy to operate and responds quickly, significantly lowering the usage threshold. Meanwhile, inheriting the durable essence of Industrial Winches, the body and precise transmission structure polished by strict craftsmanship ensure stability and reliability under high-intensity and high-frequency use.
We have always been committed to optimizing product details and strictly controlling production costs, which is precisely the key reason why the EWG8000U has received wide acclaim. It is equipped with professional Winch Accessories such as high-strength steel wire ropes and convenient control components, providing a one-stop solution from operation to traction. The combination of compact design and high-efficiency motors makes rescue operations more composed. Whether exploring extreme off-road routes with Offroad Winches or cooperating with Hydraulic 4Wd Winches to cope with harsh environments, the EWG8000U can stand out with its stable performance and ultra-high cost performance, becoming a benchmark product in the field of off-road rescue. Safeguard every adventure journey with pioneering quality!
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWG8000
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629 kgs) |
| Motor: series wound | 12V:Input: 3.8kW / 5.1hp; Output: 2.7kW / 3.6hp 24V:Input: 5.0kW / 6.7hp; Output: 3.0kW /4.0hp |
| Gear reduction ratio | 210:1(12V); 150:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9 ” (Ø63mm×227mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 8000(3629) | 19.7 (6.0) | |
| 0(0) | 24.0(7.3) | 34.4(10.5) | 80 | 50 | 2 | 6500(2948) | 42.7 (13.0) |
| 2000(907) | 12.5(3.8) | 19.0(5.8) | 150 | 90 | 3 | 5500(2495) | 68.9(21.0) |
| 4000(1814) | 8.9(2.7) | 12.8 (3.9) | 220 | 135 | 4 | 4800(2177) | 95.1(29.0) |
| 6000(2722) | 6.9 (2.1) | 9.8(3.0) | 270 | 170 | |||
| 8000(3629) | 5.6(1.7) | 6.6 (2.0) | 320 | 210 | |||
| ITEM | EWG8000U | EWG8000S | EWG8000F |
| Overall dimensions | 22.4″×7.1″×9.6″ 570mm×180mm×243mm | 22.4″×7.1″×11.7″ 570mm×180mm×297mm | 22.4″×7.1″×10.6″ 570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 72.5 32.8 | 72.9 33.1 | 73.8 33.5 |
| (kgs) |

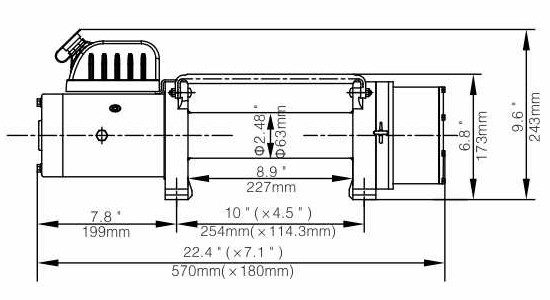

Overall Dimensions：22.4″ x 7.1″ x 8.9″
(L x W x H) 570mm x 180mm x 225mm
Net Weight： 32.8 KGS
