Model No.: EWG8000F
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

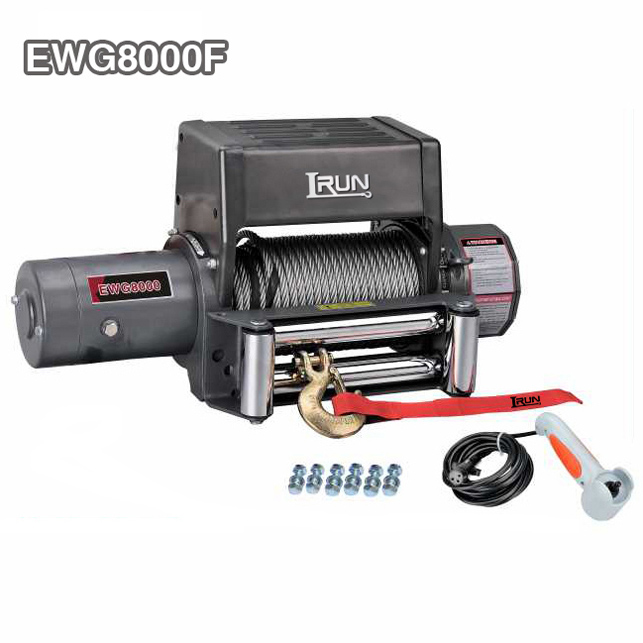

G Series 4×4 Electric Trailer Winches 8000lbs For Suv or Jeep
In the diverse fields of Winches, Hydraulic Winches handle heavy loads with strong power, Industrial Winches support industrial-grade operations with robustness and durability, and Hydraulic 4wd Winches conquer complex terrains with the advantage of four-wheel drive. Offroad Winches are reliable companions for off-road enthusiasts to break through difficult situations, while Recovery Winches always shoulder the heavy responsibility of emergency rescue. Item No.EWG8000F of 8000 lbs Electric Trailer Winch, as a pioneering model of 4×4 rescue winches, features an innovative design of vertical control box and series-excited motor, specially tailored for SUVs and Jeels. With its stable quality, outstanding performance and affordable price, it has won high praise from global customers!
The EWG8000F has a powerful traction of 8,000 pounds. Whether it is an SUV stuck in the mud or a Jeep trapped in the wilderness, it can complete the rescue quickly and stably, perfectly demonstrating the efficiency and professionalism of Recovery Winches. Compared with the complex Hydraulic system and high maintenance cost of Hydraulic Winches, it adopts electric drive, is easy to operate and responds quickly. Meanwhile, drawing on the durable essence of Industrial Winches, the body and transmission system, crafted through strict processes, ensure stable performance even during frequent use.
The vertical control box design not only saves space but also makes operation within easy reach. Equipped with professional Winch Accessories such as high-strength steel wire ropes and roller cable guides, it enables one-stop efficient rescue from control to traction. Whether exploring unknown off-road routes with Offroad Winches or cooperating with Hydraulic 4Wd Winches to cope with harsh environments, the EWG8000F can stand out with its stable performance and extremely high cost performance, becoming a benchmark product in the field of off-road rescue. Escort every adventure with a pioneering spirit!
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWG8000
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629 kgs) |
| Motor: Series Wound | 12V:Input: 3.8kW / 5.1hp; Output: 2.7kW / 3.6hp 24V:Input: 5.0kW / 6.7hp; Output: 3.0kW /4.0hp |
| Gear reduction ratio | 210:1(12V); 150:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9 ” (Ø63mm×227mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 8000(3629) | 19.7 (6.0) | |
| 0(0) | 24.0(7.3) | 34.4(10.5) | 80 | 50 | 2 | 6500(2948) | 42.7 (13.0) |
| 2000(907) | 12.5(3.8) | 19.0(5.8) | 150 | 90 | 3 | 5500(2495) | 68.9(21.0) |
| 4000(1814) | 8.9(2.7) | 12.8 (3.9) | 220 | 135 | 4 | 4800(2177) | 95.1(29.0) |
| 6000(2722) | 6.9 (2.1) | 9.8(3.0) | 270 | 170 | |||
| 8000(3629) | 5.6(1.7) | 6.6 (2.0) | 320 | 210 | |||
| ITEM | EWG8000U | EWG8000S | EWG8000F |
| Overall dimensions | 22.4″×7.1″×9.6″ 570mm×180mm×243mm | 22.4″×7.1″×11.7″ 570mm×180mm×297mm | 22.4″×7.1″×10.6″ 570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 72.5 32.8 | 72.9 33.1 | 73.8 33.5 |
| (kgs) |
Overall Dimensions：22.4″ x 7.1″ x 10.6″
(L x W x H) 570mm x 180mm x 270mm
Net Weight：33.5 KGS
