Stand-up Control Box Offroad Electric Winch 9500

Stand-up Control Box Offroad Electric Winch 9500

Get Latest Price

Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,CFR,CIF
Transportation:	Ocean,Air
Port:	NINGBO,SHANGHAI

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: EWB9500F-SR

Brand: OEM ORDER ACCEPTABLE

Power Source: Electric

Application: Atv/Utv

Voltage: 24v, 12v

Packaging & Delivery

Package Type

EXPORT CARTON

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

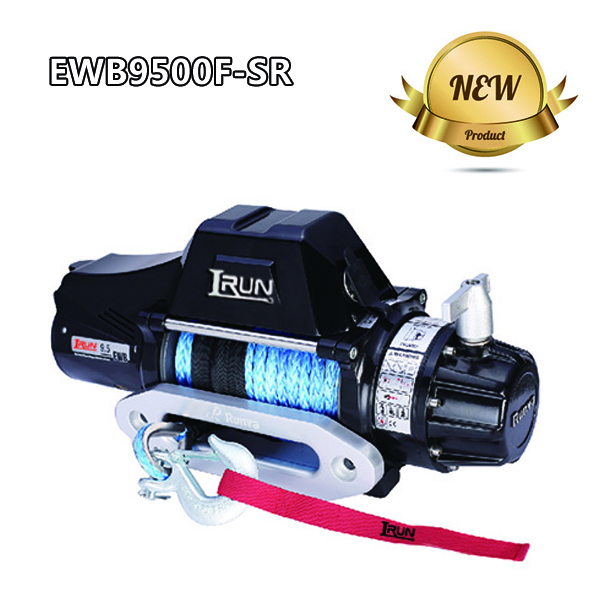

Stand Up Control Box Offroad Electric Winch 9500 Lbs With Supper Power

Electric Winch 9500 lbs Item No. EWB9500F-SR

This Model has a rated line pull of 9500lbs. It’s a hot seller model because of features of high performance with innovative brake. High-efficient transmission delivers high pull-in speed and low noise. All-stainless out-installed components ensure these winches work more durable.

Features:

All-new patented waterproof design meets IP67 standards.
Innovative brake inside the gearbox, offers excellent safe, reliable performance.
Stainless steel rotary clutch for smooth and convenient operations.
Stainless steel out-installed screws.
Exclusive brake design inside gearbox prevents rope damage with the drum over-hot after long-time operation.
Copper connection sealed control pack with elegant appearance.
High –efficient transmission delivers 9m/min pull-in speed and power saving.
Over-current protection available for safe winching.
Compression-resisted rubber hand remote control.
Synthetic Rope and Aluminium fairlead are supplied

EWB9500F-SR

Specification:
	Rated line pull	9500 lbs (4309 kg)
	Motor: Series wound	12V:Input: 4.6kW / 6.1hp
		Output: 2.1kW / 2.8hp
		24V:Input: 6.5kW / 8.7hp
		Output: 2.8kW / 3.8hp
	Gear reduction ratio	228:1
	Cable (Dia.× L)	Ø3/8″×85 ‘ (Ø9.2mm×26m)
	Drum size (Dia.× L)	Ø2.48 “×8.5 ” (Ø63mm×217 mm)

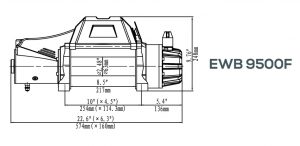

	Mounting bolt pattern	10 “×4.5 ” (254mm×114.3 mm) 4-M10

Pull Speed Amperes Volts First layer					Line Pull And Rope Capacity In Layer
Line Pull Lbs. (kg)	Line Speed Ft/min (m/min)		Current A			Layer of cable	Rated line pull Lbs. (kg)	Total Rope On Drum ft (m)
	12V DC	24V DC	12V DC	24V DC		1	9500(4309)	17.4(5.3)
0	32.2 (9.8)	34.4 (10.5)	75	65		2	7706(3495)	39.4(12.0)
3000(1361)	14.8 (4.5)	16.4(5.0)	170	140		3	6482(2940)	65.0(19.8)
6000(2722)	10.5(3.2)	12.5 (3.8)	260	210		4	5593(2537)	85.3(26.0)
9500(4309)	6.6(2.0)	9.2(2.8)	380	270
