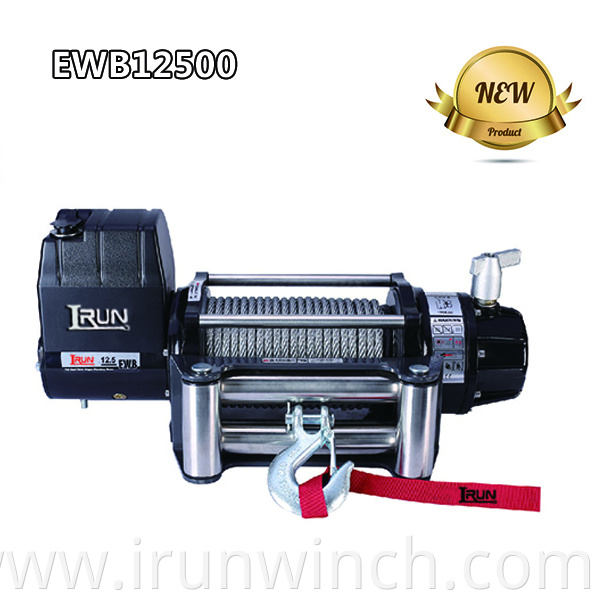

12500lb Electric Winch with Patent Design

EWB12500
12500 lbs Electric Recovery Winch  with a  control box tied on winch bar Item NO. EWB12500 . It’s your wise option on high performance 12500 pounds electric recovery winch .It’s as a 12500 pounds repersentive winch of   EWB Series  with these advantages  perfect efficiency ,stable pulling and compact design. This Series winches have ourself patent design three stage planetary gear reducer making winches be of extreme transmission efficiency and reliable safety operation

Features:

• All-new patented waterproof design meets IP67 standards.
• Innovative brake inside the gearbox, offers excellent safe, reliable performance.
• Stainless steel rotary clutch for smooth and convenient operations.
• Stainless steel out-installed screws.
• Exclusive brake design inside gearbox prevents rope damage with the drum over-hot after long-time operation.
• Copper connection sealed control pack with elegant appearance.
• High –efficient transmission delivers 9m/min pull-in speed and power saving.
• Over-current protection available for safe winching.
• Compression-resisted rubber hand remote control.
• EWB 12500


  Specification:
  	Rated line pull		12500 lbs (5670 kg)
  	Motor: Series wound		12V:Input: 5.9kW / 7.9hp
  			Output: 2.4kW / 3.2hp
  			24V:Input: 4.8kW / 6.4hp
  			Output: 3.1kW /4.2hp
  	Gear reduction ratio		228:1
  	Cable (Dia.× L)		Ø13/32″×83.7 ‘ (Ø10.2mm×25.5m)
  	Drum size (Dia.× L)		Ø2.48 “×8.5 ” (Ø63mm×217 mm)
  	Mounting bolt pattern		10 “×4.5 ” (254mm×114.3 mm) 4-M10



  Pull Speed Amperes Volts First layer					Line Pull And Rope Capacity In Layer
  Line Pull Lbs. (kg)	Line Speed Ft/min (m/min)		Current A			Layer of cable	Rated line pull Lbs. (kg)	Total Rope On Drum ft (m)
  	12V DC	24V DC	12V DC	24V DC		1	12500(5670)	16.1(4.9)
  0	32.8 (10.0)	34.8 (10.6)	75	60		2	9776(4434)	36.4(11.1)
  3000(1361)	15.7 (4.8)	17.4 (5.3)	190	85		3	8026(3641)	60.0(18.3)
  9000(4082)	8.2 (2.5)	10.2 (3.1)	360	150		4	6808(3088)	83.7(25.5)
  12500(5670)	5.2 (1.6)	6.9 (1.9)	490	200



  ITEM	EWB 12500U	EWB 12500F

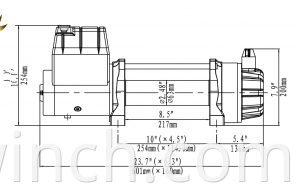

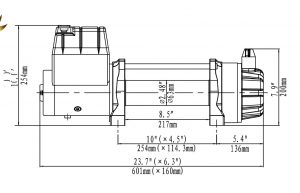

  Overall dimensions	23.7″×6.3″×10.0″	23.7″×6.3″×9.8″
  (L×W×H)	601mm×160mm×254mm	601mm×160mm×248mm
  Net weight (Ibs/kg)	94.6lbs / 42.9kg	97.2lbs / 44.1kg

•
