Model No.: EWX9500-Q
Brand: OEM ORDER ACCEPTABLE
Power Source: Electric
Application: Atv/Utv
Voltage: 24v, 12v
| Selling Units | : | Bag/Bags |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

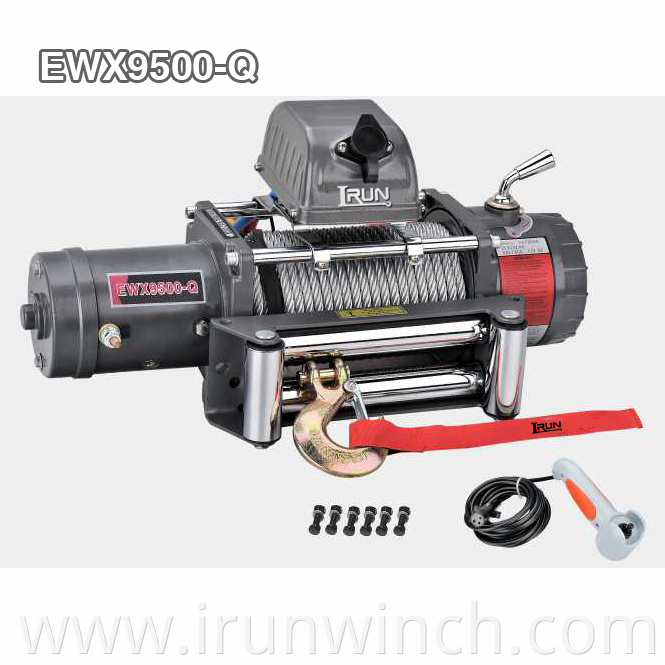

EWX9500U-Q
Fast Speed Line 9500 lbs Electric Winch control box tied on winch bar Model NO. EWX9500-Q is a ideal choose for fast line speed requirement. It’s as a representive of our fast speed winch come from EWX Series which features perfect efficiency ,stable pulling and compact design. This Series winches have ourself patent design three stage planetary gear reducer making winches be of extreme transmission efficiency and reliable safety operation
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. DC 12V or DC 24V Power drive optional
6. Remote control through control box and switch
7. Wireless remote control and SWR tensioner available
EWX9500-Q
| SPECIFICATION | |
| Rated line pull | 9500 lbs (4309 kgs) |
| Motor: Series wound | 12V:Input: 6.4kW / 8.6hp; Output: 2.8kW / 3.8hp |
| 24V:Input: 8.0kW / 10.7hp; Output: 3.2kW / 4.3hp | |
| Gear reduction ratio | 110:1 |
| Cable (Dia.× L) | Ø3/8″×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 9500(4309) | 17.4(5.3) | |
| 0 | 50.2 (15.3) | 53.2 (16.2) | 80 | 90 | 2 | 7706(3495) | 39.4 (12.0) |
| 1000(454) | 42.7 (13.0) | 49.2(15.0) | 150 | 160 | 3 | 6482(2940) | 65.0(19.8 |
| 4000(1814) | 17.1(5.2) | 18.4 (5.6) | 300 | 250 | 4 | 5593(2537) | 85.3 (26.0) |
| 6000(2722) | 11.8(3.6) | 15.8(4.8) | 400 | 340 | |||
| 8000(3629) | 9.5(2.9) | 13.1(4.0) | 470 | 400 | |||
| 9500(4309) | 8.9(2.7) | 11.8(3.6) | 530 | 480 | |||
| ITEM | EWX9500-Q | ||
| Overall dimensions | 22.7″×6.3″×11.1″ | ||
| (L×W×H) | 577mm×160mm×283mm | ||
| Net weight (Ibs) | 70.5 | ||
| (kgs) | 32.0 |
Overall Dimensions：22.7″ x 6.3″ x 11.1″
(L x W x H) 577mm x 160mm x 283mm
Net Weight：32 KGS
