Model No.: EWX8000F
Brand: OEM ORDER ACCEPTABLE
Power Source: Electric
Application: Atv/Utv
Voltage: 24v, 12v
| Selling Units | : | Bag/Bags |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

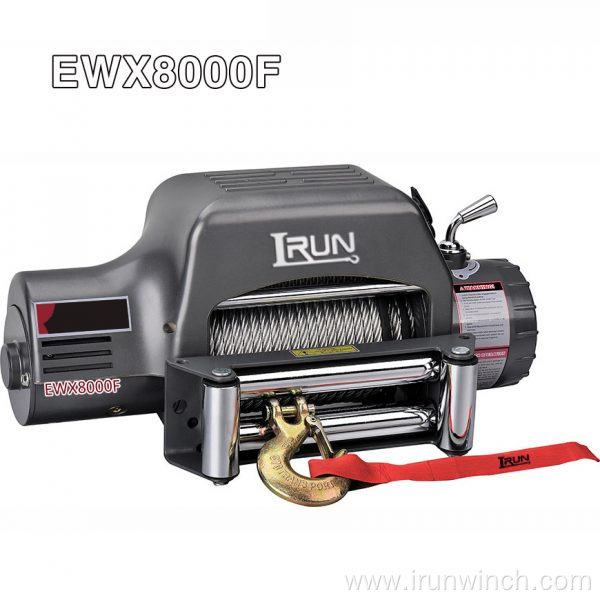

EWX8000F
8000 lbs Electric Offroad Recovery Winch which is a winch with a stand-up control box and intalled a powerful series wound motor. The winch equipped with ourself patent design three stage planetary gear reducer to make sure extreme transmission efficiency and reliable safety. It wins fine repuation from our clients because of it’s perfect efficiency ,stable pulling and compact design features.
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Short Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F type fixed in control box
9. SWR tensioner available
EWX8000
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629kgs) |
| Motor: Series Wound | 12V:Input: 4.3kW / 5.8hp; Output: 2.0kW / 2.7hp |
| 24V:Input: 5.5kW / 7.4hp; Output: 2.8kW / 3.8hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø21/64″×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 2000(907) | 6.6(2.0) | |
| 0 | 9.5(2.9) | 9.8(3.0) | 15 | 12 | 2 | 1630(739) | 14.1(4.3) |
| 500(227) | 8.2(2.5) | 8.9(2.7) | 60 | 40 | 3 | 1380(626) | 22.3(6.8) |
| 1500(680) | 5.6(1.7) | 7.5(2.3) | 115 | 60 | 4 | 1190(540) | 31.2(9.5) |
| 2000(907) | 3.6(1.1) | 6.2(1.9) | 145 | 80 | 5 | 1050(476) | 41.0(12.5) |
| 6 | 940(426) | 49.2(15.0) | |||||
| ITEM | EWX8000U | EWX8000S | EWX8000F |
| Overall dimensions | 21.3″×6.3″×10.0″ | 21.3″×6.3″×11.1″ | 21.3″×6.3″×9.9″ |
| (L×W×H) | 540mm×160mm×254mm | 540mm×160mm×283mm | 540mm×160mm×251mm |
| Net weight (Ibs) | 71.9 | 77.3 | 82.1 |
| (kgs) | 32.6 | 35.1 | 37.2 |

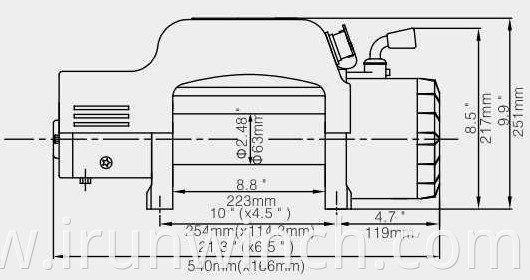

Overall Dimensions：21.3″ x 6.5″ x 9.9″
(L x W x H) 540mm x 166mm x 251mm
Net weight：37.2 KGS
