Model No.: EWX12000F
Brand: OEM ORDER ACCEPTABLE
Power Source: Electric
Voltage: 24v, 12v
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

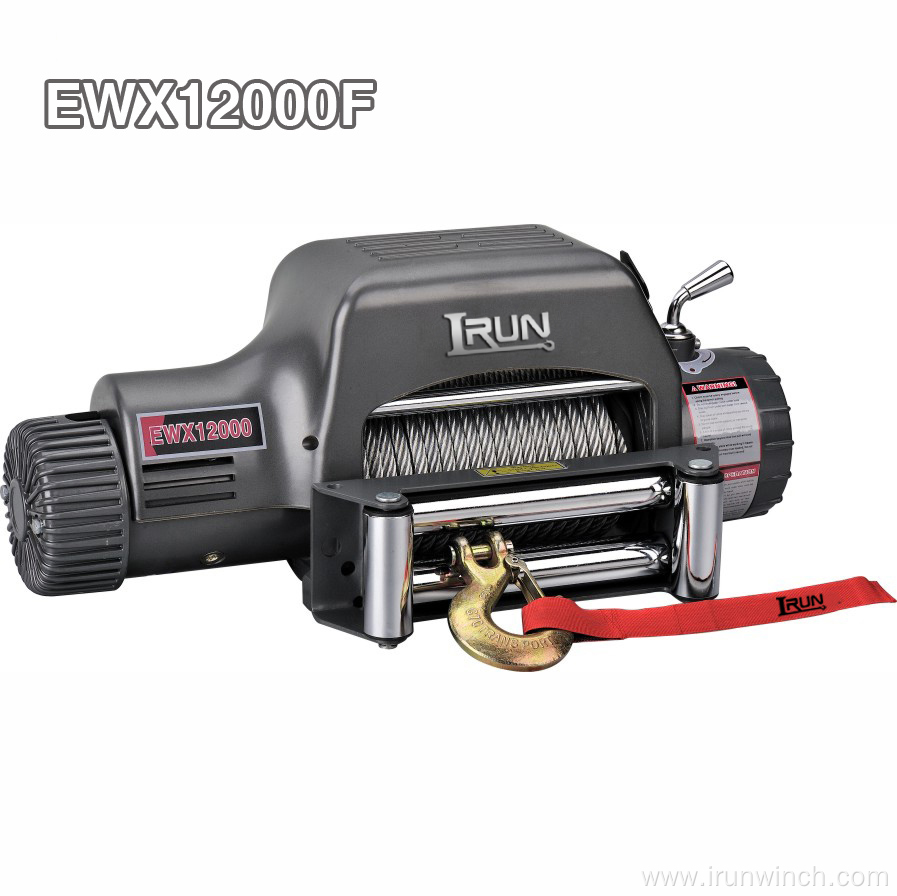

DC 12V Or 24V Recovery Electric Winch 12000lbs With Stand Up Control Box
EWX12000F
12000 lbs Electric Winch with stand-up style control box . It’s as the classic 12000 lbs Recovery Winch of our winch EWX Series which features perfect efficiency ,stable pulling and compact design. This Series winches have ourself patent design three stage planetary gear reducer making winches be of extreme transmission efficiency and reliable safety operation.
Features:
1. Full steel reducer gear
2. Patent design three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F tyoe fixed in control box
9. SWR tensioner available
EWX12000
| SPECIFICATION | |
| Rated line pull | 12000 lbs (5443 kgs) |
| Motor: Series Wound | 12V:Input: 5.4 kW / 7.2hp; Output: 2.7kW / 3.6hp |
| 24V:Input: 5.3 kW / 7.1hp; Output: 3.3 kW /4.4hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø13/32 “×83.7 ‘ (Ø10.2mm×25.5m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 12000(5443) | 16.1 (4.9) | |
| 0(0) | 22.3(6.8) | 23.0(7.0) | 100 | 60 | 2 | 9563(4338) | 36.4 (11.1) |
| 4000(1814) | 13.1(4.0) | 13.8(4.2) | 220 | 130 | 3 | 7948(3605) | 60.0(18.3) |
| 8000(3629) | 9.8(3.0) | 10.8(3.3) | 330 | 170 | 4 | 6800(3084) | 83.7(25.5) |
| 12000(5443) | 5.8(1.8) | 7.5(2.3) | 450 | 220 | |||

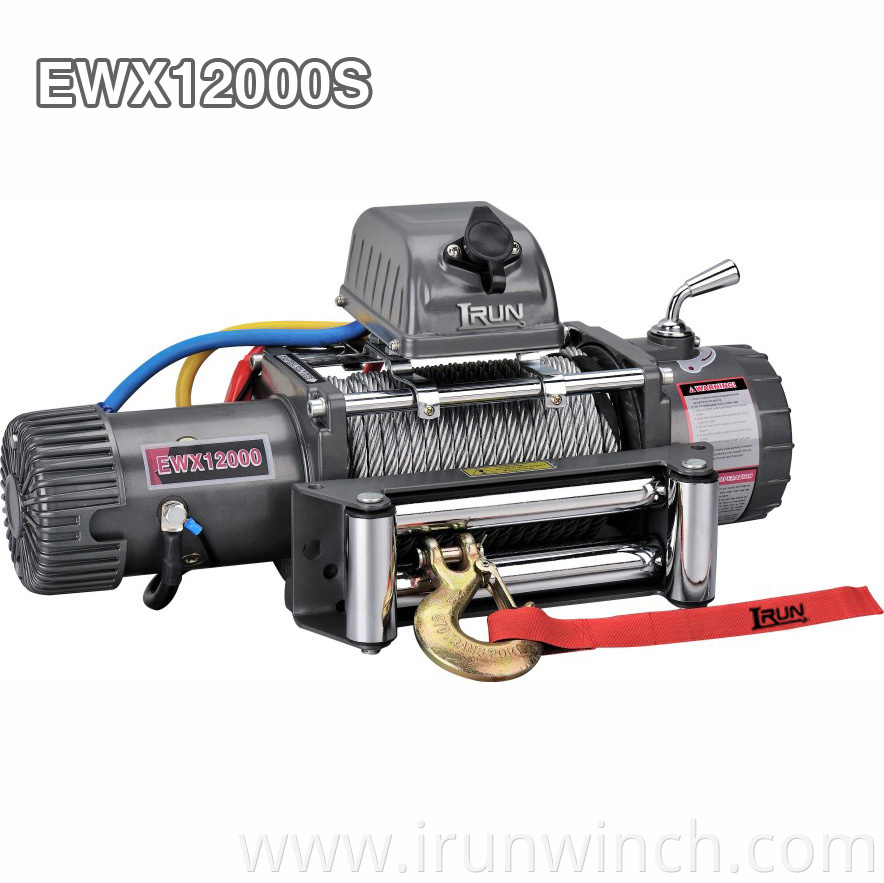

| ITEM | EWX12000U | EWX12000S | EWX12000F |
| Overall dimensions | 22.8″×6.3″×10.0″ | 22.8″×6.3″×11.1″ | 23.2″×6.5″9.9″ |
| (L×W×H) | 579mm×160mm×254mm | 579mm×160mm×283mm | 579mm×160mm×283mm |
| Net weight (Ibs) | 92.6 | 93.3 | 96.6 |
| (kgs) | 42.0 | 42.3 | 43.8 |

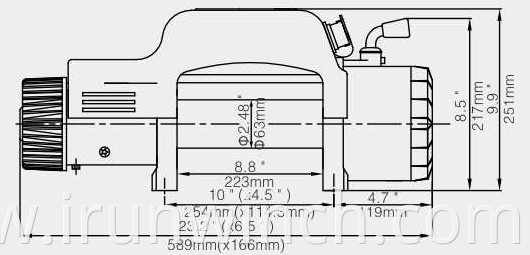

Overall Dimensions：23.2″ x 6.5″ x 9.9″
(L x W x H) 589mm x 166mm x 251mm
Net Weight：43.8 kGS
