Model No.: EWX10000U
Brand: OEM ORDER ACCEPTABLE
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Bag/Bags |
| Package Type | : | Export Carton |
The file is encrypted. Please fill in the following information to continue accessing it

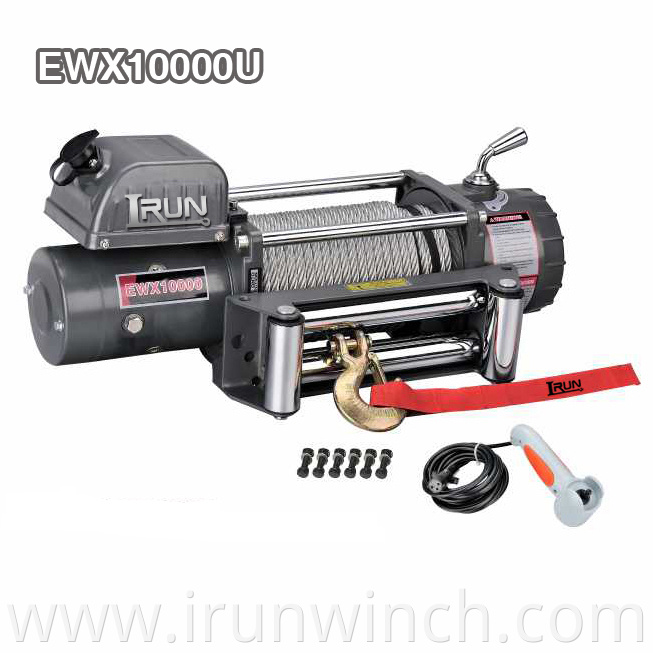

Electric Wireless Recovery Winches 10000lbs
EWX10000U
10000 lbs Electric Winch with a control box installed on Winch motor Item NO.EWX10000U. It is recommended as the classic 10000 pounds winchl of Recovery Winch EWX Series. This Series recovery winch features perfect efficiency ,stable pulling and compact design. The Patent three stage planetary gear reducer make winch be of extreme transmission efficiency and reliable safety operation.
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F tyoe fixed in control box
9. SWR tensioner available
Overall Dimensions：21.9″ x 6.3″ x 10.0″
(L x W x H) 557mm x 160mm x 254mm
Net Weight：40 KGS
EWX10000
| SPECIFICATION | |
| Rated line pull | 10000 lbs (4536 kgs) |
| Motor:Series Wound | 12V:Input: 4.3kW / 5.8hp; Output: 2.3kW / 3.1hp |
| 24V:Input: 5.9kW / 7.9hp; Output: 3.0kW /4.0hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø3/8 “×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8” (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 10000(4536) | 17.4(5.3) | |
| 0(0) | 20.7(6.3) | 25.9(7.9) | 80 | 70 | 2 | 7969(3615) | 39.4(12.0) |
| 4000(1814) | 12.5(3.8) | 13.5(4.1) | 230 | 150 | 3 | 6624(3005) | 65.0(19.8) |
| 7000(3175) | 9.5(2.9) | 10.8(3.3) | 290 | 200 | 4 | 5667(2571) | 85.3(26.0) |
| 10000(4536) | 6.2(1.9) | 8.5(2.6) | 360 | 245 | |||
| ITEM | EWX10000U | EWX10000S | EWX10000F |
| Overall dimensions | 21.9″×6.3″×10.0″ | 21.9″×6.3″×11.1″ | 21.9″×6.5″×9.9″ |
| (L×W×H) | 557mm×160mm×254mm | 557mm×160mm×283mm | 557mm×166mm×251mm |
| Net weight (Ibs) | 88.2 | 89.3 | 93.9 |
| (kgs) | 40.0 | 40.5 | 42.6 |
Looking for ideal 10000lb Recovery Electric Winches Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Wireless Recovery Winches are quality guaranteed. We are China Origin Factory of Electric Recovery Winch. If you have any question, please feel free to contact us.
