Electric Winch 11000 With Supper Power

Get Latest Price

Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,CFR,CIF
Transportation:	Ocean,Air
Port:	NINBO,SHANGHAI

Contact Now

Product Description

Product Attributes

Model No.: EWB11000

Brand: OEM ORDER ACCEPTABLE

Power Source: Electric

Application: Atv/Utv

Voltage: 24v, 12v

Packaging & Delivery

Selling Units	:	Bag/Bags
Package Type	:	EXPORT CARTON

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

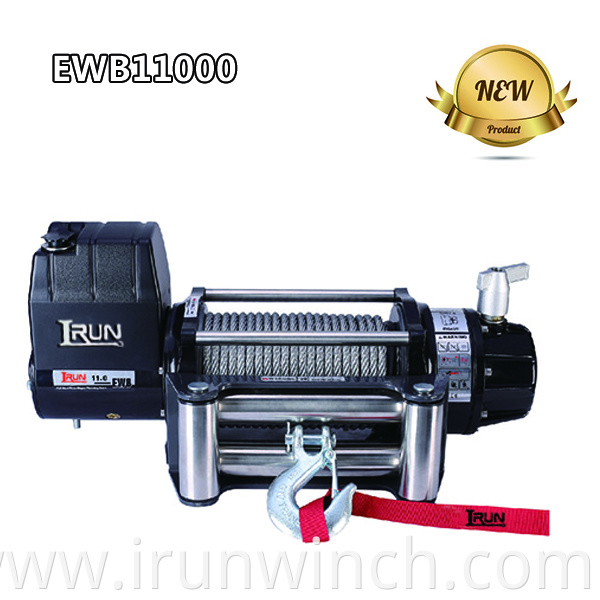

Electric Winch 11000 lbs For Jeep or Offroad Car With Supper Power

Electric Winch 11000lbs For Jeep of Offraod Car ITEM NO. ITEM NO. EWB11000 lbs

This winch has a rated line pull of 11000 lbs with a reliable performance, innovative brake. High-efficient transmission delivers high pull-in speed and low noise. All-stainless out-installed components ensure these winches work more durable.

Features:

All-new patented waterproof design meets IP67 standards.
Innovative brake inside the gearbox, offers excellent safe, reliable performance.
Stainless steel rotary clutch for smooth and convenient operations.
Stainless steel out-installed screws.
Exclusive brake design inside gearbox prevents rope damage with the drum over-hot after long-time operation.
Copper connection sealed control pack with elegant appearance.
High –efficient transmission delivers 9m/min pull-in speed and power saving.
Over-current protection available for safe winching.
Compression-resisted rubber hand remote control.

EWB 11000

Specification:
	Rated line pull	10000 lbs (4536 kg)
	Motor: Series wound	12V:Input: 4.3kW / 5.8hp
		Output: 2.3kW / 3.1hp
		24V:Input: 4.1kW /5.5hp
		Output: 3.0kW /4.0hp
	Gear reduction ratio	228:1
	Cable (Dia.× L)	Ø3/8″×85 ‘ (Ø9.2mm×26m)
	Drum size (Dia.× L)	Ø2.48 “×8.5 ” (Ø63mm×217 mm)
	Mounting bolt pattern	10 “×4.5 ” (254mm×114.3 mm) 4-M10

Pull Speed Amperes Volts First layer					Line Pull And Rope Capacity In Layer
Line Pull Lbs. (kg)	Line Speed Ft/min (m/min)		Current A			Layer of cable	Rated line pull Lbs. (kg)	Total Rope On Drum ft (m)
	12V DC	24V DC	12V DC	24V DC		1	11000(4990)	17.4(5.3)
0	32.8 (10.0)	34.8 (10.6)	75	50		2	8776(3967)	39.4(12.0)
3000(1361)	15.4 (4.7)	17.1 (5.2)	160	80		3	7286(3305)	65.0(19.8)
9000(4082)	7.2 (2.2)	9.8 (3.0)	320	150		4	6233(2867)	85.3(26.0)
11000(4990)	5.6 (1.7)	6.9 (2.1)	360	170

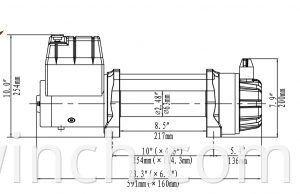

ITEM	EWB 11000U	EWB 11000F
Overall dimensions	23.3″×6.3″×10.0″	23.3″×6.3″×9.8″
(L×W×H)	591mm×160mm×254mm	591mm×160mm×248mm
Net weight (Ibs/kg)	84.9lbs / 38.5kg	89.3lbs / 40.5kg
