Model No.: EWP4500A
Brand: OEM ORDER ACCEPTABLE
Power Source: Electric
Application: Atv/Utv
Voltage: 24v, 12v
| Selling Units | : | Bag/Bags |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

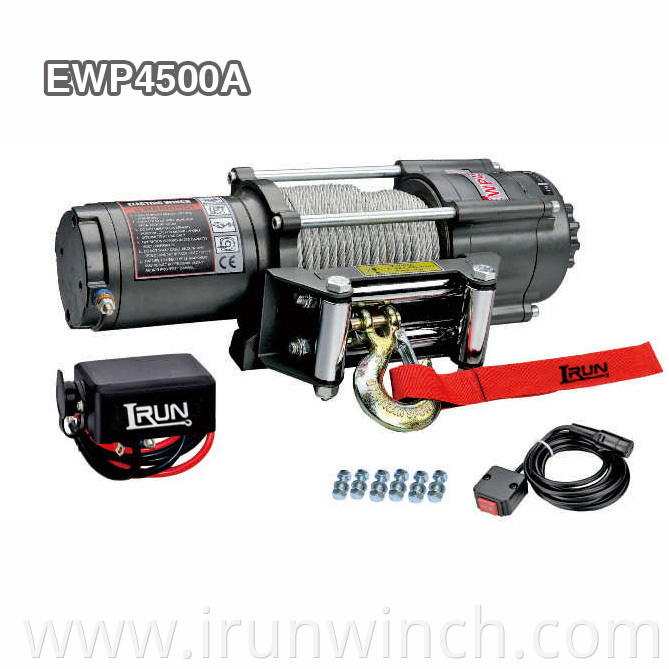

EWP4500A
4500 lbs Electric Recovery Winch with a control box tied on winch bar Item NO. EWP4500A . It’s your wise option on high performance 4500 pounds electric recovery winch .It’s as a 4500 pounds repersentive winch of EWP Series with these advantages perfect efficiency ,stable pulling and compact design. This Series winches have ourself patent design three stage planetary gear reducer making winches be of extreme transmission efficiency and reliable safety operation
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Short Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F type fixed in control box
9. SWR tensioner available
EWP4500
| SPECIFICATION | |
| Rated line pull | 4500 lbs (2041 kgs) |
| Motor: permanent magnet | 12V:Input: 2.5kW / 3.4hp; Output: 1.1 kW/1.4hp |
| 24V:Input: 2.6kW / 3.5hp; Output: 1.2kW/1.5hp | |
| Gear reduction ratio | 166:1 |
| Cable (Dia.× L) | Ø 15/64″×47.6′ (Ø6mm×14.5m) |
| Drum size (Dia.× L) | Ø 2.0″×4.9″ (Ø50.4mm×125mm) |
| Mounting bolt pattern | 6.6″×3″ (168mm×76.2mm)4-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 4500(2041) | 12.2(3.7) | |
| 0 | 12.8(3.9) | 13.2(4.0) | 28 | 14 | 2 | 3841(1742) | 26.2(8.0) |
| 1000(454) | 9.8(3.0) | 10.9(3.3) | 80 | 50 | 3 | 3310(1501) | 41.9(12.8) |
| 2000(907) | 8.5(2.6) | 9.4(2.9) | 120 | 70 | 4 | 2907 (1319) | 47.6(14.5) |
| 3000(1361) | 6.9(2.1) | 7.6(2.3) | 160 | 95 | |||
| 4500(2041) | 4.6(1.4) | 5.5(1.6) | 220 | 110 | |||
| ITEM | EWP4500D | EWP4500A | EWP4500U |
| Overall dimensions | 16.38″×4.92″×4.85″ | 16.38″×4.92″×4.85″ | 16.46″×4.92″×6.6″ |
| (L×W×H) | 416mm ×125mm ×123 mm | 416mm ×125mm ×123 mm | 418mm ×125mm ×168 mm |
| Net weight (Ibs) | 33.3 | 34.2 | 34.2 |
| (kgs) | 15.1 | 15.5 | 15.5 |

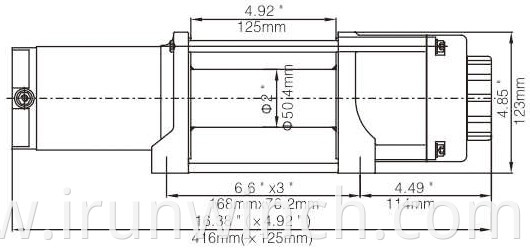

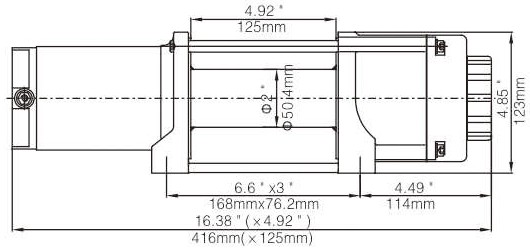

Overall dimensions: 16.38″x4.92″x4.85″
(LxWxH) 416mmx125mmx134mm
Net Weight: 15.5 KGS
