Model No.: EWP2500U
Brand: OEM ORDER ACCEPTABLE
Power Source: Electric
Application: Atv/Utv
Voltage: 24v, 12v
| Selling Units | : | Bag/Bags |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

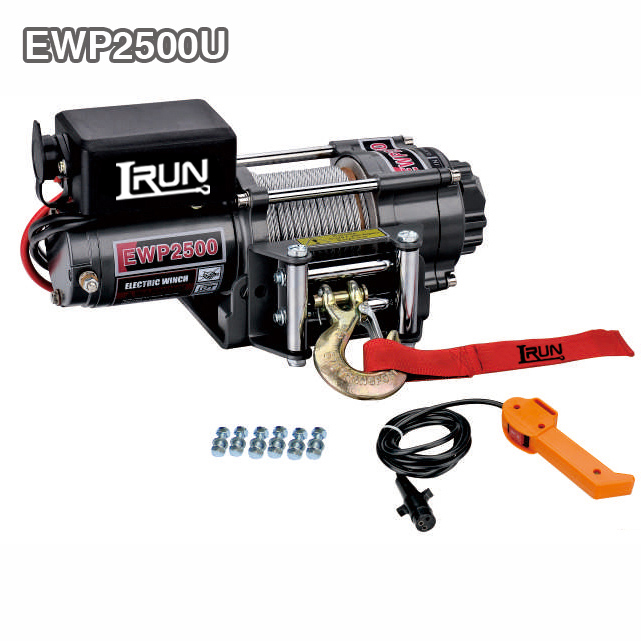

This 2500LB ATV winch is specially designed for all-terrain vehicles (ATVs). Despite its compact size, it contains tremendous power. The wireless remote control function that comes with it is a major highlight. It enables you to operate it easily from a safe distance without getting close to the winch. Whether it's the flexible self-rescue during solo off-road adventures or the efficient rescue in team collaboration, it can handle them all with ease. On the off-road journey, it is like a professional Offroad Winches. Facing rough mountain roads and muddy swamps, with a pulling force of 2500LB, it helps your ATV easily overcome obstacles. When the vehicle accidentally gets into trouble, it quickly transforms into a reliable Recovery Winches, pulling the vehicle out of the dangerous situation with a stable pulling force, turning every crisis into safety.
Features:
1. Free steel reducer gear
2. Patent clutch structure
3. Free spooling clutch
4. Automatic screw cone braking action
5. DC 12V or DC 24V Power drive optional
6. High crrunt working switch control directly
7. ATV handlebar switch control
8. Control box detchable fixing optional
9. Control box separate fixing optional
10. Remote control through control box and switch
11. Wireless remote control available
EWP2500
| SPECIFICATION | |
| Rated line pull | 2500 lbs (1134 kgs) |
| Motor: permanent magnet | 12V:Input: 1.9 kW/ 2.6hp; Output: 0.8 kW/1.1hp |
| 24V:Input: 2.4 kW/ 3.2hp; Output: 0.9 kW/1.2hp | |
| Gear reduction ratio | 170:1 |
| Cable (Dia.× L) | Ø3/16″×45.9′ (Ø 4.8mm×14.0m) |
| Drum size (Dia.× L) | Ø1.46″×3.15″ (Ø 37mm×80 mm) |
| Mounting bolt pattern | 3.13″ (79.5 mm) 2-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 2500(1134) | 6.9(2.1) | |
| 0 | 14.1(4.3) | 10.5(3.2) | 20 | 16 | 2 | 2033(922) | 15.1(4.6) |
| 500(227) | 9.8(3.0) | 10.2(3.1) | 55 | 35 | 3 | 1713(777) | 24.3(7.4) |
| 1500(680) | 7.5(2.3) | 9.2(2.8) | 95 | 65 | 4 | 1480(671) | 34.1(10.4) |
| 2500(1134) | 4.3(1.3) | 8.2(2.5) | 160 | 100 | 5 | 1303(591) | 45.9(14.0) |
| ITEM | EWP2500D | EWP2500A | EWP2500U |
| Overall dimensions | 12.7″×4.5″×4.4″ | 12.7″×4.5″×4.4″ | 13.2″×4.5″×6.5″ |
| (L×W×H) | 323mm×113mm×112 mm | 323mm×113mm×112 mm | 335mm×113mm×165 mm |
| Net weight (Ibs) | 19.8 | 20.5 | 20.5 |
| (kgs) | 9.0 | 9.3 | 9.3 |

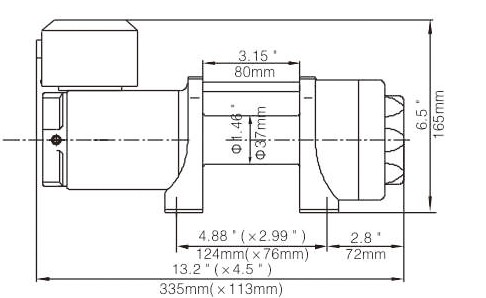

Overall dimensions: 13.2″x4.5″x6.5″
(LxWxH) 335mmx113mmx165mm
Net Weight: 9.3 KGS
