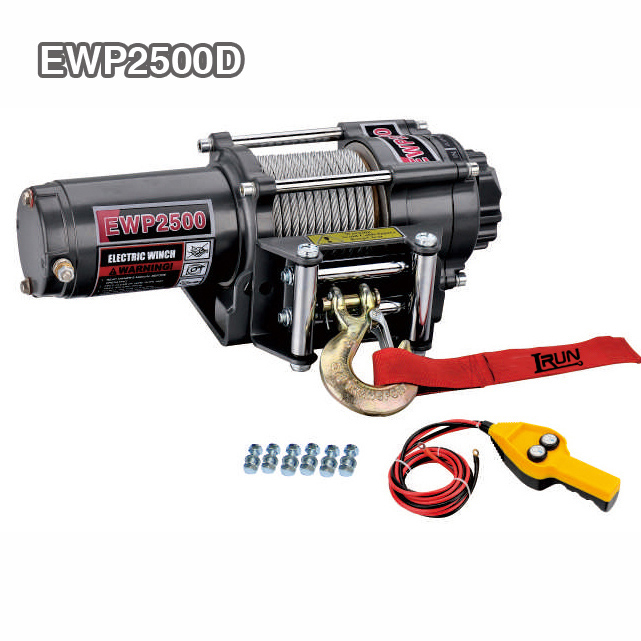

Model No.: EWP2500D
Brand: OEM ORDER ACCEPTABLE
Power Source: Electric
Application: Atv/Utv
Voltage: 24v, 12v
| Selling Units | : | Bag/Bags |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
In the arena of mechanical power, Hydraulic Winches, with the powerful force of the hydraulic system, has become the core force in heavy engineering operations. With its robust and durable quality, Industrial Winches stands firm in the arduous tasks of factory workshops. The Hydraulic 4wd Winches, with its outstanding all-terrain adaptability, can gallop freely in complex terrains. The Pro Series 2500LB ATV Winch, as a professional all-terrain vehicle Winch, deeply integrates the adventurous spirit of Offroad Winches and the rescue wisdom of Recovery Winches, paired with all-round Winch Accessories, Bring a professional and reliable new off-road experience to ATV drivers.
When you drive the ATV into the unknown wilderness, the Pro Series 2500LB ATV Winch is like a professional off-road partner, transforming into a powerful Off-Road Winches. With a stable pulling force of 2500LB, it can easily handle complex terrains such as mud and steep slopes, helping the vehicle overcome obstacles and explore deeper landscapes. If the ATV unfortunately gets into trouble, it will quickly switch to the Recovery Winches mode. With precise pull control, it will methodically rescue the trapped vehicle from the mud and sand, ensuring that every crisis can be safely resolved.
The performance of this professional-grade winch is not limited to off-road scenarios. In small-scale Industrial operations, it can work side by side with light Industrial Winches to complete the towing and transportation of equipment. Facing the diverse terrain, its adaptability can be comparable to that of the Hydraulic 4Wd Winches, enhancing the off-road capability of the ATV in different environments. It is worth mentioning that the accompanying Winch Accessories add a lot of charm to the product. High-toughness and low-ductility synthetic fiber traction ropes ensure strong tensile force while reducing weight. The ergonomically designed remote control is easy to operate and has a stable signal. The winch casing with excellent protective performance effectively resists the intrusion of dust, rain and gravel. These elaborately designed accessories work closely with the winch to ensure that the entire system can operate stably and perform at its best under all kinds of harsh conditions. Choosing the Pro Series 2500LB ATV Winch means choosing a professional, reliable and all-round off-road guarantee, making every all-terrain vehicle journey of yours full of confidence and composure.
Features:
1. Free steel reducer gear
2. Patent clutch structure
3. Free spooling clutch
4. Automatic screw cone braking action
5. DC 12V or DC 24V Power drive optional
6. High crrunt working switch control directly
7. ATV handlebar switch control
8. Control box detchable fixing optional
9. Control box separate fixing optional
10. Remote control through control box and switch
11. Wireless remote control available
EWP2500
| SPECIFICATION | |
| Rated line pull | 2500 lbs (1134 kgs) |
| Motor: permanent magnet | 12V:Input: 1.9 kW/ 2.6hp; Output: 0.8 kW/1.1hp |
| 24V:Input: 2.4 kW/ 3.2hp; Output: 0.9 kW/1.2hp | |
| Gear reduction ratio | 170:1 |
| Cable (Dia.× L) | Ø3/16″×45.9′ (Ø 4.8mm×14.0m) |
| Drum size (Dia.× L) | Ø1.46″×3.15″ (Ø 37mm×80 mm) |
| Mounting bolt pattern | 3.13″ (79.5 mm) 2-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 2500(1134) | 6.9(2.1) | |
| 0 | 14.1(4.3) | 10.5(3.2) | 20 | 16 | 2 | 2033(922) | 15.1(4.6) |
| 500(227) | 9.8(3.0) | 10.2(3.1) | 55 | 35 | 3 | 1713(777) | 24.3(7.4) |
| 1500(680) | 7.5(2.3) | 9.2(2.8) | 95 | 65 | 4 | 1480(671) | 34.1(10.4) |
| 2500(1134) | 4.3(1.3) | 8.2(2.5) | 160 | 100 | 5 | 1303(591) | 45.9(14.0) |
| ITEM | EWP2500D | EWP2500A | EWP2500U |
| Overall dimensions | 12.7″×4.5″×4.4″ | 12.7″×4.5″×4.4″ | 13.2″×4.5″×6.5″ |
| (L×W×H) | 323mm×113mm×112 mm | 323mm×113mm×112 mm | 335mm×113mm×165 mm |
| Net weight (Ibs) | 19.8 | 20.5 | 20.5 |
| (kgs) | 9.0 | 9.3 | 9.3 |
Overall dimensions: 12.7″x4.5″x4.4″
(LxWxH) 323mmx113mmx112mm
Net Weight: 9.0 KGS
