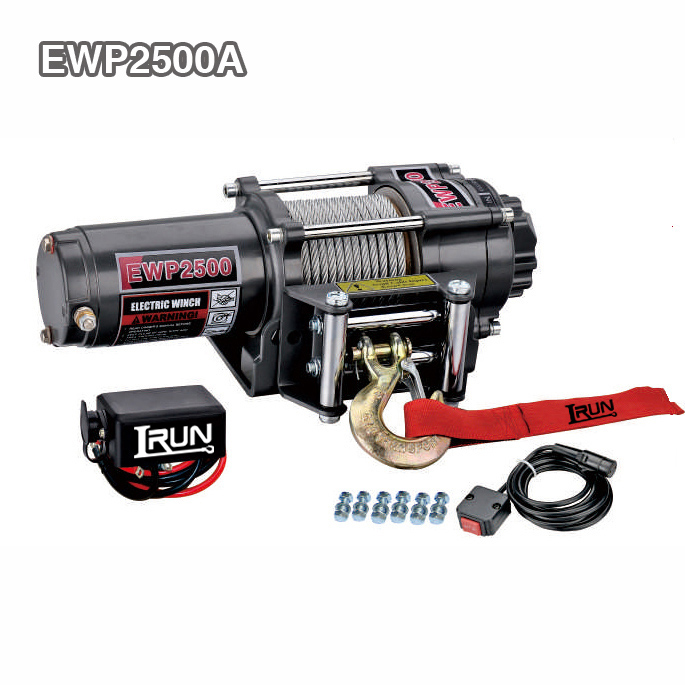

Model No.: EWP2500A
Brand: OEM ORDER ACCEPTABLE
Power Source: Electric
Application: Atv/Utv
Voltage: 24v, 12v
| Selling Units | : | Bag/Bags |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
In the world of mechanical traction, Hydraulic Winches demonstrate industrial-grade strength with powerful Hydraulic power. Industrial Winches show the characteristics of stability and durability in heavy-duty operations. Hydraulic 4wd Winches move freely in mud and rough terrain. Offroad Winches are the powerful assistants for off-road enthusiasts to conquer the wilderness, Recovery Winches are the lifesaver when the vehicle is in trouble, and Winch Accessories further enhance the perfect performance of the winch. Nowadays, the 2500LB Electric Winch, specifically designed for all-terrain vehicles (ATVs), has emerged. With its outstanding performance and innovative design, it redefines the infinite possibilities of ATV off-roading.
This 2500LB electric winch is specially designed for ATVs. Despite its compact body, it boasts an astonishing pulling force of 2,500 pounds. Whether it's traversing mountain roads strewn with gravel or challenging swamps with severe water accumulation, it can, like a professional Off-Road Winches, rely on its powerful engine to help the ATV easily overcome obstacles and forge ahead bravely. When the ATV accidentally gets stuck in a mud pit or sand, it instantly transforms into a reliable Recovery Winches, applying precise and stable force to safely tow the vehicle out of the predicament, ensuring that every off-road adventure turns danger into safety.
When facing the equipment traction requirements in some small-scale Industrial scenarios, the 2500LB Electric Winch for ATV is no less impressive. It can rival small Industrial Winches and complete the displacement work of light equipment with reliable performance. In complex and changeable terrains, its demonstrated adaptability is comparable to that of Hydraulic 4Wd Winches, further enhancing the off-road capability of all-terrain vehicles. In addition, all the Winch Accessories are available. The high-strength wear-resistant traction rope can withstand extreme tensile force. Intelligent remote control, enabling convenient operation from a distance. Protective winch cover, effectively resisting the erosion of the winch by harsh environments. Each accessory undergoes strict quality control and works perfectly with the winch to ensure its stable and efficient operation under all kinds of extreme conditions. Choosing the 2500LB Electric Winch for ATV means choosing a professional off-road solution specifically designed for ATVs, making your all-terrain vehicle journey full of passion and peace of mind.
Features:
1. Free steel reducer gear
2. Patent clutch structure
3. Free spooling clutch
4. Automatic screw cone braking action
5. DC 12V or DC 24V Power drive optional
6. High crrunt working switch control directly
7. ATV handlebar switch control
8. Control box detchable fixing optional
9. Control box separate fixing optional
10. Remote control through control box and switch
11. Wireless remote control available
EWP2500
| SPECIFICATION | |
| Rated line pull | 2500 lbs (1134 kgs) |
| Motor: permanent magnet | 12V:Input: 1.9 kW/ 2.6hp; Output: 0.8 kW/1.1hp |
| 24V:Input: 2.4 kW/ 3.2hp; Output: 0.9 kW/1.2hp | |
| Gear reduction ratio | 170:1 |
| Cable (Dia.× L) | Ø3/16″×45.9′ (Ø 4.8mm×14.0m) |
| Drum size (Dia.× L) | Ø1.46″×3.15″ (Ø 37mm×80 mm) |
| Mounting bolt pattern | 3.13″ (79.5 mm) 2-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 2500(1134) | 6.9(2.1) | |
| 0 | 14.1(4.3) | 10.5(3.2) | 20 | 16 | 2 | 2033(922) | 15.1(4.6) |
| 500(227) | 9.8(3.0) | 10.2(3.1) | 55 | 35 | 3 | 1713(777) | 24.3(7.4) |
| 1500(680) | 7.5(2.3) | 9.2(2.8) | 95 | 65 | 4 | 1480(671) | 34.1(10.4) |
| 2500(1134) | 4.3(1.3) | 8.2(2.5) | 160 | 100 | 5 | 1303(591) | 45.9(14.0) |

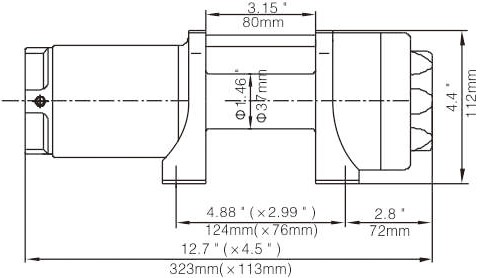

| ITEM | EWP2500D | EWP2500A | EWP2500U |
| Overall dimensions | 12.7″×4.5″×4.4″ | 12.7″×4.5″×4.4″ | 13.2″×4.5″×6.5″ |
| (L×W×H) | 323mm×113mm×112 mm | 323mm×113mm×112 mm | 335mm×113mm×165 mm |
| Net weight (Ibs) | 19.8 | 20.5 | 20.5 |
| (kgs) | 9.0 | 9.3 | 9.3 |
Overall dimensions: 12.7″x4.5″x4.4″
(LxWxH) 323mmx113mmx112mm
Net Weight: 9.3 KGS
