Model No.: EWXC9500
Brand: OEM ORDER ACCEPTABLE
Power Source: Electric
Application: Auto
Voltage: 24v, 12v

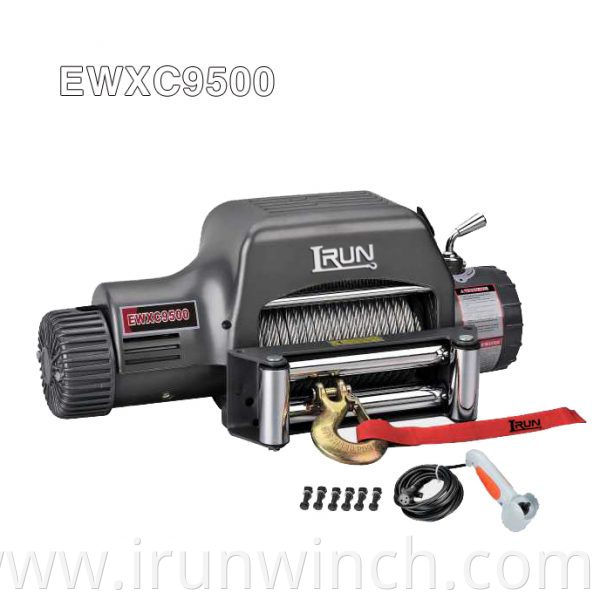

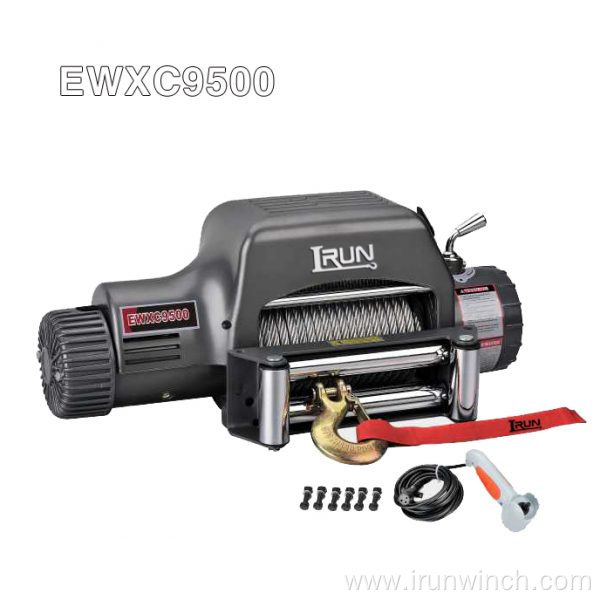

Fast Line Speed 9500lb Reovery Winch With Stand-Up Control Box
EWXC9500
Fast Speed Line 9500 lbs Electric Winch
If you want a fast speed line winch , our Model NO. EWXC9500 is your sensible option.
It also belongs to our recovery Offroad Winch EWX Series which features perfect efficiency ,stable pulling and compact design. This Series winches have ourself patent design three stage planetary gear reducer making winches be of extreme transmission efficiency and reliable safety operation.
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. DC12V OR 24V Power drive optional
6. Remote control through control box and switch
7. Wireless remote control and SWR tensioner available
8. Fast Line speed winch
EWXC9500
| SPECIFICATION | |
| Rated line pull | 9500 lbs (4309 kgs) |
| Motor: Series Wound | 12V:Input: 6.4 kW / 8.6hp; Output: 2.8kW / 3.8hp |
| 24V:Input: 8.0 kW / 10.7hp; Output: 3.5kW /4.7hp | |
| Gear reduction ratio | 130:1 |
| Cable (Dia.× L) | Ø3/8″×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 9500(4309) | 17.4(5.3) | |
| 0(0) | 49.9(15.3) | 53.1(16.2) | 80 | 45 | 2 | 7706(3495) | 39.4(12.0) |
| 1000(454) | 42.7(13.0) | 49.2(15.0) | 150 | 100 | 3 | 6482(2940) | 65.0(19.8) |
| 4000(1814) | 17.1(5.2) | 18.4(5.6) | 300 | 175 | 4 | 5593(2537) | 85.3(26.0) |
| 6000(2722) | 11.8(3.6) | 15.7(4.8) | 400 | 230 | |||
| 8000(3629) | 9.5(2.9) | 13.1(4.0) | 470 | 300 | |||
| 9500(4309) | 8.9(2.7) | 11.8(3.6) | 530 | 335 | |||
| ITEM | EWXC9500 | ||
| Overall dimensions | 23.2″×6.5″×9.9″ | ||
| (L×W×H) | 589mm×166mm×251mm | ||
| Net weight (Ibs) | 96.6 | ||
| (kgs) | 43.8 |
Overall Dimensions：23.2″ x 6.5″ x 9.9″
(L x W x H) 589mm x 166mm x 251mm
Net Weight：43.8 KGS
