Model No.: EWX12000S
Brand: OEM ORDER ACCEPTABLE
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Package Type | : | EXPORT |
The file is encrypted. Please fill in the following information to continue accessing it
Electric Recovery Winches 12000 lb With Patent Design Three Stage Planetary Gear
EWX12000S

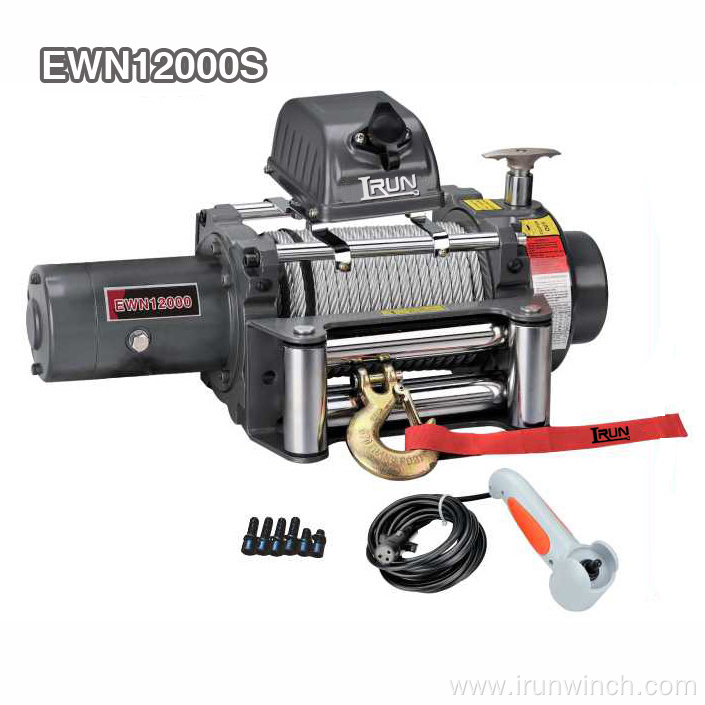

12000 lbs Electric Winch with control box tied on winch bar Model No. EWX 12000S
Our Recovery Winch EWX Series features perfect efficiency ,stable pulling and compact design. The Patent three stage planetary gear reducer make winch be of extreme transmission efficiency and reliable safety operation. EWX12000S is a good choice of 12000lbs pounds recovery Offroad Winch.
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F tyoe fixed in control box
9. SWR tensioner available
EWX12000
| SPECIFICATION | |
| Rated line pull | 12000 lbs (5443 kgs) |
| Motor: Series Wound | 12V:Input: 5.4 kW / 7.2hp; Output: 2.7kW / 3.6hp |
| 24V:Input: 5.3 kW / 7.1hp; Output: 3.3 kW /4.4hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø13/32 “×83.7 ‘ (Ø10.2mm×25.5m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 12000(5443) | 16.1 (4.9) | |
| 0(0) | 22.3(6.8) | 23.0(7.0) | 100 | 60 | 2 | 9563(4338) | 36.4 (11.1) |
| 4000(1814) | 13.1(4.0) | 13.8(4.2) | 220 | 130 | 3 | 7948(3605) | 60.0(18.3) |
| 8000(3629) | 9.8(3.0) | 10.8(3.3) | 330 | 170 | 4 | 6800(3084) | 83.7(25.5) |
| 12000(5443) | 5.8(1.8) | 7.5(2.3) | 450 | 220 | |||
| ITEM | EWX12000U | EWX12000S | EWX12000F |
| Overall dimensions | 22.8″×6.3″×10.0″ | 22.8″×6.3″×11.1″ | 23.2″×6.5″9.9″ |
| (L×W×H) | 579mm×160mm×254mm | 579mm×160mm×283mm | 579mm×160mm×283mm |
| Net weight (Ibs) | 92.6 | 93.3 | 96.6 |
| (kgs) | 42.0 | 42.3 | 43.8 |
Overall Dimensions：22.8″ x 6.3″ x 10.7″
(L x W x H) 579mm x 160mm x 272mm
Net Weight：42.3 KGS
