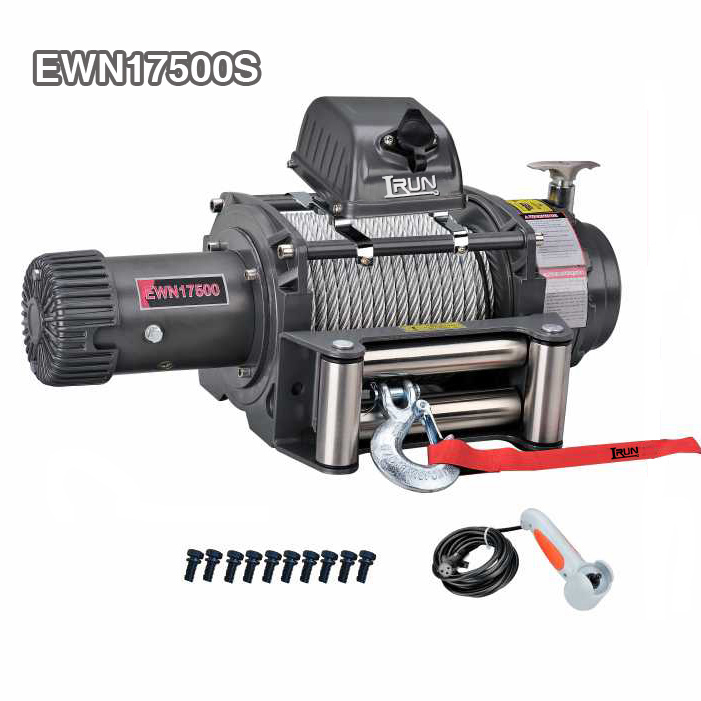

Electric Heavy duty Truck Trailer Winch  17500 Lb

In the professional landscape of Winches, Hydraulic Winches demonstrates heavy-duty capabilities with Hydraulic power, Industrial Winches supports the operation of production lines with industrial-grade standards, and Hydraulic 4wd Winches injects terrain-conquering power into four-wheel drive off-roading. Offroad Winches safeguards outdoor adventures with a lightweight design - and our EWN17500S 17,500-pound Electric Trailer Winch (model EWN17500S), as a classic representative of the Recovery Winches series, It is redefining the efficiency boundaries of heavy-duty traction with patented technologies.

A patent-driven heavy-duty performance revolution

Equipped with a patented all-steel three-stage planetary gear reducer, the EWN17500S deeply integrates the wear-resistant craftsmanship of Industrial Winches with the demands of off-road rescue

17,500 pounds peak pull: Surpassing the conventional Off-Road Winches' pull threshold by three times, it can easily tow recreational vehicles, heavy engineering equipment, and even serve as a light lifting task for Industrial Winches.

96% transmission efficiency: The patented gear set improves energy efficiency by 30% compared to the traditional winch. Combined with the strong magneto motor, it achieves a rope retraction speed of 5.2m/min. In harsh scenarios such as mudflats/rocks, the operation efficiency is 25% higher than that of Hydraulic 4Wd Winches.

Military-grade safety braking: Heavy-duty automatic spiral cone braking system, no attenuation after 1000 consecutive heavy-load tests, locking accuracy reaches ±0.15 meters, safety exceeds 90% of Recovery Winches on the market.

A full-scenario compatible accessory ecosystem

Each EWN17500S comes standard with an industrial-grade Winch Accessories matrix

18-meter galvanized steel cable + alloy rope guide: Tensile strength up to 2000MPa, compatible with the same high-strength shackle as Hydraulic Winches (safety factor 3:1);

IP67 waterproof control box: Supports wireless remote control module (optional), enabling 50-meter remote control in an environment ranging from -40℃ to 80℃, with performance approaching the extreme environmental adaptability of Hydraulic 4Wd Winches.

Quick-install bracket system: The modular design increases installation efficiency by 60% compared to traditional Industrial Winches, and the trailer bar integration can be completed in just 10 minutes.

Practical verification under harsh working conditions

In the Siberian permafrost rescue, its response speed (starting in 0.3 seconds) exceeded the Hydraulic lag of Hydraulic Winches. In Australian mines, the durability of continuous 24-hour operation without interruption has overturned the industry's perception of Electric Winches. The unique "three highs and one long" advantages of the EWN series (high load/high efficiency/high protection + long service life) make it:

The core equipment of professional rescue fleets - reduces rescue time by 40% compared with traditional Recovery Winches;

The mobility of engineering infrastructure projects - through the full-cycle load test of Industrial Winches (30 days of continuous operation);

The ultimate guarantee for extreme off-road players - The IP68 motor water resistance rating can handle operations in deep water up to 1.5 meters, and its performance is fully comparable to the terrain adaptability of Hydraulic 4Wd Winches.

When the complex maintenance of Hydraulic Winches and the performance limitations of off-road Winches are hard to balance, the EWN17500S offers an "electric heavy-duty" solution, perfectly integrating 17,500 pounds of powerful pulling force with intelligent control. Paired with the exclusive Winch Accessories ecosystem, it redefines the value standards of Heavy-Duty Winches in rescue and engineering scenarios with patented technology, ranging from polar scientific research to tropical engineering.

Features:

1. Full steel reducer gear

2. Free free spooling clutch

3. Automatic screw cone braking action

4. Series wound motor.

5. Runva patent tree stage planetary gear reducer.

6. Sepcially designed shape for convenience of installation and good looking.

7. Remote control through control box and switch

8. Wireless remote control available

9. DC 12V or DC 24V Power drive optional

10. Heavy duty design

11. Standard 4-way roller fairlead

12. Clevis pinned/latched hook

Rated line pull 17500 lbs(7938 kgs)

Motor: permanent magnet 12V:Input: 5.4kW / 7.2hp;Output: 2.9 kW /3.9hp

24V:Input: 6.0kW /8.0hp;Output: 3.1 kW /4.1hp

Gear reduction ratio 430:1

Cable (Dia.× L) Ø15/32 “×87 ‘ (Ø12mm×26.5m)

Drum size (Dia.× L) Ø3.5 “×8. 6” (Ø89mm×219mm)

Mounting bolt pattern 10 “×4.5 ” (254mm×114.3mm) /10 “×6.5 ” (254mm×165.1mm) 8-M12

Overall dimensions (L×W×H) 24.4″×8.4″×12.6″(620mm×214mm×321mm)

Net weight Ibs (kgs) 148.4(67.3)

EWN17500

Overall Dimensions 24.4″ x 8.4″ x 12.6″
(L x W x H) 620mm x 214mm x 321mm

Net Weight 67.3 KGS
