Model No.: EWX9500S
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

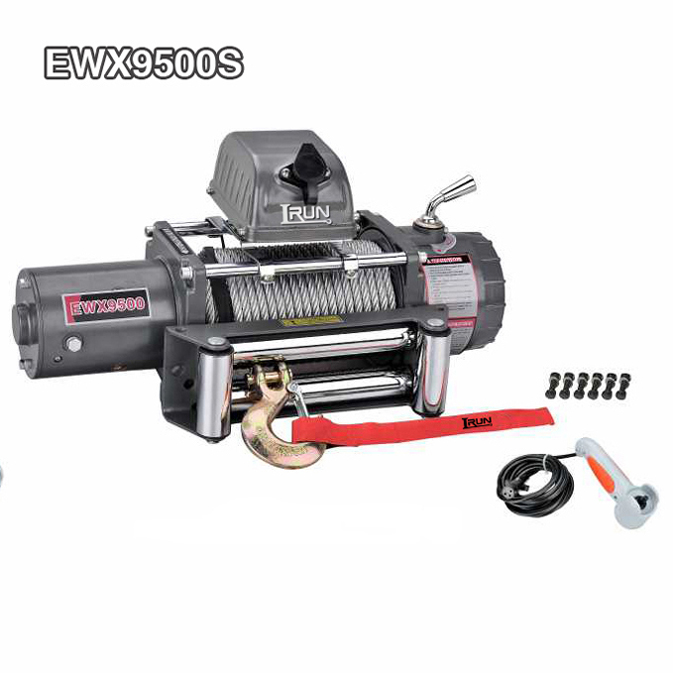

X Series DC 12V/24V Electric Self Recovery Trailer Winches 9500lbs
In the winch, Hydraulic Winches cope with heavy loads with powerful force, Industrial Winches stick to industrial operations with sturdy and durable quality, and Hydraulic 4wd Winches conquer complex terrains with the characteristics of four-wheel drive. Offroad Winches are reliable companions for off-road enthusiasts to challenge their limits, while Recovery Winches are a solid backing in emergency rescue moments. Item No. EWX9500S, this 9500 lbs electric self-recovery Trailer Winch ingeniously ties the control box to the winch rod. As an outstanding representative of the EWX series Recovery Winches, it redefines the outstanding performance of trailer winches with perfect efficiency, stable traction and compact design!
The EWX9500S has a powerful pulling force of 9,500 pounds. Whether it is a trailer stuck in the mud or a vehicle trapped in the wilderness, it can quickly carry out self-rescue or rescue, perfectly demonstrating the efficient rescue capabilities of Recovery Winches. Compared with the complex Hydraulic system and high maintenance cost of Hydraulic Winches, it adopts electric drive, is simple and intuitive to operate, and has a sensitive response. Meanwhile, inheriting the durable genes of Industrial Winches, the precisely manufactured body and transmission structure ensure stability and reliability even under high-intensity use.
The patented three-stage planetary gear reducer endows the EWX9500S with extremely high transmission efficiency and safety performance, ensuring precise and stable traction every time. Meanwhile, it is also equipped with professional Winch Accessories such as high-strength steel wire ropes and convenient control components, providing a one-stop solution from operation to traction. Whether challenging extreme off-road conditions with Offroad Winches or cooperating with Hydraulic 4Wd Winches to cope with harsh environments, the EWX9500S can stand out with its unique control box design, outstanding performance and extremely high cost performance. Become a reliable professional equipment in scenarios such as towing rescue and off-road support, and safeguard every adventure with its hardcore strength!
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Short Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F type fixed in control box
9. SWR tensioner available
EWX9500
| SPECIFICATION | |
| Rated line pull | 9500 lbs (4309 kgs) |
| Motor: Series Wound | 12V:Input: 4.6kW / 6.1hp; Output: 2.1kW / 2.8hp |
| 24V:Input: 6.5kW / 8.7hp; Output: 2.8kW / 3.8hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø3/8″×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 9500(4309) | 17.4(5.3) | |
| 0 | 19.7 (6.0) | 22.3 (6.8) | 80 | 70 | 2 | 7706(3495) | 39.4(12.0) |
| 3000(1361) | 12.5 (3.8) | 16.4(5.0) | 170 | 140 | 3 | 6482(2940) | 65.0(19.8) |
| 6000(2722) | 9.8(3.0) | 12.8 (3.9) | 260 | 210 | 4 | 5593(2537) | 85.3(26.0) |
| 9500(4309) | 6.2(1.9) | 9.5(2.9) | 380 | 270 | |||
| ITEM | EWX9500U | EWX9500S | EWX9500F |
| Overall dimensions | 21.3″×6.3″×10.0″ | 21.3″×6.3″×11.1″ | 21.3″×6.3″×9.9″ |
| (L×W×H) | 292mm×113mm×108mm | 292mm×113mm×108mm | 308mm×113mm×150mm |
| Net weight (Ibs) | 80.7 | 81.7 | 86.5 |
| (kgs) | 36.6 | 37.1 | 39.2 |
Overall Dimensions：21.3″ x 6.3″ x 10.7″
(L x W x H) 540mm x 160mm x 272mm
Net Weight：37.1 KGS
