Model No.: EWG9000S
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

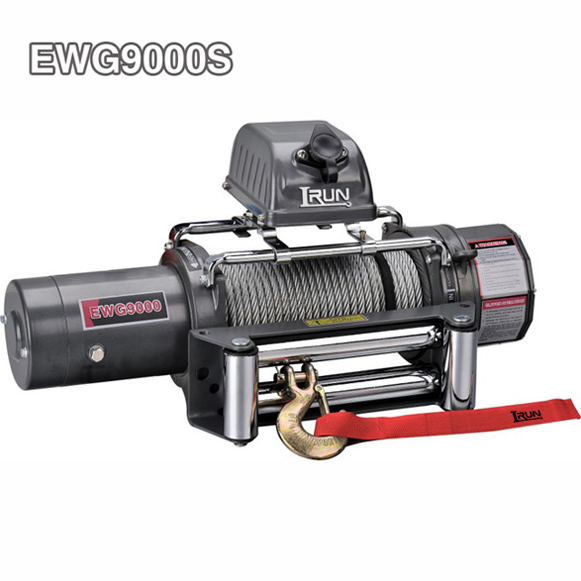

In the diverse world of Winches, Hydraulic Winches carries heavy operations with powerful power, Industrial Winches serves the industrial front line with solid reliability, and Hydraulic 4wd Winches traverses difficulties and obstacles with the advantage of four-wheel drive. Offroad Winches are powerful assistants for off-road enthusiasts to conquer the wilderness, while Recovery Winches take on the responsibility of rescue in critical moments. The 9000 lbs Electric Trailer Winch Item No. EWG9000S, with its outstanding performance, stable quality and affordable price, is specially designed for off-road vehicles and Jeeps, and has become a standout choice in the market!
The EWG9000S ingeniously installs the control box on top of the winch motor, saving space while making operation more convenient and intuitive. With a powerful pulling force of 9,000 pounds, it is sufficient to handle common scenarios where vehicles get stuck during off-road driving. Whether it is deeply trapped in sand or stuck in mud, it can quickly carry out rescue operations, demonstrating the efficient rescue capabilities of Recovery Winches. Compared with the complex Hydraulic system and high maintenance cost of Hydraulic Winches, it adopts electric drive, is simple and easy to operate, and does not require cumbersome maintenance. Meanwhile, inheriting the durable characteristics of Industrial Winches, the precisely manufactured body and transmission components ensure stable performance even during frequent use.
This Winch not only has outstanding performance but also is equipped with high-strength steel wire ropes, practical control components and other Winch Accessories, providing all-round support for rescue operations. Whether challenging rough mountain roads side by side with Offroad Winches or cooperating with Hydraulic 4Wd Winches to deal with complex terrains, the EWG9000S can stand out with its stable performance and high cost performance, becoming a reliable partner for off-road enthusiasts and rescue workers. Offer professional-level rescue support at an affordable price!
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWG9000S
| SPECIFICATION | |
| Rated line pull | 9000 lbs (4082 kgs) |
| Motor: permanent magnet | 12V:Input: 3.4kW / 4.6hp; Output: 2.7kW / 3.6hp 24V:Input: 4.3kW / 5.8hp; Output: 3.0kW /4.0hp |
| Gear reduction ratio | 294:1(12V); 210:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48″×8.9 ” (Ø63mm×227 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 9000(4082) | 19.7 (6.0) | |
| 0(0) | 17.1(5.2) | 23.0(7.0) | 80 | 50 | 2 | 7350 (3334) | 42.7 (13.0) |
| 2000(907) | 10.8(3.3) | 14.8(4.5) | 120 | 75 | 3 | 6200(2812) | 68.9(21.0) |
| 4000(1814) | 7.9 (2.4) | 10.5(3.2) | 170 | 115 | 4 | 5400 (2449) | 95.1(29.0) |
| 6000(2722) | 6.2 (1.9) | 8.2(2.5) | 220 | 145 | |||
| 9000(4082) | 4.9(1.5) | 6.6 (2.0) | 280 | 180 | |||
| ITEM | EWG9000U | EWG9000S | EWG9000F |
| Overall dimensions | 22.4″×7.1″×9.6″ 570mm×180mm×243mm | 22.4″×7.1″×11.7″ 570mm×180mm×297mm | 22.4″×7.1″×10.6″ 570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 73.8 33.8 | 75.0 34.0 | 75.3 34.2 |
| (kgs) |
Overall Dimensions：22.4″ x 7.1″ x 11.7″
(L x W x H) 570mm x 180mm x 297mm
Net Weight： 34.0 KGS
