Model No.: EWX10000U
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

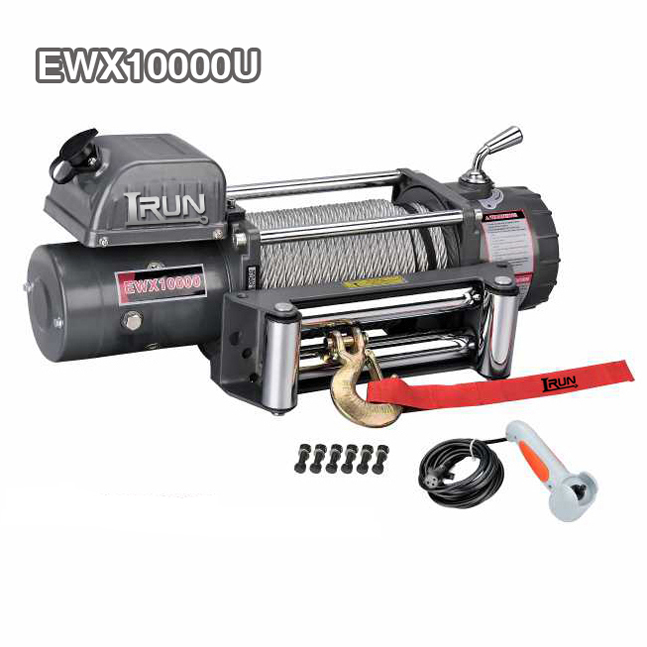

In the vastness of the winch, Hydraulic Winches responds to heavy loads with its powerful force, Industrial Winches holds firm on the front line of industrial operations with its sturdy and durable quality, and Hydraulic 4wd Winches conquers the perilous terrain with the advantage of four-wheel drive. Offroad Winches are reliable companions for off-road enthusiasts to challenge their limits, while Recovery Winches are the key force for emergency rescue. Item NO.EWX10000U, this 10,000lbs Electric Trailer Winch, as a classic of the EWX series Recovery Winches, ingeniously installs the control box on the winch motor, redefining the excellence standard of rescue winches with perfect efficiency, stable traction and compact design!
The EWX10000U has a powerful pulling force of 10,000 pounds. Whether it is a trailer stuck in the mud or a vehicle trapped in the wilderness, it can quickly rescue, perfectly demonstrating the efficient rescue capabilities of Recovery Winches. Compared with the complex Hydraulic pipelines and high maintenance costs of Hydraulic Winches, it adopts electric drive, is easy to operate, responds quickly, and significantly lowers the usage threshold. Meanwhile, inheriting the durable genes of Industrial Winches, the precisely manufactured body and transmission components ensure stable performance and reliable durability even under high-intensity and high-frequency use.
The patented three-stage planetary gear reducer endows the EWX10000U with extremely high transmission efficiency and safety performance, ensuring precise and error-free traction every time. Meanwhile, it is also equipped with professional Winch Accessories such as high-strength steel wire ropes and convenient control components, providing a one-stop solution from operation to traction. Whether challenging extreme off-road conditions with Offroad Winches or cooperating with Hydraulic 4Wd Winches to cope with harsh environments, the EWX10000U can stand out with its stable performance, compact design and extremely high cost performance. Become a reliable classic equipment in scenarios such as towing rescue and off-road support, and safeguard every rescue operation with its hardcore strength!
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F tyoe fixed in control box
9. SWR tensioner available
Overall Dimensions：21.9″ x 6.3″ x 10.0″
(L x W x H) 557mm x 160mm x 254mm
Net Weight：40 KGS
EWX10000
| SPECIFICATION | |
| Rated line pull | 10000 lbs (4536 kgs) |
| Motor:Series Wound | 12V:Input: 4.3kW / 5.8hp; Output: 2.3kW / 3.1hp |
| 24V:Input: 5.9kW / 7.9hp; Output: 3.0kW /4.0hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø3/8 “×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8” (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 10000(4536) | 17.4(5.3) | |
| 0(0) | 20.7(6.3) | 25.9(7.9) | 80 | 70 | 2 | 7969(3615) | 39.4(12.0) |
| 4000(1814) | 12.5(3.8) | 13.5(4.1) | 230 | 150 | 3 | 6624(3005) | 65.0(19.8) |
| 7000(3175) | 9.5(2.9) | 10.8(3.3) | 290 | 200 | 4 | 5667(2571) | 85.3(26.0) |
| 10000(4536) | 6.2(1.9) | 8.5(2.6) | 360 | 245 | |||
| ITEM | EWX10000U | EWX10000S | EWX10000F |
| Overall dimensions | 21.9″×6.3″×10.0″ | 21.9″×6.3″×11.1″ | 21.9″×6.5″×9.9″ |
| (L×W×H) | 557mm×160mm×254mm | 557mm×160mm×283mm | 557mm×166mm×251mm |
| Net weight (Ibs) | 88.2 | 89.3 | 93.9 |
| (kgs) | 40.0 | 40.5 | 42.6 |
Looking for ideal 10000lb Recovery Electric Winches Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Wireless Recovery Winches are quality guaranteed. We are China Origin Factory of Electric Recovery Winch. If you have any question, please feel free to contact us.
