Model No.: EWX12000F
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
In the vast field of Winches, Hydraulic Winches handle heavy loads with powerful power, Industrial Winches support high-intensity industrial operations with a solid structure, and Hydraulic 4wd Winches adapt to complex terrains with four-wheel drive. Offroad Winches are the powerful tools for off-road enthusiasts to break through difficult situations, while Recovery Winches are the core force for emergency rescue. The brand-new EWX12000F 12000 lbs Electric Trailer Winch, as the classic Recovery Winches of the EWX series, redefines the efficiency and reliability of trailer winches with ultimate performance and unique design!

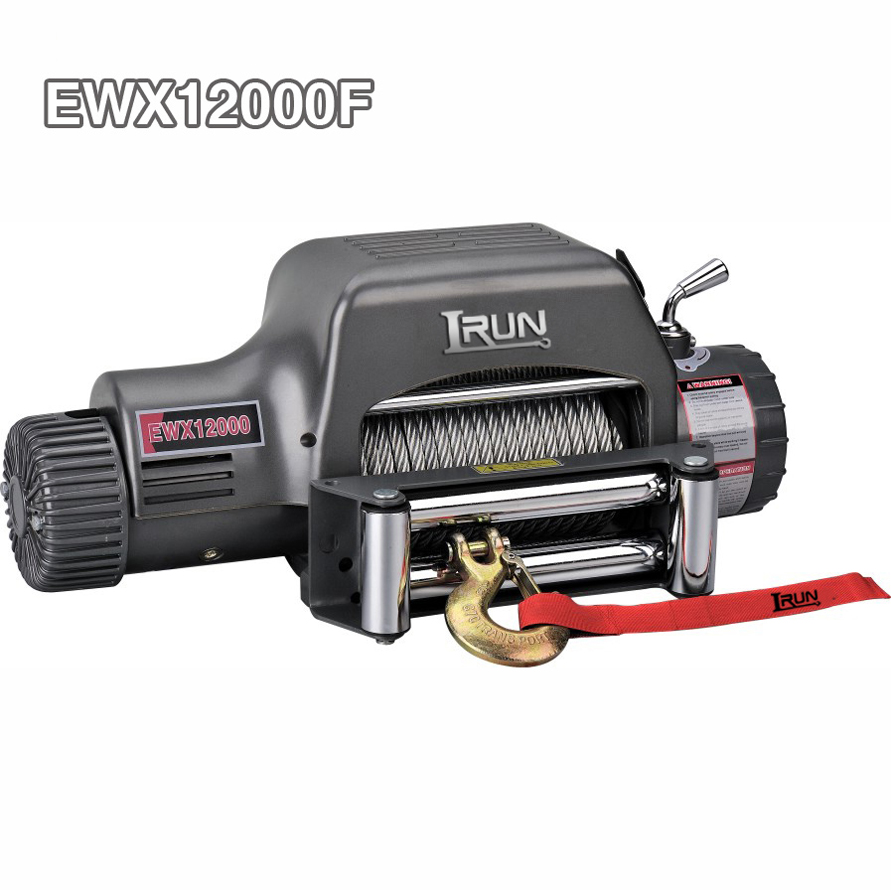

EWX12000F electric Trailer Winch, equipped with a vertical control box, is easy and intuitive to operate, specially designed for rapid rescue and towing tasks. With a powerful pulling force of 12,000 pounds, combined with a patented three-stage planetary gear reducer, it can quickly and stably complete the towing whether it is a trailer deeply Mired in mud or a vehicle trapped in the wilderness, maximizing the rescue efficiency of Recovery Winches. Compared with the complex Hydraulic system of Hydraulic Winches, it achieves flexible operation through electric drive and requires no cumbersome maintenance. Meanwhile, drawing on the durable genes of Industrial Winches, high-strength materials and precise manufacturing processes ensure long-term stable operation.
Its compact body design does not take up too much space, yet it has extremely high transmission efficiency and safety performance. It can be regarded as the ideal choice for Offroad Winches in towing rescue scenarios. Equipped with professional Winch Accessories such as high-strength steel wire ropes and roller cable guides, every aspect from control to traction is meticulously refined. Whether it's challenging extreme off-road conditions side by side with Offroad Winches or cooperating with Hydraulic 4Wd Winches to deal with extreme environments, the EWX12000F can stand out with its stable pulling force and efficient operation performance, becoming a reliable partner in scenarios such as towing rescue and off-road exploration!
Features:
1. Full steel reducer gear
2. Patent design three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F tyoe fixed in control box
9. SWR tensioner available
EWX12000
| SPECIFICATION | |
| Rated line pull | 12000 lbs (5443 kgs) |
| Motor: Series Wound | 12V:Input: 5.4 kW / 7.2hp; Output: 2.7kW / 3.6hp |
| 24V:Input: 5.3 kW / 7.1hp; Output: 3.3 kW /4.4hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø13/32 “×83.7 ‘ (Ø10.2mm×25.5m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 12000(5443) | 16.1 (4.9) | |
| 0(0) | 22.3(6.8) | 23.0(7.0) | 100 | 60 | 2 | 9563(4338) | 36.4 (11.1) |
| 4000(1814) | 13.1(4.0) | 13.8(4.2) | 220 | 130 | 3 | 7948(3605) | 60.0(18.3) |
| 8000(3629) | 9.8(3.0) | 10.8(3.3) | 330 | 170 | 4 | 6800(3084) | 83.7(25.5) |
| 12000(5443) | 5.8(1.8) | 7.5(2.3) | 450 | 220 | |||
| ITEM | EWX12000U | EWX12000S | EWX12000F |
| Overall dimensions | 22.8″×6.3″×10.0″ | 22.8″×6.3″×11.1″ | 23.2″×6.5″9.9″ |
| (L×W×H) | 579mm×160mm×254mm | 579mm×160mm×283mm | 579mm×160mm×283mm |
| Net weight (Ibs) | 92.6 | 93.3 | 96.6 |
| (kgs) | 42.0 | 42.3 | 43.8 |

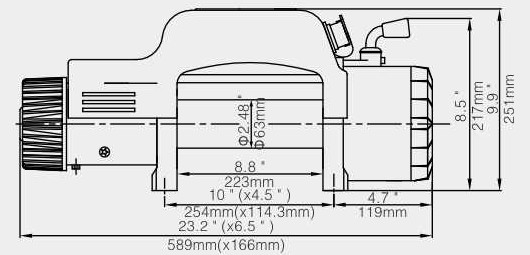

Overall Dimensions：23.2″ x 6.5″ x 9.9″
(L x W x H) 589mm x 166mm x 251mm
Net Weight：43.8 kGS
