Model No.: EWG10000F
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

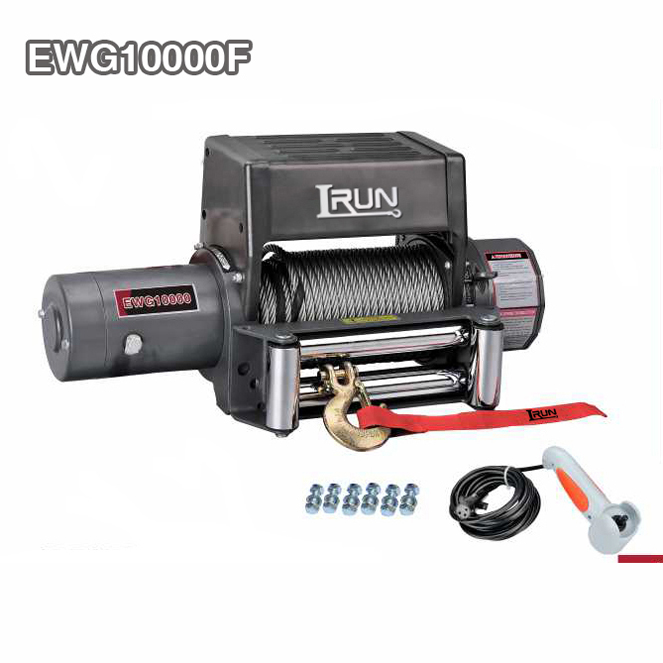

EWG10000F Electric Trailer Winch - The first-generation classic, off-road rescue, Hydraulic Winches carries heavy loads with powerful force, Industrial Winches holds the industrial ground with a solid body Hydraulic 4wd Winches navigate through perilous terrains with their four-wheel drive adaptability. Off-Road Winches are a powerful tool for off-road enthusiasts to break through difficult situations, while Recovery Winches are the rescue heroes in critical moments. The 10,000LBS electric Trailer Winch Item No. EWG10000F, as a representative work of the first-generation 4×4 series Recovery Winches, with its vertical control box design, outstanding performance and affordable price, has become a trusted choice for off-road vehicle and Jeep owners!
The EWG10000F is specially designed for off-road rescue. With a powerful pulling force of 10,000 pounds and a vertical control box, it is intuitive and convenient to operate. Whether it is a Jeep trapped in the sand or an off-road vehicle stuck in the mud, it can respond quickly and complete the rescue task efficiently, perfectly interpreting the professional rescue attributes of Recovery Winches. Compared with the complex Hydraulic system and high maintenance cost of Hydraulic Winches, it achieves immediate use with electric drive, saving time and effort. Meanwhile, inheriting the durable quality of Industrial Winches, the body and transmission system crafted with precise techniques ensure long-term stable operation.
As a first-generation classic product, the EWG10000F has won wide acclaim for its superior quality, reasonable price and outstanding performance. Equipped with professional Winch Accessories such as high-strength steel wire ropes and roller cable guides, from control to traction, every detail showcases meticulous craftsmanship. Whether working hand in hand with Offroad Winches to challenge extreme off-road conditions or cooperating with Hydraulic 4Wd Winches to deal with complex terrains, it can stand out with stable performance and extremely high cost performance, becoming a benchmark product that combines practicality and economy in the field of off-road rescue. Ensure safety for every off-road adventure and emergency rescue!
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWG10000
| SPECIFICATION | |
| Rated line pull | 10000 lbs (4536 kgs) |
| Motor: Series Wound | 12V:Input: 3.6kW / 4.8hp; Output: 2.7kW / 3.6hp 24V:Input: 4.8kW / 6.4hp; Output: 3.0kW /4.0hp |
| Gear reduction ratio | 294:1(12V); 210:1(24V) |
| Cable (Dia.× L) | Ø3/8 “×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9 ” (Ø63mm×227 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 10000(4536) | 18.0 (5.5) | |
| 0 | 17.1 (5.2) | 23.0(7.0) | 80 | 50 | 2 | 8000 (3629) | 39.4 (12.0) |
| 4000(1814) | 7.9 (2.4) | 10.5(3.2) | 170 | 115 | 3 | 6600(2994) | 64.0(19.5) |
| 6000(2722) | 6.2 (1.9) | 8.2(2.5) | 210 | 145 | 4 | 5600(2540) | 85.3(26.0) |
| 8000(3629) | 5.6 (1.7) | 6.9(2.1) | 250 | 170 | |||
| 10000(4536) | 4.6 (1.4) | 5.9(1.8) | 300 | 200 | |||
| ITEM | EWG10000U | EWG10000S | EWG10000F |
| Overall dimensions | 22.4″×7.1″×9.6″ 570mm×180mm×243mm | 22.4″×7.1″×11.7″ 570mm×180mm×297mm | 22.4″×7.1″×10.6″ 570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 73.8 33.8 | 75.0 34.0 | 75.3 34.2 |
| (kgs |
Overall dimensions: 22.4″ x 7.1″ x 10.6″
(L x W x H) 570mm x 180mm x 270mm
Net Weight: 34.2 KGS
