Model No.: EWX8000U
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

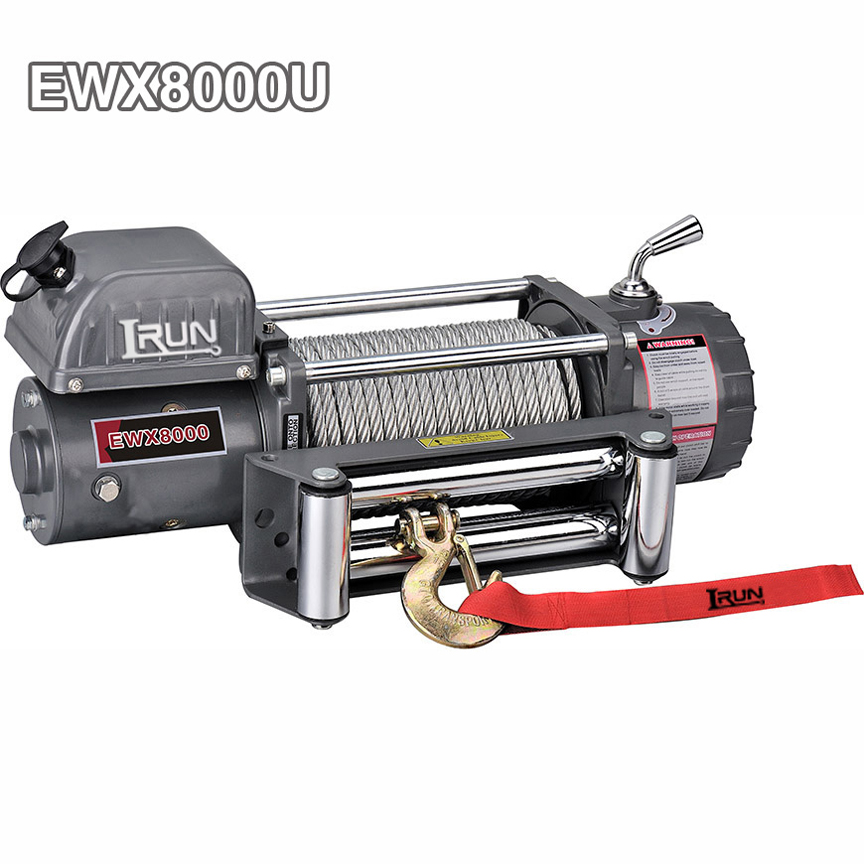

In the vast field of mechanical power, various types of winches each perform their own duties and showcase their unique strengths. Hydraulic Winches, with the powerful force of hydraulic drive, can easily handle heavy loads. Industrial Winches, with the tenacity of steel, continuously operate at high intensity on the industrial battlefield. Hydraulic 4wd Winches, with its outstanding performance of four-wheel drive, can walk smoothly on muddy and steep slopes. Offroad Winches are the source of courage for off-road enthusiasts to break through difficult situations. And Recovery Winches have always been the last line of defense for safeguarding vehicle safety. On this highly competitive stage, the EWX8000U 8000-pound Electric Trailer Winch stands out and becomes the ideal choice for truck, Jeep and SUV users.
The EWX8000U ingeniously integrates the control box onto the winch motor, not only saving space but also making operation readily accessible. With a powerful traction force of 8,000 pounds, combined with the EWX series' signature features of high efficiency, stable traction, and meticulous design, whether it's a truck trapped in the desert sand or a Jeep or SUV stuck in the jungle mud, it can instantly transform into a "rescue pioneer", quickly pulling the trapped vehicle out of danger. Perfectly interpret the professional rescue capabilities of Recovery Winches. Compared with the complex Hydraulic pipelines and high maintenance costs of Hydraulic Winches, it achieves immediate use with electric drive, significantly lowering the usage threshold. Meanwhile, inheriting the exquisite craftsmanship of Industrial Winches, the precisely forged body and transmission system remain as firm as a rock and have stable performance even when used frequently in extreme environments.
The patented three-stage planetary gear reducer is the "smart heart" of the EWX8000U. It endows the winch with extremely high transmission efficiency and rock-solid safety guarantee, ensuring that every pull is precise, error-free, safe and reliable. In addition, professional Winch Accessories such as high-strength anti-breakage steel wire ropes and flexible and durable roller cable guides are all available. From control to traction, a one-stop efficient rescue system is established. Whether partnering with Offroad Winches to challenge the "Death Trail" or cooperating with Hydraulic 4Wd Winches to cope with extremely harsh environments, the EWX8000U can stand out with its stable performance, compact design and extremely high cost performance. Become a trusted partner for professional rescue teams, off-road enthusiasts and outdoor adventurers, and safeguard every journey with our hardcore strength!
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Short Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F type fixed in control box
9. SWR tensioner available
EWX8000U
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629kgs) |
| Motor:Series Wound | 12V:Input: 4.3kW / 5.8hp; Output: 2.0kW / 2.7hp |
| 24V:Input: 5.5kW / 7.4hp; Output: 2.8kW / 3.8hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø21/64″×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 2000(907) | 6.6(2.0) | |
| 0 | 9.5(2.9) | 9.8(3.0) | 15 | 12 | 2 | 1630(739) | 14.1(4.3) |
| 500(227) | 8.2(2.5) | 8.9(2.7) | 60 | 40 | 3 | 1380(626) | 22.3(6.8) |
| 1500(680) | 5.6(1.7) | 7.5(2.3) | 115 | 60 | 4 | 1190(540) | 31.2(9.5) |
| 2000(907) | 3.6(1.1) | 6.2(1.9) | 145 | 80 | 5 | 1050(476) | 41.0(12.5) |
| 6 | 940(426) | 49.2(15.0) | |||||
| ITEM | EWX8000U | EWX8000S | EWX8000F |
| Overall dimensions | 21.3″×6.3″×10.0″ | 21.3″×6.3″×11.1″ | 21.3″×6.3″×9.9″ |
| (L×W×H) | 540mm×160mm×254mm | 540mm×160mm×283mm | 540mm×160mm×251mm |
| Net weight (Ibs) | 71.9 | 77.3 | 82.1 |
| (kgs) | 32.6 | 35.1 | 37.2 |
Overall Dimensions：21.3″ x 6.3″ x 10.0″
(L x W x H) 540mm x 160mm x 254mm
Net Weight：32.6 KGS
