Model No.: EWG9000U
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

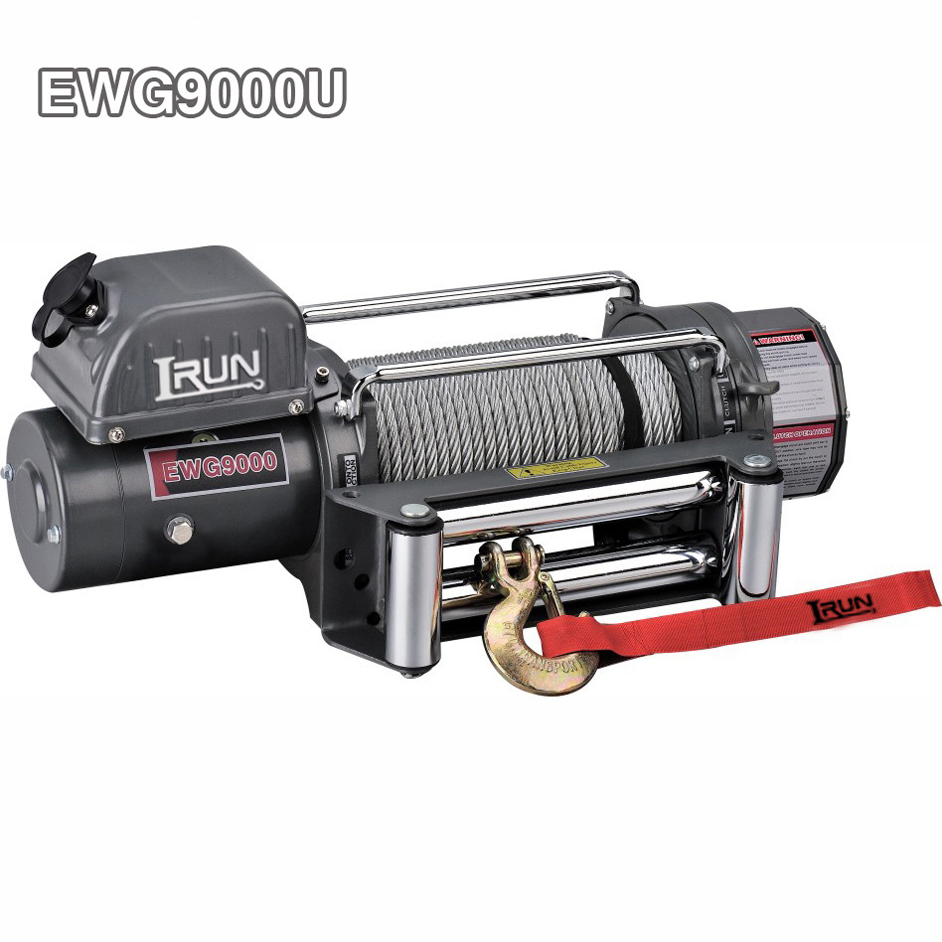

On the stage of the winch, Hydraulic Winches responds to the challenge of heavy loads with powerful force, Industrial Winches guards industrial operations with sturdiness and durability, and Hydraulic 4wd Winches conquers complex terrains with the characteristics of four-wheel drive. Offroad Winches help off-road enthusiasts break through difficult situations, while Recovery Winches are a solid support for emergency rescue. The 9000 lbs electric Trailer Winch Item No. EWG9000U, specially designed for off-road vehicles and Jeeps, innovatively installs the control box on the winch motor. With its outstanding performance, stable quality and affordable price, it has become a star product that attracts much attention in the market!
The EWG9000U has a powerful pulling force of 9,000 pounds. Whether it is an off-road vehicle stuck in the mud or a Jeep trapped in the sand, it can quickly rescue, perfectly demonstrating the efficient rescue capability of Recovery Winches. Unlike the complex Hydraulic pipelines and high maintenance costs of Hydraulic Winches, it is electrically driven, simple and convenient to operate, and ready to use immediately. Meanwhile, inheriting the durable genes of Industrial Winches, the body and precise transmission components manufactured through strict processes ensure stable performance and reliable durability even after long-term and high-frequency use.
This Winch is also equipped with high-strength steel wire ropes, convenient control components and other practical Winch Accessories, providing users with a one-stop solution from operation to traction. Whether challenging rough mountain roads with Offroad Winches or cooperating with Hydraulic 4Wd Winches to deal with extreme road conditions, the EWG9000U can stand out with its stable performance and high cost performance, becoming the ideal choice for off-road enthusiasts, rescue teams and outdoor adventurers With professional-level rescue support at an affordable price, every off-road journey is worry-free and reassuring!
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWG9000U
| SPECIFICATION | |
| Rated line pull | 9000 lbs (4082 kgs) |
| Motor: permanent magnet | 12V:Input: 3.4kW / 4.6hp; Output: 2.7kW / 3.6hp 24V:Input: 4.3kW / 5.8hp; Output: 3.0kW /4.0hp |
| Gear reduction ratio | 294:1(12V); 210:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48″×8.9 ” (Ø63mm×227 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 9000(4082) | 19.7 (6.0) | |
| 0(0) | 17.1(5.2) | 23.0(7.0) | 80 | 50 | 2 | 7350 (3334) | 42.7 (13.0) |
| 2000(907) | 10.8(3.3) | 14.8(4.5) | 120 | 75 | 3 | 6200(2812) | 68.9(21.0) |
| 4000(1814) | 7.9 (2.4) | 10.5(3.2) | 170 | 115 | 4 | 5400 (2449) | 95.1(29.0) |
| 6000(2722) | 6.2 (1.9) | 8.2(2.5) | 220 | 145 | |||
| 9000(4082) | 4.9(1.5) | 6.6 (2.0) | 280 | 180 | |||
| ITEM | EWG9000U | EWG9000S | EWG9000F |
| Overall dimensions | 22.4″×7.1″×9.6″ 570mm×180mm×243mm | 22.4″×7.1″×11.7″ 570mm×180mm×297mm | 22.4″×7.1″×10.6″ 570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 73.8 33.8 | 75.0 34.0 | 75.3 34.2 |
| (kgs) |
Overall Dimensions：22.4″ x 7.1″ x 8.9″
(L x W x H) 570mm x 180mm x 225mm
Net Weight： 33.8 KGS
