Model No.: EWG10000S
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
In the diverse world of Winches, Hydraulic Winches respond to heavy-load challenges with powerful performance, Industrial Winches safeguard industrial operations with solid durability, and Hydraulic 4wd Winches adapt to the four-wheel drive system to conquer complex terrains. Offroad Winches accompany off-road enthusiasts to break through difficult situations, while Recovery Winches turn the tide in critical moments. The 10,000LBS Electric Trailer Winch EWG10000S, as a member of the classic traditional winch series, has won global customer praise with its outstanding performance, affordable price and stable quality, and has become a benchmark for high cost-performance winches!

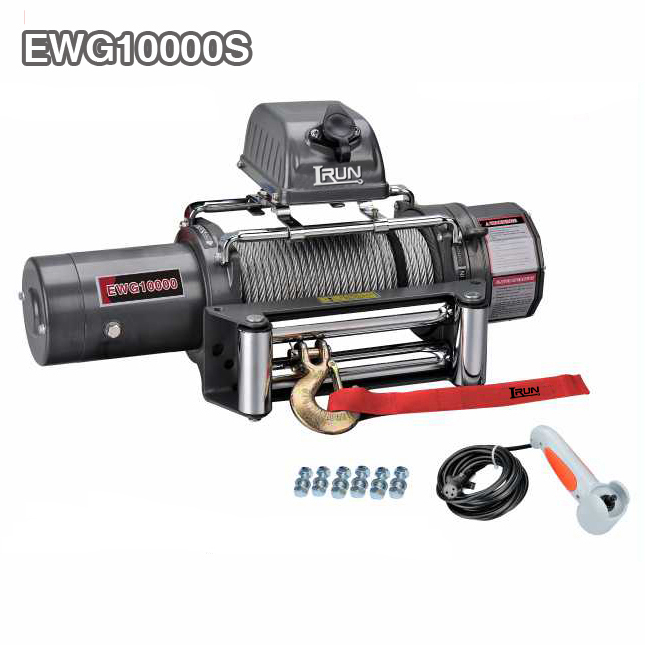

The EWG10000S electric Trailer Winch is specially designed for trailer rescue and daily towing needs. With a reliable pulling force of 10,000 pounds, it is sufficient to handle the rescue and relocation tasks of most vehicles and is a representative of the practical type among Recovery Winches. Unlike the complex Hydraulic maintenance of Hydraulic Winches, it is electrically driven, simple to operate and has low maintenance costs. At the same time, it combines the stability and reliability of Industrial Winches. The body and transmission system, crafted with strict techniques, ensure that it is not prone to malfunction during long-term use.
We are always dedicated to product optimization and cost control, ensuring that every customer can enjoy a high-performance winch experience at a reasonable price. The EWG10000S is also equipped with a full range of Winch Accessories, such as high-strength steel wire ropes and convenient control boxes, meeting all your needs from operation to traction in one stop. Whether cooperating with Offroad Winches for off-road rescue or assisting Hydraulic 4Wd Winches in dealing with unexpected situations, it can stand out with its stable performance and high cost performance, becoming the trusted choice of trailer drivers, off-road enthusiasts and engineering workers, ensuring the safety of every mission with reliable quality!
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWG10000S
| SPECIFICATION | |
| Rated line pull | 10000 lbs (4536 kgs) |
| Motor: Series Wound | 12V:Input: 3.6kW / 4.8hp; Output: 2.7kW / 3.6hp 24V:Input: 4.8kW / 6.4hp; Output: 3.0kW /4.0hp |
| Gear reduction ratio | 294:1(12V); 210:1(24V) |
| Cable (Dia.× L) | Ø3/8 “×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9 ” (Ø63mm×227 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 10000(4536) | 18.0 (5.5) | |
| 0 | 17.1 (5.2) | 23.0(7.0) | 80 | 50 | 2 | 8000 (3629) | 39.4 (12.0) |
| 4000(1814) | 7.9 (2.4) | 10.5(3.2) | 170 | 115 | 3 | 6600(2994) | 64.0(19.5) |
| 6000(2722) | 6.2 (1.9) | 8.2(2.5) | 210 | 145 | 4 | 5600(2540) | 85.3(26.0) |
| 8000(3629) | 5.6 (1.7) | 6.9(2.1) | 250 | 170 | |||
| 10000(4536) | 4.6 (1.4) | 5.9(1.8) | 300 | 200 | |||
| ITEM | EWG10000U | EWG10000S | EWG10000F |
| Overall dimensions | 22.4″×7.1″×9.6″ 570mm×180mm×243mm | 22.4″×7.1″×11.7″ 570mm×180mm×297mm | 22.4″×7.1″×10.6″ 570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 73.8 33.8 | 75.0 34.0 | 75.3 34.2 |
| (kgs) |

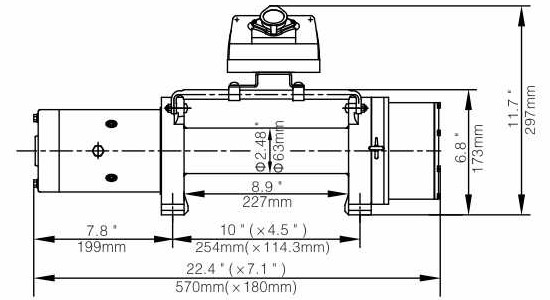

Overall Dimensions： 22.4″ x 7.1″ x 11.3″
(L x W x H) 570mm x 180mm x 286mm
Net Weight： 34 KGS
