8000LB Winch With Upright Controls Box
Get Latest PricePayment Type: | L/C,T/T,D/P |
Incoterm: | CFR,FOB,CIF,EXW |
Transportation: | Air,Ocean |
Port: | SHANGHAI,NINGBO |
Payment Type: | L/C,T/T,D/P |
Incoterm: | CFR,FOB,CIF,EXW |
Transportation: | Air,Ocean |
Port: | SHANGHAI,NINGBO |
Model No.: EWK8000F
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
Selling Units | : | Piece/Pieces |
Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

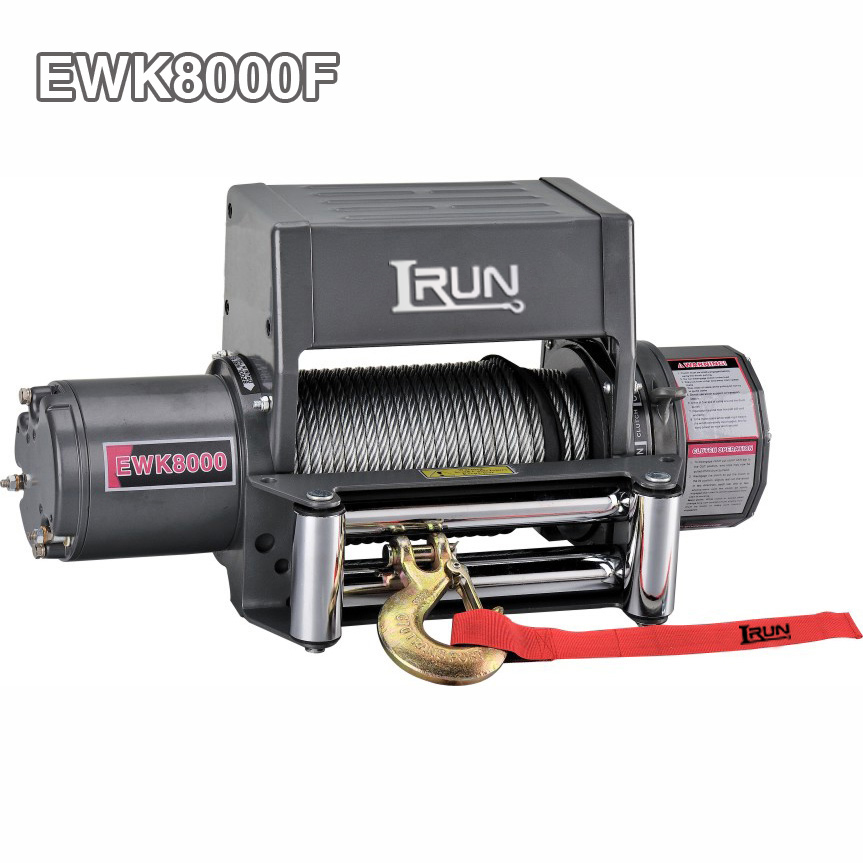

EWK8000F
8000 lbs Electric Trailer Winch Item No. EWK8000F With Permanent Magent Motor and Stand-up Control Box as the representative model of our first generation winch proudct. It features on the stable quality,fine performance and attractive price gaining clients long-term orders.
In the world of mechanical power, the winch family, with its diverse functions, has become a reliable partner in various fields. Hydraulic Winches, with hydraulic drive as its core, generates tremendous power and can easily handle heavy-load scenarios such as mines and ports. It is the best choice for towing and hoisting heavy equipment. Industrial Winches, with its robust and durable materials and precise design, continuously and stably outputs in high-intensity working environments such as factories and construction sites, safeguarding industrial production. Hydraulic 4wd Winches perfectly integrates four-wheel drive technology with the winch function. It helps vehicles navigate freely in complex terrains such as mud and steep slopes, serving as a powerful support for off-road adventures. Offroad Winches, specifically designed for off-roading, with its flexible and efficient features, helps off-road vehicles out of difficult situations and embark on a journey to conquer the wilderness. Recovery Winches, as the core force in the rescue field, quickly dispatch when vehicles are trapped or equipment malfunctions, and turn danger into safety with its powerful pulling force.
And various Winch Accessories, from high-strength steel wire ropes, precise control components to durable cable guides, are like powerful assistants to the winch, further enhancing its performance and practicality. No matter which type of winch it is, when paired with suitable accessories, it can achieve the maximum efficiency in its respective field.
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Permanent Magnet Motor
5. Remote control through control box and switch
6. Wireless remote control available
7. SWR tensioner available
EWK8000
SPECIFICATION | |
Rated line pull | 8000 lbs (3629 kgs) |
Motor: permanent magnet | 12V:Input: 4.2kW / 5.5hp; Output: 1.4kW / 1.9hp 24V:Input: 5.8kW / 7.7hp; Output: 1.7kW /2.3hp |
Gear reduction ratio | 210:1(12V); 150:1(24V) |
Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
Drum size (Dia.× L) | Ø2.48 “×8.9” (Ø63mm×227mm) |
Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
12V DC | 24V DC | 12V DC | 24V DC | 1 | 5000(2268) | 14.8(4.5) | |
0(0) | 12.1(3.7) | 18.0(5.5) | 45 | 25 | 2 | 4200(1905) | 29.5(9.0) |
1000(454) | 10.5(3.2) | 15.7 (4.8) | 90 | 55 | 3 | 3700(1678) | 55.8(17.0) |
3000(1361) | 7.5 (2.3) | 11.5 (3.5) | 150 | 100 | 4 | 3200 (1452) | 78.7(24.0) |
5000(2268) | 4.9 (1.5) | 5.3 (1.6) | 230 | 180 |
ITEM | EWK8000U | EWK8000S | EWK8000F |
Overall dimensions | 21.9″×7.1″×9.6″ 555mm×180mm×243mm | 21.2″×7.1″×11.7″ 538mm×180mm×297mm | 21.2″×7.1″×10.6″ 538mm×180mm×270mm |
(L×W×H) | |||
Net weight (Ibs) | 63.5 28.8 | 64.2 29.1 | 68.1 31.0 |
(kgs) |
