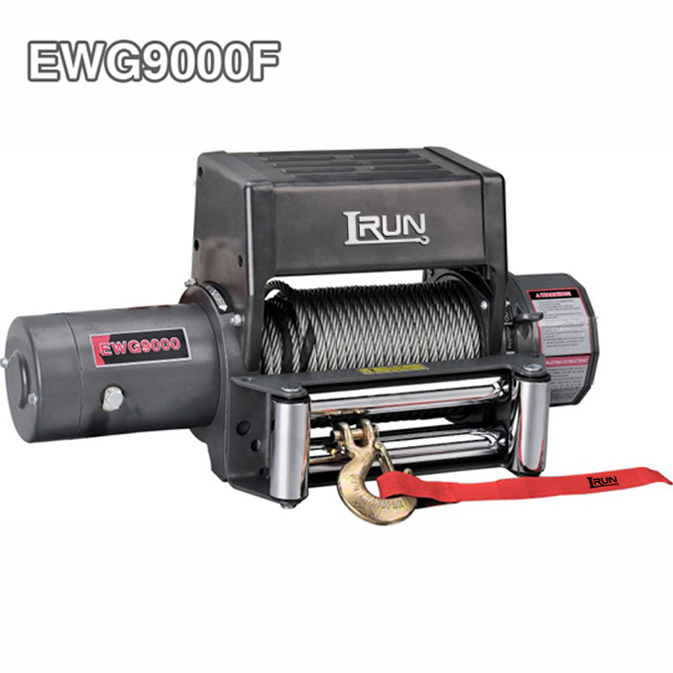

Model No.: EWG9000F
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

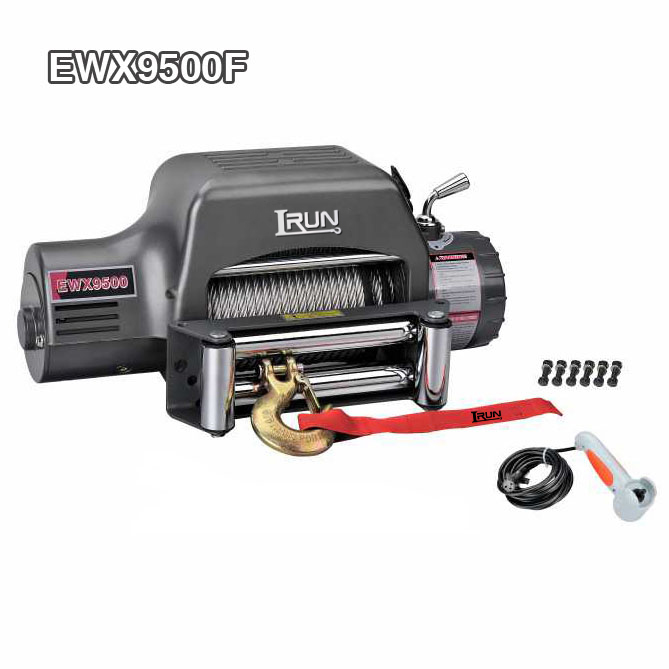

EWX9500F Electric Rescue Trailer Winch - Ultimate performance, in the field of rescue Winches, Hydraulic Winches handles heavy loads with powerful performance, and Industrial Winches serves industrial operations with its robustness and durability Hydraulic 4wd Winches conquer complex terrains with the feature of four-wheel drive, Offroad Winches help off-road enthusiasts break through difficult situations, and Recovery Winches are the core force for emergency rescue. And Item no. EWX9500F, this 9500 lbs electric rescue trailer winch, with its vertical control box design and outstanding performance, has become the shining star among the EWX series Recovery Winches!
The EWX9500F combines high performance, stable traction and compact design, perfectly interpreting the essence of the EWX series Recovery Winches. With a reliable pulling force of 9,500 pounds and a patented three-stage planetary gear reducer, it can quickly and stably complete rescue tasks, whether it is a trailer stuck in the mud or a vehicle trapped in the wilderness, raising the transmission efficiency and safety performance to a new level. Compared with the complex Hydraulic system and high maintenance cost of Hydraulic Winches, it adopts electric drive, is convenient to operate and has a sensitive response. Meanwhile, drawing on the durable quality of Industrial Winches, the precisely manufactured body and transmission structure ensure stability and reliability even under high-intensity use.
Its vertical control box design not only saves space but also makes operation within easy reach. Combined with professional Winch Accessories such as high-strength steel wire ropes and roller cable guides, it enables one-stop efficient rescue from control to traction. Whether working in coordination with Offroad Winches during off-road trips or assisting Hydraulic 4Wd Winches in rescue operations in complex terrains, the EWX9500F stands out with its stable performance and outstanding efficiency, making it a professional choice for towing rescue and off-road support. With solid capabilities, we safeguard every emergency rescue operation!
Features:
1. Full steel reducer gear
2. patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Short Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F type fixed in control box
9. SWR tensioner available
EWX9500
| SPECIFICATION | |
| Rated line pull | 9500 lbs (4309 kgs) |
| Motor: Series Wound | 12V:Input: 4.6kW / 6.1hp; Output: 2.1kW / 2.8hp |
| 24V:Input: 6.5kW / 8.7hp; Output: 2.8kW / 3.8hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø3/8″×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 9500(4309) | 17.4(5.3) | |
| 0 | 19.7 (6.0) | 22.3 (6.8) | 80 | 70 | 2 | 7706(3495) | 39.4(12.0) |
| 3000(1361) | 12.5 (3.8) | 16.4(5.0) | 170 | 140 | 3 | 6482(2940) | 65.0(19.8) |
| 6000(2722) | 9.8(3.0) | 12.8 (3.9) | 260 | 210 | 4 | 5593(2537) | 85.3(26.0) |
| 9500(4309) | 6.2(1.9) | 9.5(2.9) | 380 | 270 | |||
| ITEM | EWX9500U | EWX9500S | EWX9500F |
| Overall dimensions | 21.3″×6.3″×10.0″ | 21.3″×6.3″×11.1″ | 21.3″×6.3″×9.9″ |
| (L×W×H) | 292mm×113mm×108mm | 292mm×113mm×108mm | 308mm×113mm×150mm |
| Net weight (Ibs) | 80.7 | 81.7 | 86.5 |
| (kgs) | 36.6 | 37.1 | 39.2 |

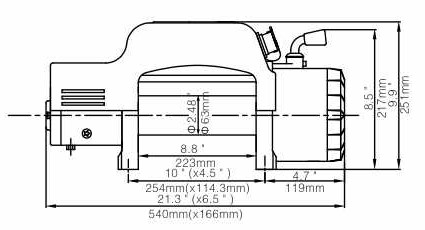

Overall Dimensions：21.3″ x 6.5″ x 9.9″
(L x W x H) 540mm x 166mm x 251mm
Net Weight：39.2 KGS
