Model No.: EWG8000S
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

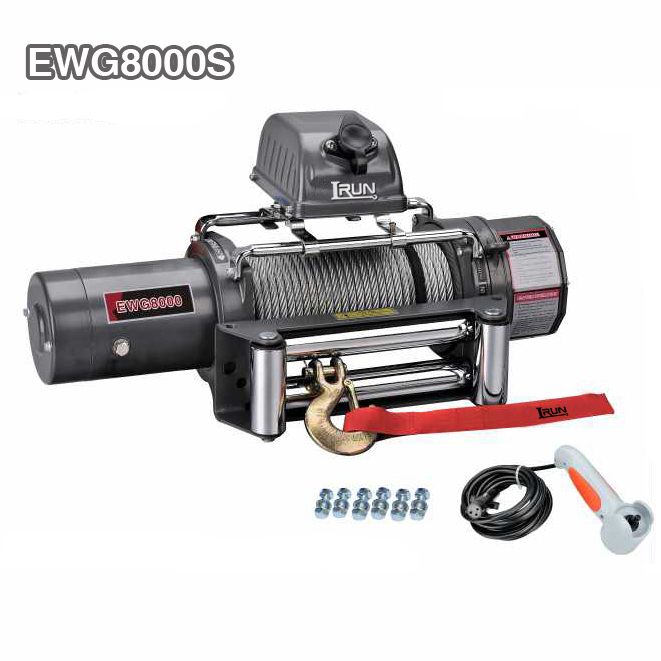

EWG8000S Electric Trailer Winch - a pioneering model and a long-lasting bestseller, Hydraulic Winches carries heavy operations with powerful force, and Industrial Winches serves industrial scenarios with robustness and durability Hydraulic 4wd Winches conquer steep terrains with the feature of four-wheel drive, Offroad Winches help off-road enthusiasts break through difficult situations, and Recovery Winches are the key force for emergency rescue. The 8000 lbs electric trailer winch Model No. EWG8000S, as the pioneering work of the series-excited 4×4 rescue winch, has written a legend of quality and cost performance with its long-term best-selling record!
Since its inception, the EWG8000S has set a benchmark in the field of tow truck rescue with the posture of a pioneer. With a reliable pulling force of 8,000 pounds, it can quickly rescue an SUV stuck in a mud pit or a 4×4 vehicle trapped in the wilderness, perfectly demonstrating the professional rescue capabilities of Recovery Winches. Unlike the complex Hydraulic maintenance and high cost of Hydraulic Winches, it adopts electric drive, which is convenient to operate and requires less maintenance. Meanwhile, integrating the durable genes of Industrial Winches, the body crafted with strict techniques and the precise transmission system ensure stability and reliability even under high-intensity use.
For many years, we have been committed to improving product quality and strictly controlling production costs. This is precisely the secret to the long-term popularity of the EWG8000S. Its vertical control box design, combined with professional Winch Accessories such as high-strength steel wire ropes and roller cable guides, provides a one-stop efficient solution from control to traction. Whether it is challenging extreme off-road conditions side by side with Offroad Winches or cooperating with Hydraulic 4Wd Winches to deal with harsh environments, the EWG8000S can stand out with its stable performance and high cost performance, becoming a classic choice that has endured for a long time in the field of off-road rescue. Safeguard every rescue operation with pioneering quality!
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWG8000
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629 kgs) |
| Motor: Series Wound | 12V:Input: 3.8kW / 5.1hp; Output: 2.7kW / 3.6hp 24V:Input: 5.0kW / 6.7hp; Output: 3.0kW /4.0hp |
| Gear reduction ratio | 210:1(12V); 150:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9 ” (Ø63mm×227mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 8000(3629) | 19.7 (6.0) | |
| 0(0) | 24.0(7.3) | 34.4(10.5) | 80 | 50 | 2 | 6500(2948) | 42.7 (13.0) |
| 2000(907) | 12.5(3.8) | 19.0(5.8) | 150 | 90 | 3 | 5500(2495) | 68.9(21.0) |
| 4000(1814) | 8.9(2.7) | 12.8 (3.9) | 220 | 135 | 4 | 4800(2177) | 95.1(29.0) |
| 6000(2722) | 6.9 (2.1) | 9.8(3.0) | 270 | 170 | |||
| 8000(3629) | 5.6(1.7) | 6.6 (2.0) | 320 | 210 | |||
| ITEM | EWG8000U | EWG8000S | EWG8000F |
| Overall dimensions | 22.4″×7.1″×9.6″ 570mm×180mm×243mm | 22.4″×7.1″×11.7″ 570mm×180mm×297mm | 22.4″×7.1″×10.6″ 570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 72.5 32.8 | 72.9 33.1 | 73.8 33.5 |
| (kgs) |

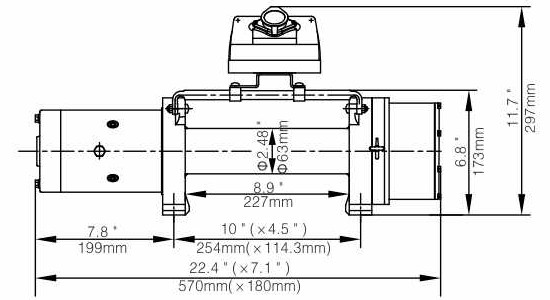

Overall Dimensions：22.4″ x 7.1″ x 11.3″
(L x W x H) 570mm x 180mm x 286mm
Net Weight：33.1 KGS
