Model No.: EWX8000F
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

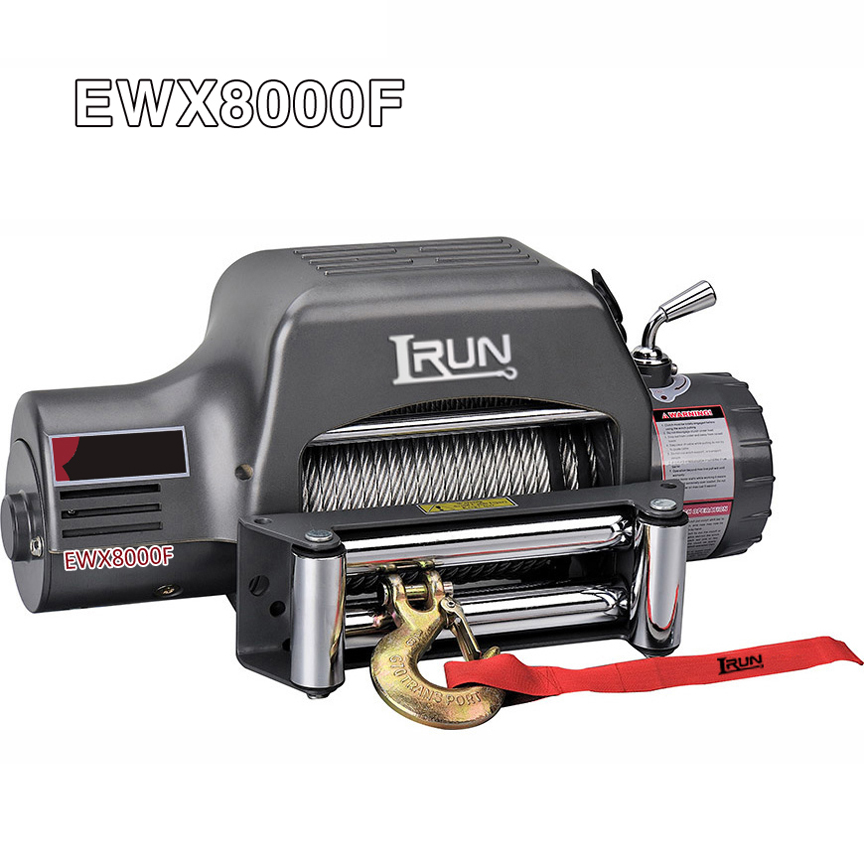

EWX8000F 8000-pound electric off-road rescue trailer winch - Vertical control. In the vast world of off-road rescue Winches, Hydraulic Winches responds to heavy load challenges with powerful hydraulic power, and Industrial Winches holds its ground in the industrial field with its sturdy and durable characteristics. Hydraulic 4wd Winches rely on the advantage of four-wheel drive to navigate through complex terrains. Offroad Winches open up a way forward for off-road enthusiasts, while Recovery Winches are a solid support for rescue in difficult situations. In this highly competitive field, the 8000 lbs electric off-road rescue trailer winch EWX8000F, with the combination of a vertical control box and a powerful serie-excited motor, and equipped with a patented three-stage planetary gear reducer, has emerged as a shining new star among Recovery Winches!
The EWX8000F is specially designed for off-road rescue scenarios. With a powerful pulling force of 8,000 pounds and a vertical control box, it is easy and intuitive to operate. Even if the vehicle is stuck in the mud or wilderness, it can provide rapid and precise rescue, perfectly demonstrating the efficient rescue capabilities of Recovery Winches. Unlike the complex Hydraulic system and high maintenance cost of Hydraulic Winches, it adopts electric drive, one-key start, sensitive response, and significantly lowers the usage threshold. Meanwhile, drawing on the durable quality of the Industrial Winches, the body and transmission components crafted through precise techniques ensure stability and reliability during high-intensity and high-frequency off-road rescue missions.
Its patented three-stage planetary gear reducer endows the EWX8000F with extremely high transmission efficiency and reliable safety performance, ensuring that every traction is stable and efficient. Not only that, it is also equipped with high-strength anti-breakage steel wire ropes, flexible and durable roller cable guides and other professional Winch Accessories, providing a one-stop solution from control to traction. Whether challenging extreme off-road routes with Offroad Winches or cooperating with Hydraulic 4Wd Winches to cope with harsh environments, the EWX8000F can stand out with its outstanding performance, compact design and extremely high cost performance. Become the trusted choice of off-road enthusiasts and professional rescue teams, and safeguard every off-road adventure and emergency rescue with our hardcore strength!
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Short Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F type fixed in control box
9. SWR tensioner available
EWX8000
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629kgs) |
| Motor: Series Wound | 12V:Input: 4.3kW / 5.8hp; Output: 2.0kW / 2.7hp |
| 24V:Input: 5.5kW / 7.4hp; Output: 2.8kW / 3.8hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø21/64″×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 2000(907) | 6.6(2.0) | |
| 0 | 9.5(2.9) | 9.8(3.0) | 15 | 12 | 2 | 1630(739) | 14.1(4.3) |
| 500(227) | 8.2(2.5) | 8.9(2.7) | 60 | 40 | 3 | 1380(626) | 22.3(6.8) |
| 1500(680) | 5.6(1.7) | 7.5(2.3) | 115 | 60 | 4 | 1190(540) | 31.2(9.5) |
| 2000(907) | 3.6(1.1) | 6.2(1.9) | 145 | 80 | 5 | 1050(476) | 41.0(12.5) |
| 6 | 940(426) | 49.2(15.0) | |||||
| ITEM | EWX8000U | EWX8000S | EWX8000F |
| Overall dimensions | 21.3″×6.3″×10.0″ | 21.3″×6.3″×11.1″ | 21.3″×6.3″×9.9″ |
| (L×W×H) | 540mm×160mm×254mm | 540mm×160mm×283mm | 540mm×160mm×251mm |
| Net weight (Ibs) | 71.9 | 77.3 | 82.1 |
| (kgs) | 32.6 | 35.1 | 37.2 |
Overall Dimensions：21.3″ x 6.5″ x 9.9″
(L x W x H) 540mm x 166mm x 251mm
Net weight：37.2 KGS
