Model No.: EWK8000U
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

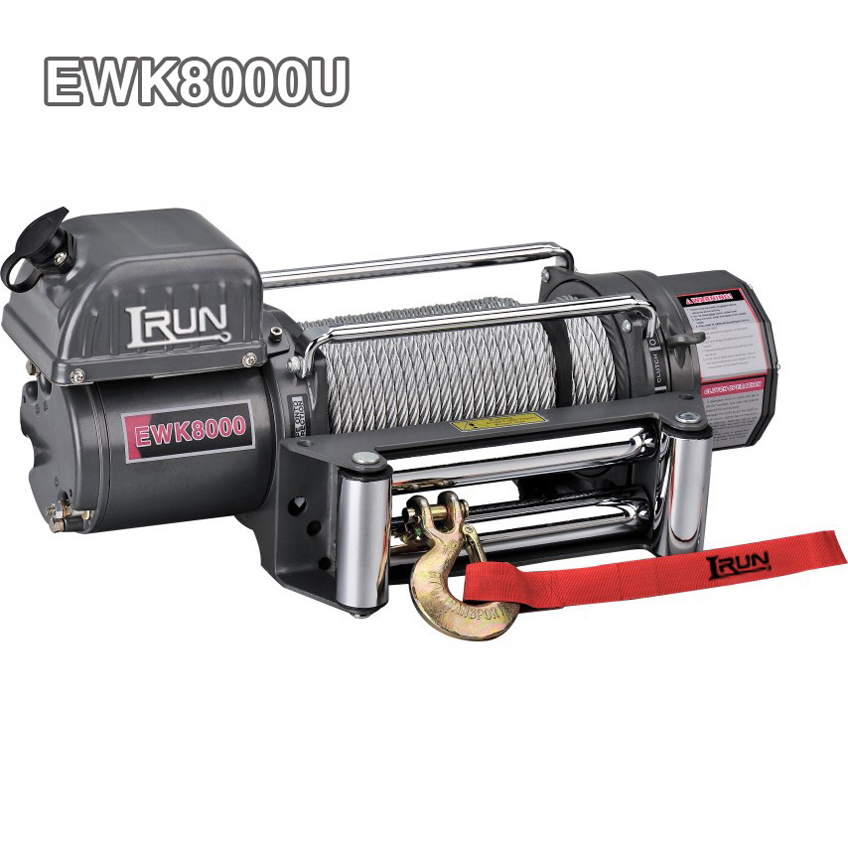

EWK8000U 8000-pound Electric Trailer Winch - The first-generation legend, with both reputation and sales. Hydraulic Winches has overcome the heavy load challenge with the powerful force of hydraulic drive, and Industrial Winches has remained steadfast in the industrial field with the tenacity of steel. Hydraulic 4wd Winches traverse complex terrains with their four-wheel drive characteristics. Offroad Winches assist off-road enthusiasts in exploring the unknown, while Recovery Winches are a solid support for rescue in difficult situations. In this "world" of winches, the Item No.EWK8000U 8000-pound electric trailer winch, as the first-generation classic, has been continuously selling well among long-term cooperative customers with its stable quality, outstanding performance and affordable price, becoming a perennial favorite in the market!
The EWK8000U has a powerful pulling force of 8,000 pounds. Whether it is a trailer stuck in a mud pit or a vehicle trapped in the wilderness, it can quickly carry out rescue operations, perfectly demonstrating the efficient rescue capabilities of Recovery Winches. Compared with the complex Hydraulic system and high maintenance cost of Hydraulic Winches, it adopts electric drive, is simple and convenient to operate, and can respond with one-button start. Meanwhile, inheriting the durable genes of Industrial Winches, the body and transmission components crafted through precise techniques ensure stable and reliable performance even in high-intensity and high-frequency usage scenarios.
From high-strength anti-breakage steel wire ropes to practical and convenient control components, every Winch Accessory has been meticulously configured to provide all-round protection for rescue operations. Whether challenging the perilous off-road routes with Offroad Winches or cooperating with Hydraulic 4Wd Winches to cope with extremely harsh environments, the EWK8000U can stand out with its classic design, outstanding performance and extremely high cost performance. Become a trusted first-generation gem in the hearts of professional rescue teams and off-road enthusiasts, safeguarding every rescue operation and off-road journey with consistent quality!
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Permanent Magnet Motor
5. Remote control through control box and switch
6. Wireless remote control available
7. SWR tensioner available
EWK8000
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629 kgs) |
| Motor: permanent magnet | 12V:Input: 4.2kW / 5.5hp; Output: 1.4kW / 1.9hp 24V:Input: 5.8kW / 7.7hp; Output: 1.7kW /2.3hp |
| Gear reduction ratio | 210:1(12V); 150:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9” (Ø63mm×227mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 5000(2268) | 14.8(4.5) | |
| 0(0) | 12.1(3.7) | 18.0(5.5) | 45 | 25 | 2 | 4200(1905) | 29.5(9.0) |
| 1000(454) | 10.5(3.2) | 15.7 (4.8) | 90 | 55 | 3 | 3700(1678) | 55.8(17.0) |
| 3000(1361) | 7.5 (2.3) | 11.5 (3.5) | 150 | 100 | 4 | 3200 (1452) | 78.7(24.0) |
| 5000(2268) | 4.9 (1.5) | 5.3 (1.6) | 230 | 180 | |||
| ITEM | EWK8000U | EWK8000S | EWK8000F |
| Overall dimensions | 21.9″×7.1″×9.6″ 555mm×180mm×243mm | 21.2″×7.1″×11.7″ 538mm×180mm×297mm | 21.2″×7.1″×10.6″ 538mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 63.5 28.8 | 64.2 29.1 | 68.1 31.0 |
| (kgs) |
