Model No.: EWG10000U
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

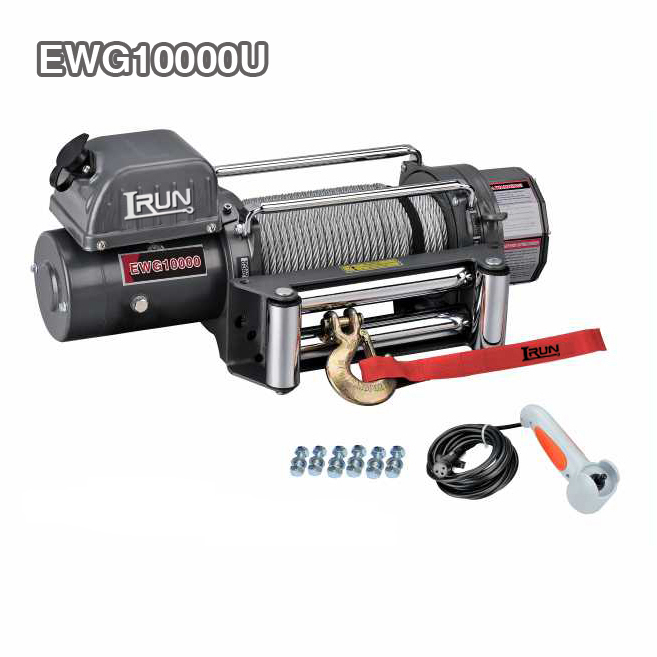

In the diverse world of Winches, Hydraulic Winches respond to heavy-load demands with strong power, Industrial Winches serve industrial scenarios with their robust and durable characteristics, and Hydraulic 4wd Winches conquer complex terrains with the advantage of four-wheel drive. Offroad Winches help off-road enthusiasts push their limits, while Recovery Winches are a solid support for emergency rescue. The 10,000LBS Electric Trailer Winch Item No. EWG10000U, as a member of the 10,000-pound regular winch series, has gained numerous customer praises with its stable quality, reasonable price and outstanding performance, and has become a high cost-performance choice in the market!
The EWG10000U is specially designed for towing rescue and daily towing. With a reliable pulling force of 10,000 pounds, it can easily handle tasks such as vehicle escape and relocation, perfectly demonstrating the practical value of Recovery Winches. Compared with the complex Hydraulic system and high maintenance cost of Hydraulic Winches, it adopts electric drive, is easy to operate and requires less maintenance. Meanwhile, drawing on the durable essence of Industrial Winches, the body and transmission structure manufactured through strict craftsmanship ensure stability and reliability even during frequent use.
This Winch not only has excellent performance but also is equipped with practical Winch Accessories such as high-strength steel wire ropes and a convenient control box. From operation to traction, it provides users with a one-stop solution. Whether cooperating with Offroad Winches for emergency rescue during off-road trips or assisting Hydraulic 4Wd Winches in completing vehicle towing in complex road conditions, the EWG10000U can stand out with its stable performance and extremely high cost performance. Become the ideal partner for trailer drivers, off-road enthusiasts and engineers, and ensure the safety of every mission with reliable quality!
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWG10000
| SPECIFICATION | |
| Rated line pull | 10000 lbs (4536 kgs) |
| Motor: Series Wound | 12V:Input: 3.6kW / 4.8hp; Output: 2.7kW / 3.6hp 24V:Input: 4.8kW / 6.4hp; Output: 3.0kW /4.0hp |
| Gear reduction ratio | 294:1(12V); 210:1(24V) |
| Cable (Dia.× L) | Ø3/8 “×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9 ” (Ø63mm×227 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 10000(4536) | 18.0 (5.5) | |
| 0 | 17.1 (5.2) | 23.0(7.0) | 80 | 50 | 2 | 8000 (3629) | 39.4 (12.0) |
| 4000(1814) | 7.9 (2.4) | 10.5(3.2) | 170 | 115 | 3 | 6600(2994) | 64.0(19.5) |
| 6000(2722) | 6.2 (1.9) | 8.2(2.5) | 210 | 145 | 4 | 5600(2540) | 85.3(26.0) |
| 8000(3629) | 5.6 (1.7) | 6.9(2.1) | 250 | 170 | |||
| 10000(4536) | 4.6 (1.4) | 5.9(1.8) | 300 | 200 | |||
| ITEM | EWG10000U | EWG10000S | EWG10000F |
| Overall dimensions | 22.4″×7.1″×9.6″ 570mm×180mm×243mm | 22.4″×7.1″×11.7″ 570mm×180mm×297mm | 22.4″×7.1″×10.6″ 570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 73.8 33.8 | 75.0 34.0 | 75.3 34.2 |
| (kgs) |

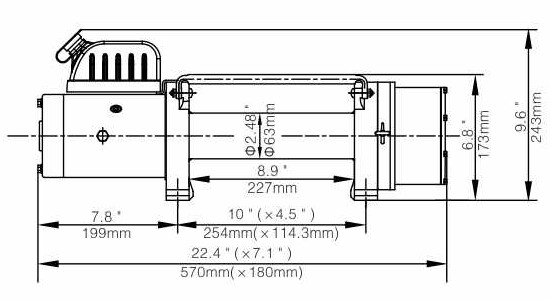

Overall Dimensions： 22.4″ x 7.1″ x 8.9″
(L x W x H) 570mm x 180mm x 225mm
