Model No.: EWX9500F
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

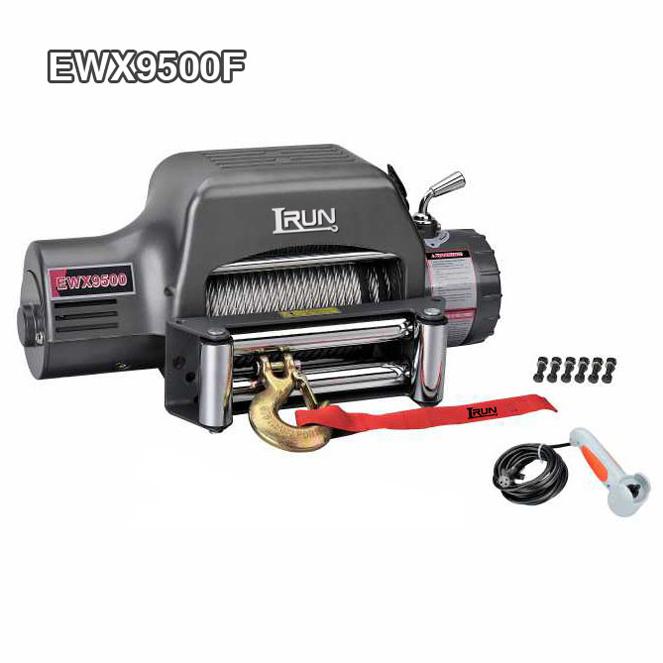

In the field of Winches, Hydraulic Winches handle heavy tasks with powerful performance, Industrial Winches serve industrial scenarios with sturdy and durable characteristics, and Hydraulic 4wd Winches navigate complex terrains with the advantage of four-wheel drive. Offroad Winches are great helpers for off-road enthusiasts to break through difficult situations, while Recovery Winches are solid supports in emergency rescue. Item no. EWX9500F, this 9500 lbs electric rescue trailer winch, equipped with a vertical control box, as a member of the EWX series Recovery Winches, redefines the outstanding performance of rescue winches with perfect efficiency, stable traction and compact design!
The EWX9500F has a powerful pulling force of 9,500 pounds. Whether it is a trailer stuck in the mud or a vehicle trapped in the wilderness, it can quickly rescue, fully demonstrating the efficient rescue capabilities of Recovery Winches. Compared with the complex Hydraulic system and high maintenance cost of Hydraulic Winches, it adopts electric drive, is simple and convenient to operate, and has a sensitive response. Meanwhile, inheriting the durable quality of Industrial Winches, the body and transmission components crafted through precise techniques ensure stability and reliability even under high-intensity use.
Its patented three-stage planetary gear reducer endows the winch with extremely high transmission efficiency and reliable safety, ensuring precise and stable traction every time. Equipped with professional Winch Accessories such as high-strength steel wire ropes and roller cable guides, it provides a one-stop solution from control to traction. Whether challenging extreme off-road conditions with Offroad Winches or cooperating with Hydraulic 4Wd Winches to cope with harsh environments, the EWX9500F stands out with the convenient operation of the vertical control box, outstanding performance and extremely high cost performance. Become a reliable professional equipment in scenarios such as towing rescue and off-road support, and safeguard every rescue operation with its solid strength!
Features:
1. Full steel reducer gear
2. patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Short Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F type fixed in control box
9. SWR tensioner available
EWX9500
| SPECIFICATION | |
| Rated line pull | 9500 lbs (4309 kgs) |
| Motor: Series Wound | 12V:Input: 4.6kW / 6.1hp; Output: 2.1kW / 2.8hp |
| 24V:Input: 6.5kW / 8.7hp; Output: 2.8kW / 3.8hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø3/8″×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 9500(4309) | 17.4(5.3) | |
| 0 | 19.7 (6.0) | 22.3 (6.8) | 80 | 70 | 2 | 7706(3495) | 39.4(12.0) |
| 3000(1361) | 12.5 (3.8) | 16.4(5.0) | 170 | 140 | 3 | 6482(2940) | 65.0(19.8) |
| 6000(2722) | 9.8(3.0) | 12.8 (3.9) | 260 | 210 | 4 | 5593(2537) | 85.3(26.0) |
| 9500(4309) | 6.2(1.9) | 9.5(2.9) | 380 | 270 | |||
| ITEM | EWX9500U | EWX9500S | EWX9500F |
| Overall dimensions | 21.3″×6.3″×10.0″ | 21.3″×6.3″×11.1″ | 21.3″×6.3″×9.9″ |
| (L×W×H) | 292mm×113mm×108mm | 292mm×113mm×108mm | 308mm×113mm×150mm |
| Net weight (Ibs) | 80.7 | 81.7 | 86.5 |
| (kgs) | 36.6 | 37.1 | 39.2 |
Overall Dimensions：21.3″ x 6.5″ x 9.9″
(L x W x H) 540mm x 166mm x 251mm
Net Weight：39.2 KGS
