Model No.: EWX12000U
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
In the field of Winches, Hydraulic Winches respond to heavy load challenges with strong power, Industrial Winches meet the high-strength demands of industrial grade with a solid structure, and Hydraulic 4wd Winches adapt to the four-wheel drive system to conquer complex terrains. Offroad Winches are reliable companions for off-road enthusiasts to break through difficult situations, while Recovery Winches are key equipment for emergency rescue. The EWX12000U 12000 lbs Electric Trailer Winch, as the culmination of the EWX series Recovery Winches and Offroad Winches, redefines efficiency and safety with its outstanding performance!

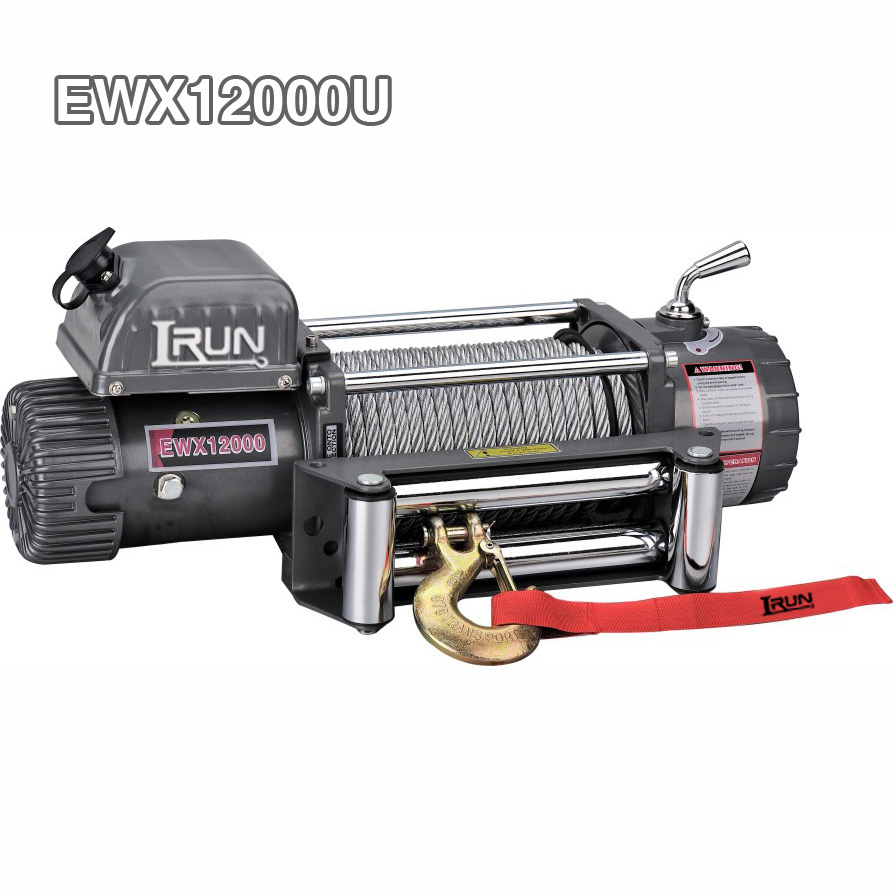

The EWX12000U electric Trailer Winch integrates the control box into the winch motor. Its compact design saves space and is easy to operate. It is specifically designed for efficient rescue and off-road towing scenarios. With a powerful traction force of 12,000 pounds and a patented three-stage planetary gear reducer, Recovery Winches can quickly and stably complete the towing, whether it is a trailer stuck in a mud pit or an off-road vehicle trapped in the wilderness, demonstrating its professional rescue capabilities. Compared with the complex Hydraulic pipelines and high maintenance costs of Hydraulic Winches, it is electrically driven, ready to use immediately, convenient and worry-free. Meanwhile, inheriting the durable quality of Industrial Winches, with high-strength alloy materials and precise craftsmanship, it ensures stability and reliability even during frequent use.
With its extremely high transmission efficiency and safety performance, the EWX12000U can be regarded as a leader among Off-Road Winches. Meanwhile, it is equipped with high-strength steel wire ropes, roller cable guides and other Winch Accessories, ensuring smooth operation from control to traction in all aspects. Whether exploring unknown off-road routes with Offroad Winches or cooperating with Hydraulic 4Wd Winches to cope with harsh environments, the E WX1200U can become a reliable hardcore equipment in off-road rescue and towing transportation scenarios with stable pull output and efficient operation performance!
Features:
1. Full steel reducer gear
2. Patent design three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F tyoe fixed in control box
9. SWR tensioner available
EWX12000
| SPECIFICATION | |
| Rated line pull | 12000 lbs (5443 kgs) |
| Motor: Series Wound | 12V:Input: 5.4 kW / 7.2hp; Output: 2.7kW / 3.6hp |
| 24V:Input: 5.3 kW / 7.1hp; Output: 3.3 kW /4.4hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø13/32 “×83.7 ‘ (Ø10.2mm×25.5m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 12000(5443) | 16.1 (4.9) | |
| 0(0) | 22.3(6.8) | 23.0(7.0) | 100 | 60 | 2 | 9563(4338) | 36.4 (11.1) |
| 4000(1814) | 13.1(4.0) | 13.8(4.2) | 220 | 130 | 3 | 7948(3605) | 60.0(18.3) |
| 8000(3629) | 9.8(3.0) | 10.8(3.3) | 330 | 170 | 4 | 6800(3084) | 83.7(25.5) |
| 12000(5443) | 5.8(1.8) | 7.5(2.3) | 450 | 220 | |||
| ITEM | EWX12000U | EWX12000S | EWX12000F |
| Overall dimensions | 22.8″×6.3″×10.0″ | 22.8″×6.3″×11.1″ | 23.2″×6.5″9.9″ |
| (L×W×H) | 579mm×160mm×254mm | 579mm×160mm×283mm | 579mm×160mm×283mm |
| Net weight (Ibs) | 92.6 | 93.3 | 96.6 |
| (kgs) | 42.0 | 42.3 | 43.8 |
Overall Dimensions：22.8″ x 6.3″ x 9.6″
(L x W x H) 579mm x 160mm x 229mm
Net Weight：42.0 KGS
