Model No.: EWX8000S
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

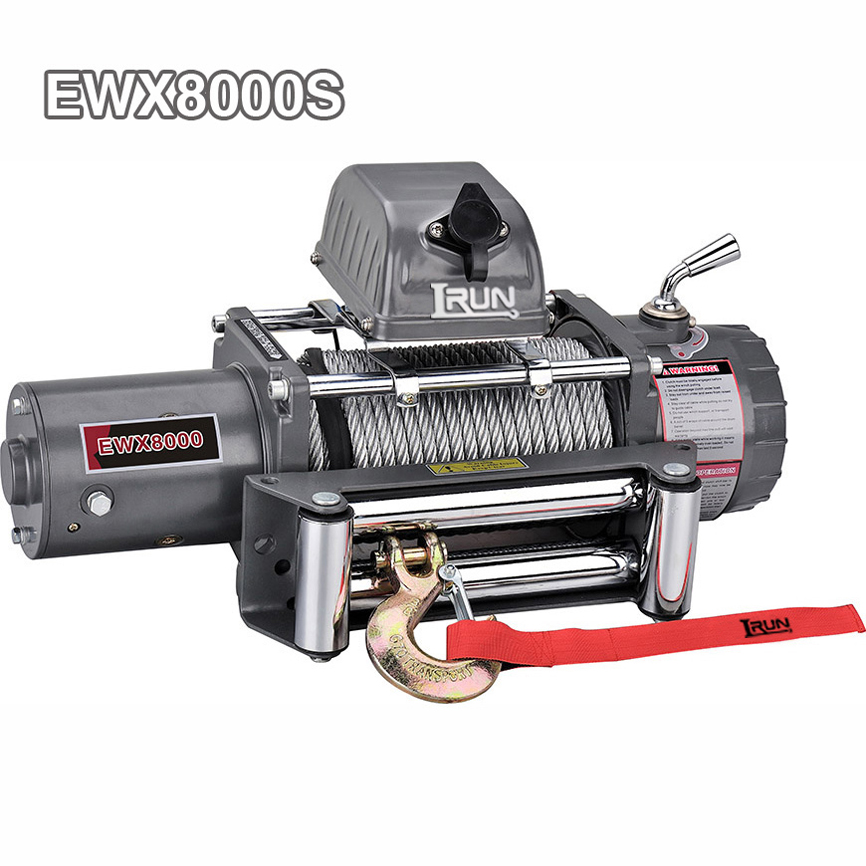

On the arena of mechanical power, Hydraulic Winches demonstrates its heavy-load strength with Hydraulic drive, Industrial Winches takes root at the forefront of industry with its steel body, and Hydraulic 4wd Winches roars freely in mud and steep slopes with four-wheel drive. Offroad Winches are the source of courage for off-road adventurers to break through desperate situations, while Recovery Winches are always the guardians of life and property. Item NO. EWX8000S, this 8,000-pound trailer winch, ingeniously ties the control box to the winch rod. As the benchmark of the EWX series Recovery Winches, it redefines the value model of high-performance electric rescue winches with ultimate efficiency, rock-solid traction stability and exquisite design!
When the vehicle is Mired in muddy swamps or trapped in the wild, the powerful 8,000-pound pulling force of the EWX8000S immediately bursts forth, like a pair of steel giant hands, easily rescuing the vehicle from the predicament and maximizing the professional rescue efficiency of Recovery Winches. Different from the cumbersome maintenance of Hydraulic pipelines and high costs of Hydraulic Winches, it adopts intelligent electric drive, one-key start and immediate response, making rescue operations simple and complicated. Inheriting the exquisite craftsmanship of Industrial Winches at the same time, the body forged from high-strength alloy and the precisely meshing transmission components have undergone countless rigorous tests. Even in high-intensity and high-frequency usage scenarios, it still maintains stable and reliable outstanding performance.
Its patented three-stage planetary gear reducer is a crystallization of mechanical engineering wisdom, endowing the EWX8000S with nearly perfect transmission efficiency and rock-solid safety guarantee, ensuring that every traction is precisely controllable and foolproof. Equipped with custom-made high-strength anti-breakage steel wire ropes, flexible and durable roller cable guides and other professional Winch Accessories, it builds a one-stop efficient rescue system from precise control to powerful traction. Whether teering with Offroad Winches to challenge the extreme off-road in the "Dead Gobi", or cooperating with Hydraulic 4Wd Winches to carry out emergency rescue in heavy rain and mountain floods, the EWX8000S, with its unique control box design, leading performance in its class and unparalleled cost performance, Become the preferred equipment for professional rescue teams, off-road clubs and outdoor adventurers, and build a solid backing for every crisis rescue with its hardcore strength!
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Short Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F type fixed in control box
9. SWR tensioner available
EWX8000S
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629kgs) |
| Motor: permanent magnet | 12V:Input: 4.3kW / 5.8hp; Output: 2.0kW / 2.7hp |
| 24V:Input: 5.5kW / 7.4hp; Output: 2.8kW / 3.8hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø21/64″×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 2000(907) | 6.6(2.0) | |
| 0 | 9.5(2.9) | 9.8(3.0) | 15 | 12 | 2 | 1630(739) | 14.1(4.3) |
| 500(227) | 8.2(2.5) | 8.9(2.7) | 60 | 40 | 3 | 1380(626) | 22.3(6.8) |
| 1500(680) | 5.6(1.7) | 7.5(2.3) | 115 | 60 | 4 | 1190(540) | 31.2(9.5) |
| 2000(907) | 3.6(1.1) | 6.2(1.9) | 145 | 80 | 5 | 1050(476) | 41.0(12.5) |
| 6 | 940(426) | 49.2(15.0) | |||||
| ITEM | EWX8000U | EWX8000S | EWX8000F |
| Overall dimensions | 21.3″×6.3″×10.0″ | 21.3″×6.3″×11.1″ | 21.3″×6.3″×9.9″ |
| (L×W×H) | 540mm×160mm×254mm | 540mm×160mm×283mm | 540mm×160mm×251mm |
| Net weight (Ibs) | 71.9 | 77.3 | 82.1 |
| (kgs) | 32.6 | 35.1 | 37.2 |

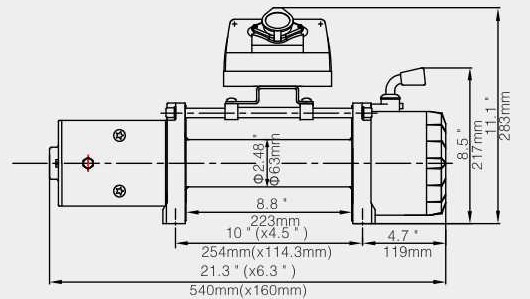

Overall Dimensions：21.3″ x 6.3″ x 10.7″
(L x W x H) 540mm x 160mm x 283mm
Net Weight：35.1 KGS
