Model No.: EWX9500U
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

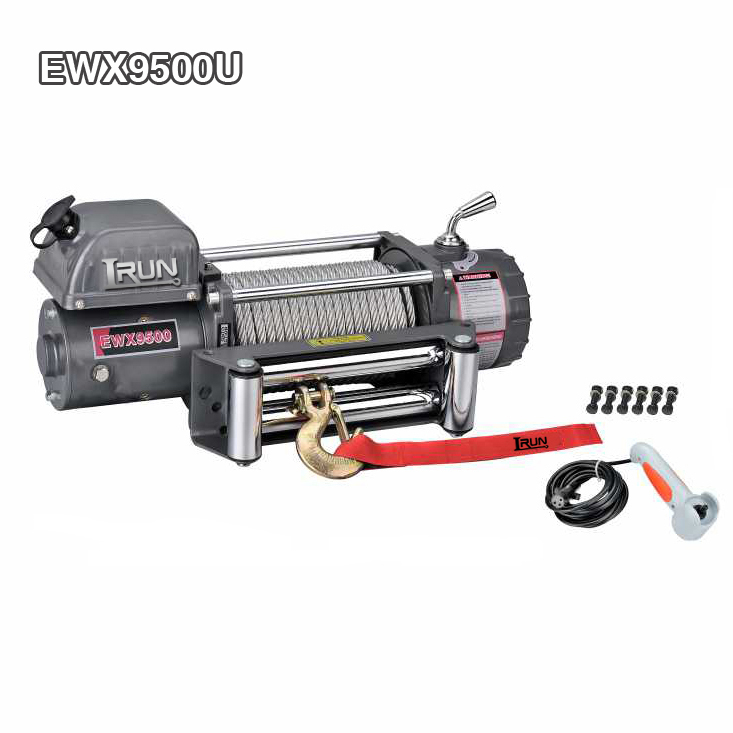

In the diverse world of Winches, Hydraulic Winches handles heavy-duty operations with powerful performance, Industrial Winches takes root in the industrial field with its robust and durable quality, and Hydraulic 4wd Winches conquers rough terrain with its four-wheel drive characteristics. Offroad Winches help off-road enthusiasts brave dangerous situations, while Recovery Winches are the key force for emergency rescue. The Model No. EWX9500U 9500 lbs electric rescue trailer winch integrates the control box on the winch motor. As a typical representative of the EWX series Recovery Winches, it redefines the excellence standard of rescue winches with perfect efficiency, stable traction and compact design!
The EWX9500U has a powerful pulling force of 9,500 pounds. Whether it is a trailer stuck in a mud pit or a vehicle trapped in the wilderness, it can quickly rescue, fully demonstrating the efficient rescue capabilities of Recovery Winches. Compared with the complex Hydraulic system and high maintenance cost of Hydraulic Winches, it adopts electric drive, is easy to operate and responds quickly, significantly lowering the usage threshold. Meanwhile, inheriting the durable essence of Industrial Winches, the precisely manufactured body and transmission components ensure stable performance and reliable durability even under high-intensity and high-frequency use.
The patented three-stage planetary gear reducer endows the EWX9500U with extremely high transmission efficiency and reliable safety performance, ensuring precise and stable traction every time. Meanwhile, it is also equipped with professional Winch Accessories such as high-strength steel wire ropes and convenient control components, providing a one-stop solution from operation to traction. Whether working hand in hand with Offroad Winches to challenge extreme off-road conditions or cooperating with Hydraulic 4Wd Winches to cope with harsh environments, the EWX9500U can stand out with the convenient design of the integrated control box, outstanding performance and extremely high cost performance. Become a reliable hardcore equipment in scenarios such as towing rescue and off-road support, and safeguard every rescue operation with outstanding capabilities!
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Short Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F type fixed in control box
9. SWR tensioner available
EWX9500
| SPECIFICATION | |
| Rated line pull | 9500 lbs (4309 kgs) |
| Motor: Series Wound | 12V:Input: 4.6kW / 6.1hp; Output: 2.1kW / 2.8hp |
| 24V:Input: 6.5kW / 8.7hp; Output: 2.8kW / 3.8hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø3/8″×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 9500(4309) | 17.4(5.3) | |
| 0 | 19.7 (6.0) | 22.3 (6.8) | 80 | 70 | 2 | 7706(3495) | 39.4(12.0) |
| 3000(1361) | 12.5 (3.8) | 16.4(5.0) | 170 | 140 | 3 | 6482(2940) | 65.0(19.8) |
| 6000(2722) | 9.8(3.0) | 12.8 (3.9) | 260 | 210 | 4 | 5593(2537) | 85.3(26.0) |
| 9500(4309) | 6.2(1.9) | 9.5(2.9) | 380 | 270 | |||
| ITEM | EWX9500U | EWX9500S | EWX9500F |
| Overall dimensions | 21.3″×6.3″×10.0″ | 21.3″×6.3″×11.1″ | 21.3″×6.3″×9.9″ |
| (L×W×H) | 292mm×113mm×108mm | 292mm×113mm×108mm | 308mm×113mm×150mm |
| Net weight (Ibs) | 80.7 | 81.7 | 86.5 |
| (kgs) | 36.6 | 37.1 | 39.2 |

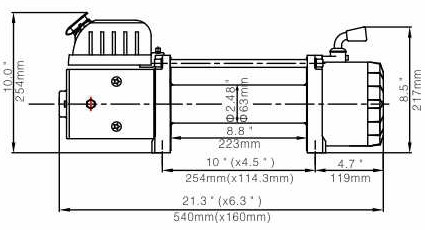

Overall Dimensions：21.3″ x 6.3″ x 10″
(L x W x H) 540mm x 160mm x 254mm
Net Weight：36.6 KGS
