Model No.: EWK8000S
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

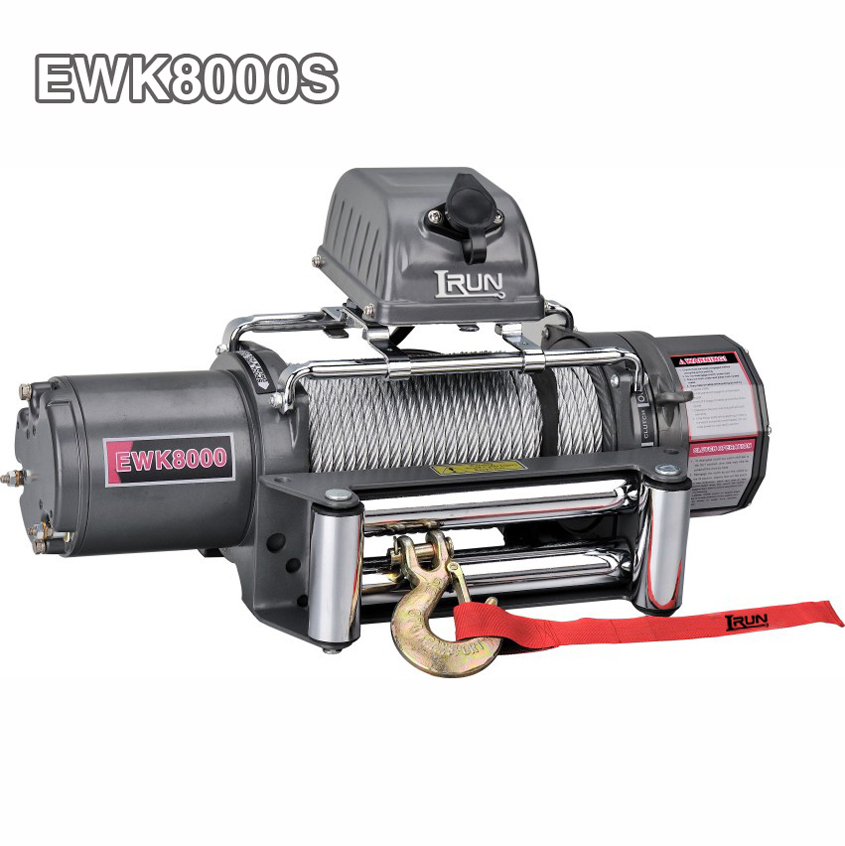

EWK8000S 8000-pound Electric Trailer Winch - The first-generation classic and still best-selling rescue, Hydraulic Winches responds to heavy load challenges with the powerful output of hydraulic power, and Industrial Winches serves industrial operations with rock-solid durability Hydraulic 4wd Winches, relying on their four-wheel drive characteristics, can navigate through complex terrains without any obstacles. Offroad Winches unlock unknown journeys for off-road enthusiasts, while Recovery Winches serve as the last line of defense to safeguard vehicle safety in difficult situations. The Model No.EWK8000S 8000-pound electric trailer winch, as the first-generation classic product, ingeniously attached the winch box to the winch rod. With its stable quality, outstanding performance and attractive price, it has always occupied a best-selling position in the market and has become the trusted choice of many users!
The EWK8000S has a powerful pulling force of 8,000 pounds. Whether it is a trailer stuck in the mud or a vehicle trapped in the wilderness, it can quickly rescue, perfectly demonstrating the efficient rescue capabilities of Recovery Winches. Unlike the complex Hydraulic system and high maintenance cost of Hydraulic Winches, it is electrically driven, easy and intuitive to operate, and has a sensitive response. Meanwhile, inheriting the durable essence of Industrial Winches, the body and transmission components crafted with precise techniques ensure stable and reliable performance even under high-intensity and high-frequency use.
The unique design of its winch box attached to the winch rod not only saves space but also makes operation within easy reach. Equipped with high-strength anti-breakage steel wire ropes, flexible and durable roller cable guides and other professional Winch Accessories, it provides a one-stop solution from control to traction. Whether challenging extreme off-road conditions with Offroad Winches or cooperating with Hydraulic 4Wd Winches to cope with harsh environments, the EWK8000S can stand out with its classic design, stable performance and extremely high cost performance. Become an enduring first-generation legend in the hearts of professional rescue teams and off-road enthusiasts, and safeguard every rescue operation and off-road adventure with consistent quality!
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Permanent Magnet Motor
5. Remote control through control box and switch
6. Wireless remote control available
7. SWR tensioner available
EWK8000
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629 kgs) |
| Motor: permanent magnet | 12V:Input: 4.2kW / 5.5hp; Output: 1.4kW / 1.9hp 24V:Input: 5.8kW / 7.7hp; Output: 1.7kW /2.3hp |
| Gear reduction ratio | 210:1(12V); 150:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9” (Ø63mm×227mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 5000(2268) | 14.8(4.5) | |
| 0(0) | 12.1(3.7) | 18.0(5.5) | 45 | 25 | 2 | 4200(1905) | 29.5(9.0) |
| 1000(454) | 10.5(3.2) | 15.7 (4.8) | 90 | 55 | 3 | 3700(1678) | 55.8(17.0) |
| 3000(1361) | 7.5 (2.3) | 11.5 (3.5) | 150 | 100 | 4 | 3200 (1452) | 78.7(24.0) |
| 5000(2268) | 4.9 (1.5) | 5.3 (1.6) | 230 | 180 | |||

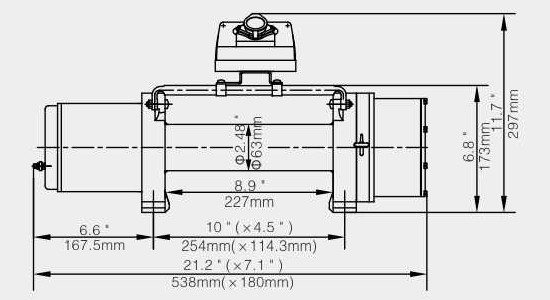

| ITEM | EWK8000U | EWK8000S | EWK8000F |
| Overall dimensions | 21.9″×7.1″×9.6″ 555mm×180mm×243mm | 21.2″×7.1″×11.7″ 538mm×180mm×297mm | 21.2″×7.1″×10.6″ 538mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 63.5 28.8 | 64.2 29.1 | 68.1 31.0 |
| (kgs) |
