Model No.: EWX10000S
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

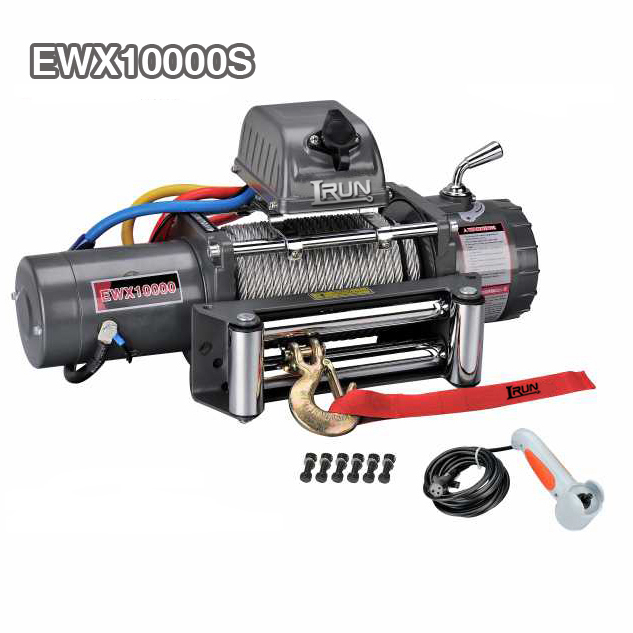

EWX 10000S Electric Trailer Winch - Efficient and stable, rescue and off-road. In the vast world of Winches, Hydraulic Winches handles heavy loads with powerful performance, and Industrial Winches serves industrial scenarios with its robust and durable features. Hydraulic 4wd Winches conquer complex terrains with the advantage of four-wheel drive. Offroad Winches are the capable partners for off-road enthusiasts to break through difficult situations, and Recovery Winches are the reliable ones in emergency rescue moments. The Model No. EWX 10000S 10000 lbs electric Trailer Winch, as an outstanding representative of the EWX series Recovery Winches, ingeniously installed the control box on the winch pull rod, redefining the excellence standard of trailer winches with perfect efficiency, stable traction and compact design!
The EWX 10000S electric trailer winch has a powerful pulling force of 10,000 pounds. Whether it is a trailer stuck in the mud or a vehicle trapped in the wilderness, it can quickly rescue and maximize the rescue efficiency of Recovery Winches. Compared with the complex Hydraulic system and high maintenance cost of Hydraulic Winches, it adopts electric drive, which is more convenient to operate and more sensitive in response. Meanwhile, inheriting the durable quality of Industrial Winches, the high-strength alloy body and precisely manufactured transmission components ensure stable performance and reliable durability even under long-term and high-intensity use.
Its patented three-stage planetary gear reducer endows the winch with extremely high transmission efficiency and safety performance, ensuring that every traction is stable and efficient. Equipped with professional Winch Accessories such as control boxes, high-strength steel wire ropes, and roller cable guides, it offers a one-stop solution from operation to traction. Whether challenging extreme off-road conditions with Offroad Winches or cooperating with Hydraulic 4Wd Winches to cope with harsh environments, the EWX 10000S can stand out with its outstanding performance and compact design, becoming a reliable hardcore equipment in scenarios such as towing rescue and off-road support. With outstanding strength, we safeguard every rescue and adventure!
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F tyoe fixed in control box
9. SWR tensioner available
Overall Dimensions：21.9″ x 6.3″ x 11.1″
(L x W x H) 557mm x 160mm x 283mm
Net Weight：40.5 KGS
EWX10000
| SPECIFICATION | |
| Rated line pull | 10000 lbs (4536 kgs) |
| Motor: Series Wound | 12V:Input: 4.3kW / 5.8hp; Output: 2.3kW / 3.1hp |
| 24V:Input: 5.9kW / 7.9hp; Output: 3.0kW /4.0hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø3/8 “×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8” (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 10000(4536) | 17.4(5.3) | |
| 0(0) | 20.7(6.3) | 25.9(7.9) | 80 | 70 | 2 | 7969(3615) | 39.4(12.0) |
| 4000(1814) | 12.5(3.8) | 13.5(4.1) | 230 | 150 | 3 | 6624(3005) | 65.0(19.8) |
| 7000(3175) | 9.5(2.9) | 10.8(3.3) | 290 | 200 | 4 | 5667(2571) | 85.3(26.0) |
| 10000(4536) | 6.2(1.9) | 8.5(2.6) | 360 | 245 | |||
| ITEM | EWX10000U | EWX10000S | EWX10000F |
| Overall dimensions | 21.9″×6.3″×10.0″ | 21.9″×6.3″×11.1″ | 21.9″×6.5″×9.9″ |
| (L×W×H) | 557mm×160mm×254mm | 557mm×160mm×283mm | 557mm×166mm×251mm |
| Net weight (Ibs) | 88.2 | 89.3 | 93.9 |
| (kgs) | 40.0 | 40.5 | 42.6 |
Looking for ideal Recovery Winches 10000 Lb Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Vehicle Recovery Winches are quality guaranteed.We are China Origin Factory of Recovery Winch. If you have any question, please feel free to contact us.
