Model No.: EWK5000S
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

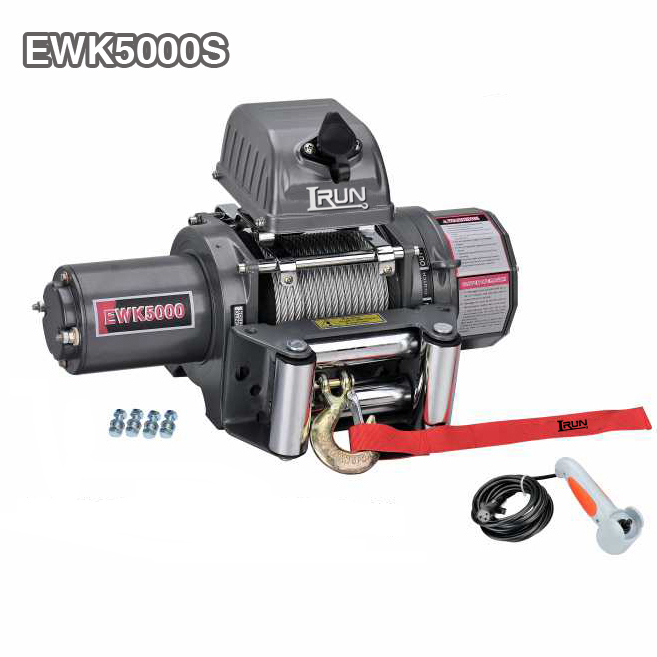

5000 lbs Electric Trailer Winch Item No. EWK5000S is idea for Suv or small car. It belongs to our first generation winch product. We design the control box tied on the Winch bar.We insist on effort to purify product to service our customers. Its features is at stable quality, fine performance and attractive price.
Hydraulic Winches, with their unwavering power, dominate heavy - duty tasks, delivering seamless performance under intense loads. Industrial Winches, the stalwarts of the manufacturing and construction worlds, handle massive weights with ease, ensuring operations run smoothly. Hydraulic 4wd Winches are the ultimate companions for 4 - wheel - drive vehicles, conquering the most rugged terrains with relentless force. Offroad Winches, the fearless warriors of the wild, rescue adventurers from sticky situations with unwavering reliability. Recovery Winches, the lifelines in times of trouble, pull vehicles and equipment out of perilous predicaments. And the Winch Accessories, the essential allies, enhance functionality, adaptability, and safety across the board, completing the winching ecosystem.
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Permanent magnet Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWK5000
| SPECIFICATION | |
| Rated line pull | 5000 lbs (2268 kgs) |
| Motor: permanent magnet | 12V:Input: 2.8kW /3.8hp; Output: 1.4kW / 1.9hp 24V:Input: 4.3kW / 5.8hp; Output: 1.7kW /2.3hp |
| Gear reduction ratio | 294:1(12V); 210:1(24V) |
| Cable (Dia.× L) | Ø1/4 “×79 ‘ (Ø6.4mm×24m) |
| Drum size (Dia.× L) | Ø2.48 “×5.5 ” (Ø63mm×139 mm) |
| Mounting bolt pattern | 6.55 “×4.5 ” (166.4mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 5000(2268) | 14.8(4.5) | |
| 0(0) | 12.1(3.7) | 18.0(5.5) | 45 | 25 | 2 | 4200(1905) | 29.5(9.0) |
| 1000(454) | 10.5(3.2) | 15.7 (4.8) | 90 | 55 | 3 | 3700(1678) | 55.8(17.0) |
| 3000(1361) | 7.5 (2.3) | 11.5 (3.5) | 150 | 100 | 4 | 3200 (1452) | 78.7(24.0) |
| 5000(2268) | 4.9 (1.5) | 5.3 (1.6) | 230 | 180 | 5 | 5000(2268) | 14.8(4.5) |
| ITEM | EWK5000U | EWK5000S | EWK5000F |
| Overall dimensions | 18.4″×7.1″×9.6″ 466mm×180mm×243mm | 17.5″×7.1″×11.7″ 444mm×180mm×297mm | 17.5″×7.1″×10.6″ 444mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 47.8 21.7 | 48.2 21.9 | 49.8 22.6 |
| (kgs) |

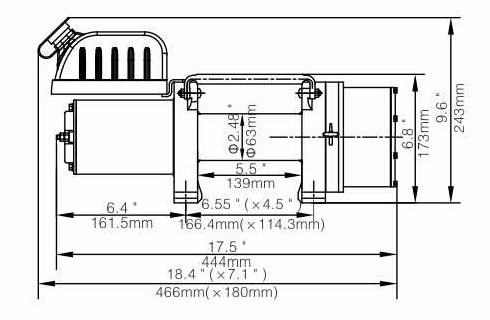

Overall Dimensions：17.5″ x 7.1″ x 11.7″
(L x W x H) 444mm x 180mm x 297mm
