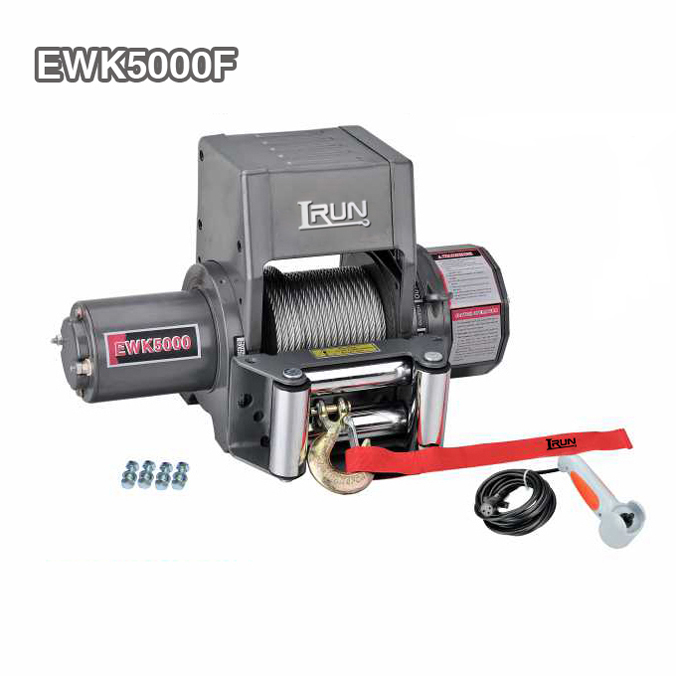

Model No.: EWK5000F
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
In the vastness of Winches, Hydraulic Winches carry heavy tasks with the powerful Hydraulic drive, Industrial Winches take root in the industrial field with its sturdy and durable characteristics, and Hydraulic 4wd Winches gallop freely in complex terrains with four-wheel drive. Offroad Winches open up adventure paths for off-road enthusiasts, while Recovery Winches are a solid support for rescue in difficult situations. The Item no.EWK5000F 5000 lbs electric Trailer Winch, as a representative work of the first-generation Offroad Winches, has endured the accumulation of time and still enjoys a high reputation among long-term cooperative customers. This is due to our unremitting pursuit of product quality, with stable quality, excellent performance and affordable price Continue the classic legend!
The EWK5000F is specifically designed for off-road scenarios. With a reliable pulling force of 5,000 pounds, it can quickly rescue a car stuck in the mud or a trailer trapped in the wilderness, combining the efficient rescue capabilities of Recovery Winches. Compared with the complex Hydraulic system and high maintenance cost of Hydraulic Winches, it adopts electric drive, is easy to operate and has a sensitive response. Drawing on the durability essence of the Industrial Winches, the meticulously polished body and transmission components ensure stable performance even during frequent off-road use.
We continuously optimize product details, offering a full range of professional Winch Accessories from high-strength steel wire ropes to convenient control components, providing comprehensive support for rescue operations. Whether challenging extreme off-road routes alongside the new generation of Offroad Winches or cooperating with Hydraulic 4Wd Winches to cope with harsh environments, the EWK5000F can stand out with its classic design, stable performance and extremely high cost performance. Become a trusted first-generation classic in the hearts of veteran off-road enthusiasts and professional rescue teams, and safeguard every off-road adventure with unchanging quality!
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Permanent magnet Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWK5000
| SPECIFICATION | |
| Rated line pull | 5000 lbs (2268 kgs) |
| Motor: permanent magnet | 12V:Input: 2.8kW /3.8hp; Output: 1.4kW / 1.9hp 24V:Input: 4.3kW / 5.8hp; Output: 1.7kW /2.3hp |
| Gear reduction ratio | 294:1(12V); 210:1(24V) |
| Cable (Dia.× L) | Ø1/4 “×79 ‘ (Ø6.4mm×24m) |
| Drum size (Dia.× L) | Ø2.48 “×5.5 ” (Ø63mm×139 mm) |
| Mounting bolt pattern | 6.55 “×4.5 ” (166.4mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 5000(2268) | 14.8(4.5) | |
| 0(0) | 12.1(3.7) | 18.0(5.5) | 45 | 25 | 2 | 4200(1905) | 29.5(9.0) |
| 1000(454) | 10.5(3.2) | 15.7 (4.8) | 90 | 55 | 3 | 3700(1678) | 55.8(17.0) |
| 3000(1361) | 7.5 (2.3) | 11.5 (3.5) | 150 | 100 | 4 | 3200 (1452) | 78.7(24.0) |
| 5000(2268) | 4.9 (1.5) | 5.3 (1.6) | 230 | 180 | 5 | 5000(2268) | 14.8(4.5) |
| ITEM | EWK5000U | EWK5000S | EWK5000F |
| Overall dimensions | 18.4″×7.1″×9.6″ 466mm×180mm×243mm | 17.5″×7.1″×11.7″ 444mm×180mm×297mm | 17.5″×7.1″×10.6″ 444mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 47.8 21.7 | 48.2 21.9 | 49.8 22.6 |
| (kgs) |
Overall Dimensions：17.5″ x 7.1″ x 10.6″
(L x W x H) 444mm x 180mm x 270mm
