Product Description

Product Attributes

Model No.: EWK5000U

Place Of Origin: China

Power Source: Electric

Application: Auto

Voltage: 24v, 12v

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	EXPORT CARTON

The file is encrypted. Please fill in the following information to continue accessing it

Heavy Duty Truck Winch



Product Description

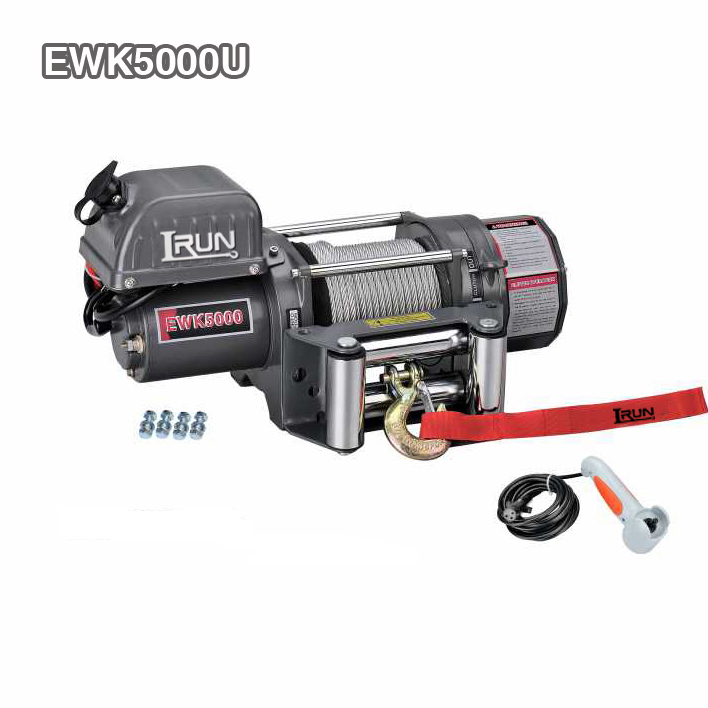

K Series Powerful Electric Trailer Winch 5000lbs For Suv

In the world of winches, our EWK5000U 5000 lbs Electric Trailer Winch for SUV with a Permanent Motor stands as a testament to reliability and performance. As our first - generation Recovery Winch, it has withstood the test of time, maintaining a strong sales record among our long - term, loyal clients, all thanks to its unwavering stable quality and outstanding performance.

While Hydraulic Winches, Industrial Winches, Hydraulic 4wd Winches, and Offroad Winches each have their unique strengths and applications, the EWK5000U Recovery Winch offers a specialized solution for trailer - based recovery needs. Its electric - powered design provides a convenient and efficient alternative, ensuring that when your SUV - towed trailer encounters trouble, this winch is ready to come to the rescue.

To further enhance the functionality and versatility of our winches, we also offer a comprehensive range of Winch Accessories. These accessories can be paired with the EWK5000U, as well as other types of winches in our lineup, from the robust Hydraulic 4Wd Winches used in challenging off - road terrains to the heavy - duty Industrial Winches designed for large - scale operations. Whether you're an off - road enthusiast relying on Offroad Winches for your adventures or a professional in need of the power and precision of Hydraulic Winches, our Winch Accessories are the perfect complement, allowing you to customize and optimize your winching experience for every situation. Trust in our EWK5000U Recovery Winch and explore the full potential of our winch offerings, including the diverse range of winches and accessories, to meet all your recovery and heavy - duty pulling needs.

Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Permanent magnet Motor
5. Remote control through control box and switch
6. Wireless remote control available
7.SWR tensioner available

EWK5000

SPECIFICATION
Rated line pull	5000 lbs (2268 kgs)
Motor: permanent magnet	12V:Input: 2.8kW /3.8hp; Output: 1.4kW / 1.9hp24V:Input: 4.3kW / 5.8hp; Output: 1.7kW /2.3hp

Gear reduction ratio	294:1(12V); 210:1(24V)
Cable (Dia.× L)	Ø1/4 “×79 ‘ (Ø6.4mm×24m)
Drum size (Dia.× L)	Ø2.48 “×5.5 ” (Ø63mm×139 mm)
Mounting bolt pattern	6.55 “×4.5 ” (166.4mm×114.3 mm) 4-M10

Pull Speed Amperes Volts First layer					Line Pull And Rope Capacity In Layer
Line Pulllbs (kgs)	Line SpeedFt/min (m/min)		CurrentA		Layerof cable	Rated line pulllbs(kgs)	Total Rope On Drumft (m)
	12V DC	24V DC	12V DC	24V DC	1	5000(2268)	14.8(4.5)
0(0)	12.1(3.7)	18.0(5.5)	45	25	2	4200(1905)	29.5(9.0)
1000(454)	10.5(3.2)	15.7 (4.8)	90	55	3	3700(1678)	55.8(17.0)
3000(1361)	7.5 (2.3)	11.5 (3.5)	150	100	4	3200 (1452)	78.7(24.0)
5000(2268)	4.9 (1.5)	5.3 (1.6)	230	180	5	5000(2268)	14.8(4.5)

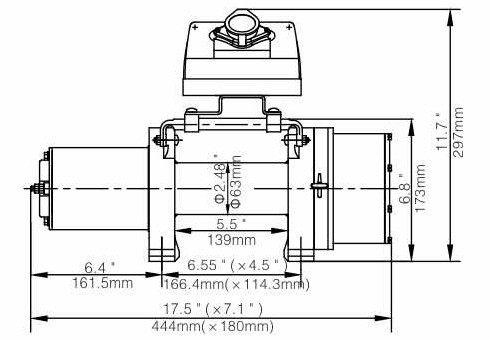

ITEM	EWK5000U	EWK5000S	EWK5000F
Overall dimensions	18.4″×7.1″×9.6″466mm×180mm×243mm	17.5″×7.1″×11.7″444mm×180mm×297mm	17.5″×7.1″×10.6″444mm×180mm×270mm
(L×W×H)
Net weight (Ibs)	47.821.7	48.221.9	49.822.6
(kgs)
