Model No.: EWG10000S
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 12v, 24v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

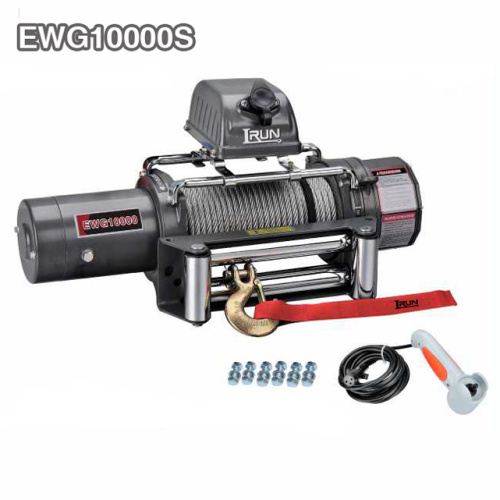

In the vast market of Winches, Hydraulic Winches are renowned for their powerful Hydraulic power, Industrial Winches serve industrial scenarios with sturdiness and durability, and Hydraulic 4wd Winches are specifically designed for four-wheel drive off-roading. Our EWG10000S 10000 lbs Electric Car Winch, as a star product of the traditional winch series, has won praise from global customers with its outstanding performance, affordable price and stable quality. Become a cost-effective choice in the Recovery Winches and Offroad Winches fields.
The EWG10000S is equipped with a powerful traction force of 10,000 pounds, making it easy to handle tasks such as vehicle entrapment and light engineering towing. It inherits the mature technology of traditional winches and continuously optimizes it on this basis. Through refined production control, it reduces costs, making high quality no longer expensive. This Winch is equipped with basic Winch Accessories such as control boxes and steel wire ropes, and supports multiple accessory upgrades to meet the needs of different scenarios.
Compared with the complex system of Hydraulic Winches, the EWG10000S is easier to operate. Compared with the heavy-duty design of the Industrial Winches, it is more suitable for vehicle rescue and off-road scenarios. Whether it's a vehicle stuck in the mud during an outdoor adventure or an emergency situation in road rescue, the EWG10000S can efficiently complete tasks with its stable performance and reliable quality, becoming a trustworthy partner for professional rescue teams and off-road enthusiasts.
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWG10000S
| SPECIFICATION | |
| Rated line pull | 10000 lbs (4536 kgs) |
| Motor: Series Wound | 12V:Input: 3.6kW / 4.8hp; Output: 2.7kW / 3.6hp 24V:Input: 4.8kW / 6.4hp; Output: 3.0kW /4.0hp |
| Gear reduction ratio | 294:1(12V); 210:1(24V) |
| Cable (Dia.× L) | Ø3/8 “×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9 ” (Ø63mm×227 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 10000(4536) | 18.0 (5.5) | |
| 0 | 17.1 (5.2) | 23.0(7.0) | 80 | 50 | 2 | 8000 (3629) | 39.4 (12.0) |
| 4000(1814) | 7.9 (2.4) | 10.5(3.2) | 170 | 115 | 3 | 6600(2994) | 64.0(19.5) |
| 6000(2722) | 6.2 (1.9) | 8.2(2.5) | 210 | 145 | 4 | 5600(2540) | 85.3(26.0) |
| 8000(3629) | 5.6 (1.7) | 6.9(2.1) | 250 | 170 | |||
| 10000(4536) | 4.6 (1.4) | 5.9(1.8) | 300 | 200 | |||
| ITEM | EWG10000U | EWG10000S | EWG10000F |
| Overall dimensions | 22.4″×7.1″×9.6″ 570mm×180mm×243mm | 22.4″×7.1″×11.7″ 570mm×180mm×297mm | 22.4″×7.1″×10.6″ 570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 73.8 33.8 | 75.0 34.0 | 75.3 34.2 |
| (kgs) |
Overall Dimensions： 22.4″ x 7.1″ x 11.3″
(L x W x H) 570mm x 180mm x 286mm
Net Weight： 34 KGS
