Model No.: EWG8000F
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

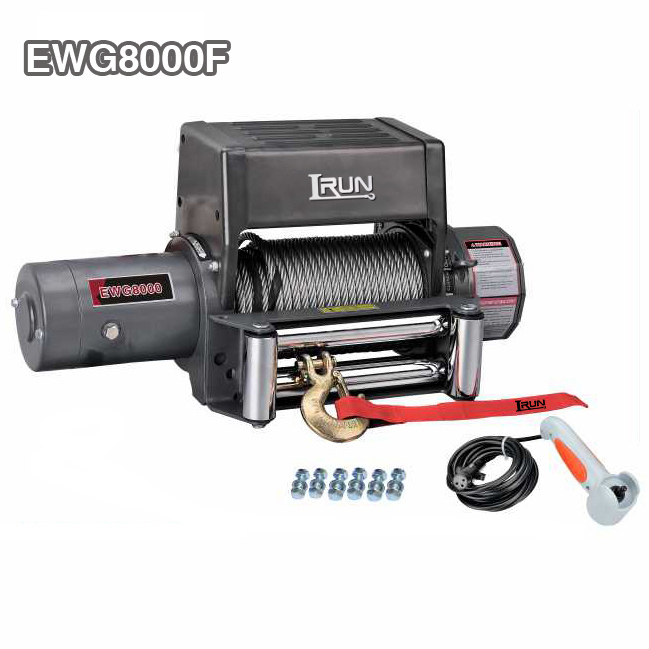

G Series 4×4 Electric Car Winches 8000lbs For Suv or Jeep
In the field of winches The powerful engine of Hydraulic Winches, the durability and reliability of Industrial Winches, the all-terrain adaptability of Hydraulic 4wd Winches, the off-road protection of Offroad Winches, and the rescue capabilities of Recovery Winches Together with the complete supporting facilities of Winch Accessories, they jointly build a solid barrier for efficient operation and safety protection. The 8000 lbs Electric Car Winch Item No.EWG8000F, as a representative of our pioneering 4×4 rescue winch products, has become a trusted choice for SUV and Jeep owners with its unique design and excellent quality.
The EWG8000F is equipped with a standing control box, which is easy to operate and enables users to easily control the operation of the winch in various complex environments. Its series-excited motor is powerful, ensuring stable and abundant pulling force at critical moments. Stable quality, excellent performance and highly attractive prices have earned it high praise from customers all over the world. Whether in Industrial scenarios where heavy equipment needs to be towed like Industrial Winches, the EWG8000F can complete the task excellently with its reliable performance. When you embark on an off-road journey in an SUV or Jeep, facing rough mountain roads and muddy swamps, it is like Hydraulic 4Wd Winches and Offroad Winches, with its powerful grip and adaptability, helping you overcome difficulties and obstacles. When the vehicle is in trouble and in urgent need of rescue, the EWG8000F can transform into a professional Recovery Winches. With a powerful pulling force of 8000 lbs, it can quickly tow the trapped vehicle out of danger.
Meanwhile, the rich and diverse Winch Accessories are perfectly compatible with the EWG8000F. From high-strength traction ropes to sensitive and precise remote controls, every accessory has undergone strict testing and meticulous design, providing all-round protection for the efficient operation of the winch and the safe use of users. Choosing the EWG8000F means choosing an all-round electric winch that combines cutting-edge technology, outstanding performance and an affordable price, and embarking on every journey of safety and efficiency.
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWG8000
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629 kgs) |
| Motor: Series Wound | 12V:Input: 3.8kW / 5.1hp; Output: 2.7kW / 3.6hp 24V:Input: 5.0kW / 6.7hp; Output: 3.0kW /4.0hp |
| Gear reduction ratio | 210:1(12V); 150:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9 ” (Ø63mm×227mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 8000(3629) | 19.7 (6.0) | |
| 0(0) | 24.0(7.3) | 34.4(10.5) | 80 | 50 | 2 | 6500(2948) | 42.7 (13.0) |
| 2000(907) | 12.5(3.8) | 19.0(5.8) | 150 | 90 | 3 | 5500(2495) | 68.9(21.0) |
| 4000(1814) | 8.9(2.7) | 12.8 (3.9) | 220 | 135 | 4 | 4800(2177) | 95.1(29.0) |
| 6000(2722) | 6.9 (2.1) | 9.8(3.0) | 270 | 170 | |||
| 8000(3629) | 5.6(1.7) | 6.6 (2.0) | 320 | 210 | |||
| ITEM | EWG8000U | EWG8000S | EWG8000F |
| Overall dimensions | 22.4″×7.1″×9.6″ 570mm×180mm×243mm | 22.4″×7.1″×11.7″ 570mm×180mm×297mm | 22.4″×7.1″×10.6″ 570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 72.5 32.8 | 72.9 33.1 | 73.8 33.5 |
| (kgs) |
Overall Dimensions：22.4″ x 7.1″ x 10.6″
(L x W x H) 570mm x 180mm x 270mm
Net Weight：33.5 KGS
