Model No.: EWK5000S
Brand: OEM ORDER ACCEPTABLE
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 12v, 24v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

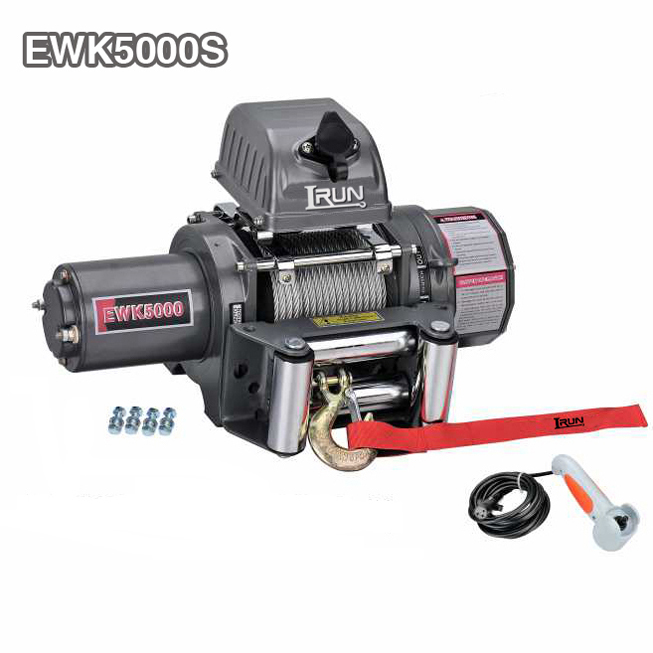

The EWK5000S ingeniously ties the control box to the winch rod. This ingenious design not only saves space inside the vehicle but also makes operation easily accessible. Whether encountering sudden difficulties during daily driving or challenging light off-road sections on weekend short trips, drivers can quickly and conveniently control the winch. We always adhere to the attitude of striving for excellence, constantly optimizing our products, all for the purpose of providing customers with better services and experiences. With quality as stable as Mount Tai, excellent and smooth performance, and an extremely attractive price, the EWK5000S has been highly favored since its launch.
During off-road adventures, it is like a professional Offroad Winches. With a powerful pulling force of 5,000 lbs, it helps SUVs and small cars easily cross mud and climb steep slopes. When the vehicle accidentally gets into trouble, it immediately transforms into a reliable Recovery Winches. With stable and powerful traction, it quickly rescues the trapped vehicle from the dangerous situation. Even in the Industrial field, when it comes to the handling and towing of light equipment, the EWK5000S can rival small Industrial Winches and complete the tasks with outstanding performance.
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Permanent magnet Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWK5000
| SPECIFICATION | |
| Rated line pull | 5000 lbs (2268 kgs) |
| Motor: permanent magnet | 12V:Input: 2.8kW /3.8hp; Output: 1.4kW / 1.9hp 24V:Input: 4.3kW / 5.8hp; Output: 1.7kW /2.3hp |
| Gear reduction ratio | 294:1(12V); 210:1(24V) |
| Cable (Dia.× L) | Ø1/4 “×79 ‘ (Ø6.4mm×24m) |
| Drum size (Dia.× L) | Ø2.48 “×5.5 ” (Ø63mm×139 mm) |
| Mounting bolt pattern | 6.55 “×4.5 ” (166.4mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 5000(2268) | 14.8(4.5) | |
| 0(0) | 12.1(3.7) | 18.0(5.5) | 45 | 25 | 2 | 4200(1905) | 29.5(9.0) |
| 1000(454) | 10.5(3.2) | 15.7 (4.8) | 90 | 55 | 3 | 3700(1678) | 55.8(17.0) |
| 3000(1361) | 7.5 (2.3) | 11.5 (3.5) | 150 | 100 | 4 | 3200 (1452) | 78.7(24.0) |
| 5000(2268) | 4.9 (1.5) | 5.3 (1.6) | 230 | 180 | 5 | 5000(2268) | 14.8(4.5) |
| ITEM | EWK5000U | EWK5000S | EWK5000F |
| Overall dimensions | 18.4″×7.1″×9.6″ 466mm×180mm×243mm | 17.5″×7.1″×11.7″ 444mm×180mm×297mm | 17.5″×7.1″×10.6″ 444mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 47.8 21.7 | 48.2 21.9 | 49.8 22.6 |
| (kgs) |
Overall Dimensions：17.5″ x 7.1″ x 11.7″
(L x W x H) 444mm x 180mm x 297mm
