Model No.: EWN17500U
Brand: OEM ORDER ACCEPTABLE
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

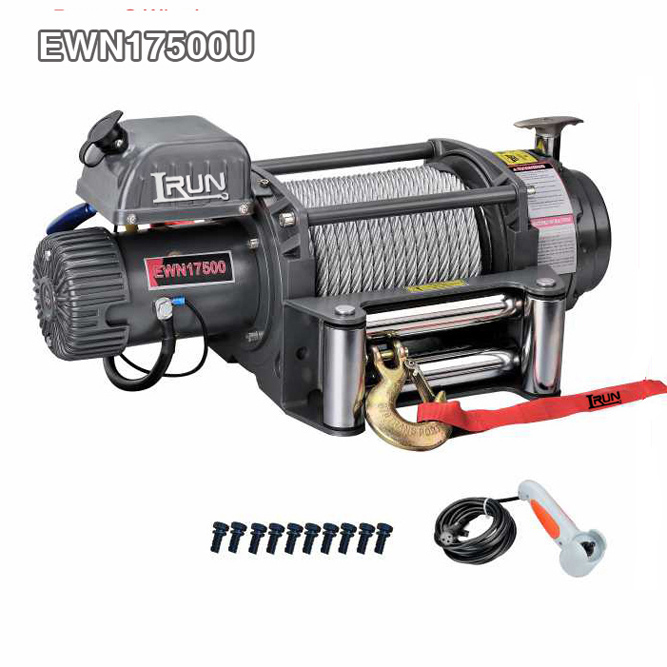

The EWN17500U is equipped with a patented three-stage planetary gear reducer, which endows it with an astonishing winch capacity of up to 17,500 pounds, making it a perfect combination of power and wisdom. Each EWN17500U comes standard with a control box, hooked steel wire rope, roller cable guide and other practical Winch Accessories, fully meeting the usage requirements from operation to traction. Its built-in heavy-duty automatic spiral cone braking device is like a constantly vigilant safety guard, ensuring that the operation process is flawless. The patented hardened all-steel three-stage planetary gear reducer, with its ultra-high transmission efficiency, ensures precise and efficient power transmission.
As a classic of the Heavy Duty Winch EWN series, the EWN17500U stands out with its extremely long service life, faster winding speed and better transmission efficiency. Whether it is a harsh engineering site or a challenging off-road journey, it can perform stably with its excellent quality and powerful performance. Choosing the EWN17500U heavy-duty electric winch means choosing a professional, reliable and efficient traction solution. Whether it's conquering industrial challenges or exploring wild and mysterious places, it will be your most trustworthy partner.
Features:
1.) Full steel reducer gear
2.) Pull and turn free spooling clutch
3.) Automatic screw cone braking action
4.) Heavy duty design
5.) Standard 4-way roller fairlead
6.) Clevis pinned/latched hook
7.)Series wound motor
8.) Patent design three stage planetary gear reducer
9.) Specially designed shape for convence of installation and good looking
10.)Remote control through control box and switch
11.) DC 12V or DC 24V Power drive optional
12.) Wireless remote optional
Rated line pull 17500 lbs(7938 kgs)
Motor: permanent magnet 12V:Input: 5.4kW / 7.2hp;Output: 2.9 kW /3.9hp
24V:Input: 6.0kW /8.0hp;Output: 3.1 kW /4.1hp
Gear reduction ratio 430:1
Cable (Dia.× L) Ø15/32 “×87 ‘ (Ø12mm×26.5m)
Drum size (Dia.× L) Ø3.5 “×8. 6” (Ø89mm×219mm)
Mounting bolt pattern 10 “×4.5 ” (254mm×114.3mm) /10 “×6.5 ” (254mm×165.1mm) 8-M12
Overall dimensions (L×W×H) 24.4″×8.4″×12.6″(620mm×214mm×321mm)
Net weight Ibs (kgs) 148.4(67.3)
EWN17500
| SPECIFICATION | |
| Rated line pull | 17500 lbs (7938 kgs) |
| Motor: permanent magnet | 12V:Input: 5.4kW / 7.2hp;Output: 2.9 kW /3.9hp 24V:Input: 6.0kW /8.0hp;Output: 3.1 kW /4.1hp |
| Gear reduction ratio | 430:1 |
| Cable (Dia.× L) | Ø15/32 “×87 ‘ (Ø12mm×26.5m) |
| Drum size (Dia.× L) | Ø3.5 “×8. 6” (Ø89mm×219mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 10 “×6.5 ” (254mm×165.1mm) 8-M12 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 17500(7938) | 18.0(6.0) | |
| 0 | 19.7(6.0) | 13.8(4.4) | 100 | 40 | 2 | 14140(6414) | 40.7(13.0) |
| 6000(2722) | 7.2(2.2) | 6.9(2.1) | 220 | 100 | 3 | 11862(5381) | 65.9(21.0) |
| 10000(4536) | 5.6(1.7) | 5.9(1.8) | 320 | 140 | 4 | 10217(4634) | 86.9(26.5) |
| 12500(5670) | 4.9(1.5) | 5.2(1.6) | 350 | 180 | |||
| 14000(6350) | 4.6(1.4) | 4.6(1.4) | 380 | 200 | |||
| 17500(7938) | 3.0(0.9) | 3.9(1.2) | 450 | 250 | |||
| ITEM | EWN17500U | EWN17500S | |
| Overall dimensions | 24.4″×8.4″×11.4″ 620mm×214mm×290mm | 24.4″×8.4″×12.6″ 620mm×214mm×321mm | |
| (L×W×H) | |||
| Net weight (Ibs) | 147.7 67.0 | 148.4 67.3 | |
| (kgs) |
Overall Dimensions 24.4″ x 8.4″ x 11.4″
(L x W x H) 620mm x 214mm x 290mm
Net Weight 67.0 KGS
