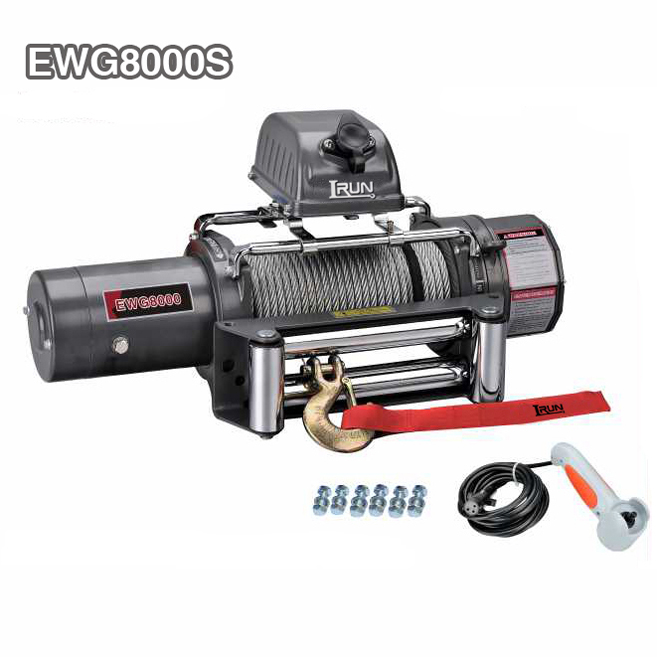

Model No.: EWG8000S
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
Since its inception, the EWG8000S has been shouldering the mission of innovation. We have always been committed to focusing on product quality. From material selection to craftsmanship, every link is meticulously crafted. At the same time, it strictly controls the production cost, perfectly integrating high quality with high cost performance. It is precisely for this reason that it has maintained a good sales performance in the market for a long time. Still during off-road adventures, when facing complex terrains such as mud and steep slopes, with a powerful grip and adaptability comparable to that of Hydraulic 4wd Winches and Offroad Winches, it helps the vehicle break through difficult situations. Or at the rescue site, transform into a professional Recovery Winches and, with a powerful pulling force of 8,000 lbs, quickly rescue the trapped vehicle.
In addition, the rich and comprehensive Winch Accessories work closely with the EWG8000S. From the wear-resistant traction rope to the precise remote control, every accessory has been meticulously designed to provide users with a comprehensive and worry-free usage experience. Choosing the EWG8000S means choosing an all-round winch that integrates cutting-edge technology, outstanding performance and an affordable price, embarking on a new journey of efficient and safe traction.
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWG8000
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629 kgs) |
| Motor: Series Wound | 12V:Input: 3.8kW / 5.1hp; Output: 2.7kW / 3.6hp 24V:Input: 5.0kW / 6.7hp; Output: 3.0kW /4.0hp |
| Gear reduction ratio | 210:1(12V); 150:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9 ” (Ø63mm×227mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 8000(3629) | 19.7 (6.0) | |
| 0(0) | 24.0(7.3) | 34.4(10.5) | 80 | 50 | 2 | 6500(2948) | 42.7 (13.0) |
| 2000(907) | 12.5(3.8) | 19.0(5.8) | 150 | 90 | 3 | 5500(2495) | 68.9(21.0) |
| 4000(1814) | 8.9(2.7) | 12.8 (3.9) | 220 | 135 | 4 | 4800(2177) | 95.1(29.0) |
| 6000(2722) | 6.9 (2.1) | 9.8(3.0) | 270 | 170 | |||
| 8000(3629) | 5.6(1.7) | 6.6 (2.0) | 320 | 210 | |||
| ITEM | EWG8000U | EWG8000S | EWG8000F |
| Overall dimensions | 22.4″×7.1″×9.6″ 570mm×180mm×243mm | 22.4″×7.1″×11.7″ 570mm×180mm×297mm | 22.4″×7.1″×10.6″ 570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 72.5 32.8 | 72.9 33.1 | 73.8 33.5 |
| (kgs) |
Overall Dimensions：22.4″ x 7.1″ x 11.3″
(L x W x H) 570mm x 180mm x 286mm
Net Weight：33.1 KGS
