Product Description

Product Attributes

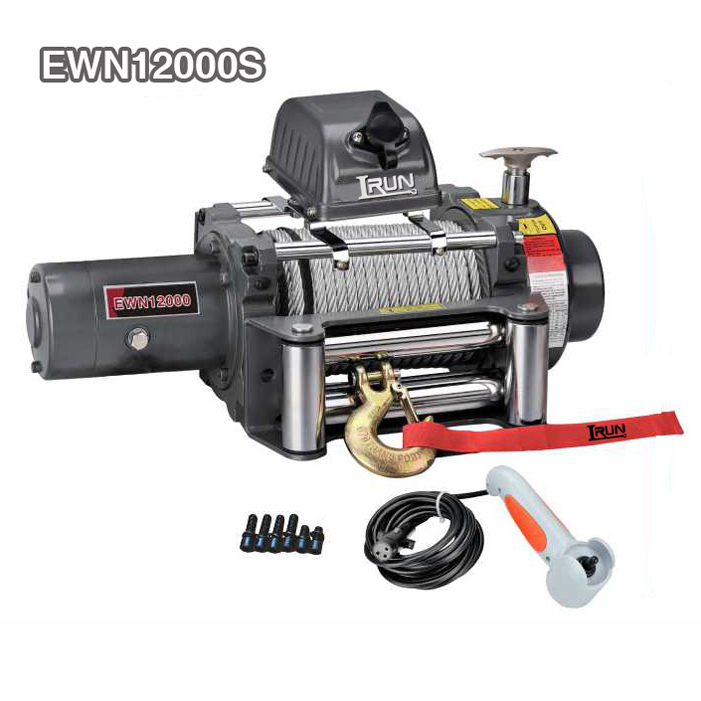

Model No.: EWN12000S

Place Of Origin: China

Power Source: Electric

Application: Auto

Voltage: 24v, 12v

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	EXPORT CARTON

The file is encrypted. Please fill in the following information to continue accessing it

Heavy Duty Truck Winch



Product Description

Heavy Duty Electric Offroad Car Winch 12000 LB

When the going gets tough, our 12000 lbs Heavy Duty Electric Car Winch, Item No. EWN12000U, steps up as a force to be reckoned with. Boasting a winching capacity of up to 12000lbs, it's a true Heavy Duty Electric Offroad Recovery Car Winch, ready to rescue your vehicle from the most challenging situations.

In the diverse landscape of winches, Hydraulic Winches offer raw power, Industrial Winches provide the muscle for large - scale operations, Hydraulic 4wd Winches are built for 4 - wheel - drive adventures, and Offroad Winches thrive in rugged terrains. But our EWN12000U carves its own path, combining the best of recovery capabilities with heavy - duty performance.

Each EWN12000U comes complete with essential Winch Accessories, including a control box, a wire rope with hook, and a roller fairlead, ensuring a seamless setup for any task. Safety is a top priority, with a heavy - duty automatic screw cone braking action guaranteeing secure operation. The patent - hardened heavy - duty full - steel three - stage planetary gear reducer delivers highly efficient transmission, making every pull smooth and powerful.

Our Heavy Duty Winch EWN Series outshines our EWX Series, offering a more durable working life, faster line speed, and superior transmission efficiency. Widely applied in severe offroad conditions and demanding engineering projects, the EWN12000U stands as a reliable Recovery Winch, ready to tackle whatever challenges come its way, and prove its mettle among the diverse range of winch solutions.

Features:

1.) Free spooling clutch

2.) Automatic screw cone braking action

3.) Series wound motor

4.) Patent design three stage planetary gear reducer

5.) Specially designed shape for convenience of installation and good looking

6.) Remote control through control box and switch

7.) Wireless remote control available

8.) DC 12V or DC 24V Power drive optional

Pull Speed Amperes Volts First layer					Line Pull And Rope Capacity In Layer
Line Pull lbs (kgs)	Line Speed Ft/min (m/min)		Current A		Layer of cable	Rated line pull lbs(kgs)	Total Rope On Drum ft (m)
	12V DC	24V DC	12V DC	24V DC	1	12000(5443)	18.4(5.6)
0	16.4(5.0)	17.7(5.4)	80	40	2	9800(4445)	41.0(12.5)
6000(2722)	7.54(2.3)	7.9(2.4)	260	110	3	8300(3765)	65.6(20.0)
8000(3629)	6.4(1.95)	6.6(2.0)	310	145	4	7200(3266)	83.7(25.5)
10000(4536)	5.74(1.75)	5.9(1.8)	380	185
12000(5443)	4.76(1.45)	5.6(1.7)	450	220

ITEM	EWN12000U	EWN12000S
Overall dimensions	22.6″×8.1″×9.7″ 573mm×206mm×246mm	22.6″×8.1″×11.8″ 573mm×206mm×299mm
(L×W×H)
Net weight (Ibs)	132.3 61	132.4 61.3
(kgs)
