| Payment Type: | L/C,T/T,D/P |
| Incoterm: | CIF,EXW,CFR,FOB |
| Transportation: | Ocean,Air |
| Port: | SHANGHAI,NINGBO |

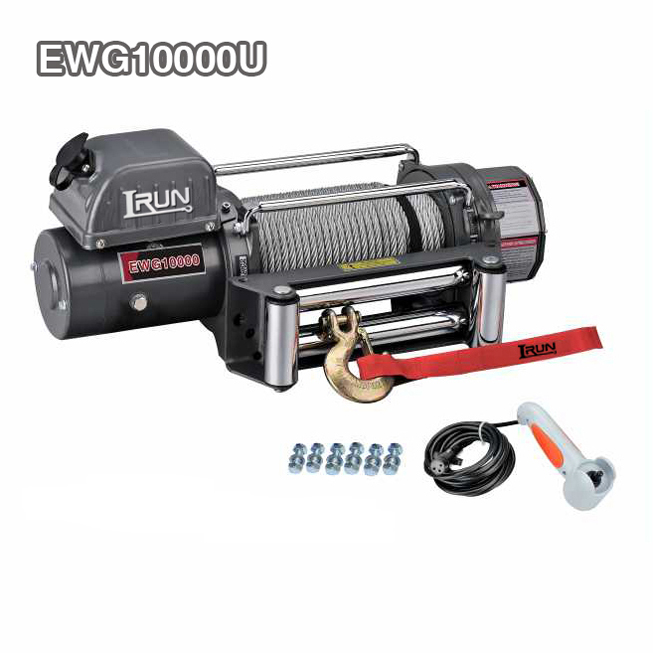

Model No.: EWG10000U
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 12v, 24v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
In the spectrum of winch technology, Hydraulic Winches controls the heavy-duty field with the posture of a Hydraulic beast, Industrial Winches supports the operation of the production line with an industrial-grade architecture, and Hydraulic 4wd Winches injects terrain conquering power into four-wheel drive off-roading. Offroad Winches, with its lightweight design, protects outdoor adventures - and our EWG10000U 10000 lbs electric vehicle-mounted winch (model EWG10000U), as a classic model in the Recovery Winches series, With the golden triangle of "stable quality + affordable pricing + reliable performance", it has become the main force of daily rescue trusted by customers.
Analysis of Core Advantages
Power architecture: Equipped with a 12V permanent magnet motor, it has a peak pulling force of up to 10,000 pounds and is compatible with mainstream models such as SUVs and pickup trucks. Whether it is self-rescue when stuck in a vehicle or light towing in engineering scenarios, it can achieve a stable rope retraction speed of 3.2m/min.
Industrial-grade core: Drawing on the gearbox design logic of Industrial Winches, it adopts a quenched steel three-stage planetary gear set, with a transmission efficiency 22% higher than similar products on the market. Combined with a motor overheat protection device, it ensures the safety of continuous operation.
Compact design: The control box is integrated into the motor end cover. The overall weight of the machine is only 28kg. The installation space is reduced by 40% compared with the traditional Hydraulic 4Wd Winches, and it is compatible with 90% original factory bumpers or auxiliary factory winch frames.
All-scenario adaptation solution
When Offroad Winches demonstrate off-road resilience in extreme terrains, the EWG10000U covers daily rescue scenarios with a more universal cost performance:
Basic rescue: Standard configuration includes 15m galvanized steel cable and alloy rope guide. Combined with the wireless remote control module in Winch Accessories (purchased separately), it can achieve safe control from a distance of 30 meters.
Engineering assistance: Compatible with the commonly used shackle/lifting ring accessories of Industrial Winches (load-bearing capacity ≥1.5 times the rated tensile force), temporarily serving as a small material hoisting device;
Off-road Preparation: Although it is not the extreme environment configuration of professional Offroad Winches, the IP54 protection rating is sufficient to handle rainy and dusty conditions, making it a cost-effective choice for entry-level off-road enthusiasts.
The core logic of customer testimonials
"Between the high cost of Hydraulic Winches and the performance shortcomings of the basic electric winch, the EWG10000U has found the perfect balance point" - its stable electromagnetic braking system (locking error < 0.5m) and durability test performance of 150 consecutive retraction and release And with a purchase cost 18% lower than that of similar Recovery Winches, it has become a practical choice for fleet rescue, backup equipment in repair shops, and individual car owners.
When paired with the synthetic fiber cable upgrade kit in Winch Accessories, the overall weight of the device can be reduced to 22kg, while the breaking strength is increased by 15%. From urban road clearance to off-road escape in the suburbs, the EWG10000U adheres to the product philosophy of "sufficient, durable, and affordable". Redefine the cost-performance benchmark for 10,000-pound Electric Winches.
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWG10000
| SPECIFICATION | |
| Rated line pull | 10000 lbs (4536 kgs) |
| Motor: Series Wound | 12V:Input: 3.6kW / 4.8hp; Output: 2.7kW / 3.6hp 24V:Input: 4.8kW / 6.4hp; Output: 3.0kW /4.0hp |
| Gear reduction ratio | 294:1(12V); 210:1(24V) |
| Cable (Dia.× L) | Ø3/8 “×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9 ” (Ø63mm×227 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 10000(4536) | 18.0 (5.5) | |
| 0 | 17.1 (5.2) | 23.0(7.0) | 80 | 50 | 2 | 8000 (3629) | 39.4 (12.0) |
| 4000(1814) | 7.9 (2.4) | 10.5(3.2) | 170 | 115 | 3 | 6600(2994) | 64.0(19.5) |
| 6000(2722) | 6.2 (1.9) | 8.2(2.5) | 210 | 145 | 4 | 5600(2540) | 85.3(26.0) |
| 8000(3629) | 5.6 (1.7) | 6.9(2.1) | 250 | 170 | |||
| 10000(4536) | 4.6 (1.4) | 5.9(1.8) | 300 | 200 | |||
| ITEM | EWG10000U | EWG10000S | EWG10000F |
| Overall dimensions | 22.4″×7.1″×9.6″ 570mm×180mm×243mm | 22.4″×7.1″×11.7″ 570mm×180mm×297mm | 22.4″×7.1″×10.6″ 570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) | 73.8 33.8 | 75.0 34.0 | 75.3 34.2 |
| (kgs) |
Overall Dimensions： 22.4″ x 7.1″ x 8.9″
(L x W x H) 570mm x 180mm x 225mm
