K-Series 5000LB 12V Electric Winch
Get Latest PricePayment Type: | L/C,T/T,D/P |
Incoterm: | FOB,CFR,CIF,EXW,FAS |
Transportation: | Ocean,Air |
Port: | SHANGHAI,NINGBO |
Payment Type: | L/C,T/T,D/P |
Incoterm: | FOB,CFR,CIF,EXW,FAS |
Transportation: | Ocean,Air |
Port: | SHANGHAI,NINGBO |
Model No.: EWK5000
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 12v, 24v
Selling Units | : | Box |
Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Permanent magnet Motor
5. Remote control through control box and switch
6. Wireless remote control available
7.SWR tensioner available
EWK5000
SPECIFICATION | |
Rated line pull | 5000 lbs (2268 kgs) |
Motor: permanent magnet | 12V:Input: 2.8kW /3.8hp; Output: 1.4kW / 1.9hp 24V:Input: 4.3kW / 5.8hp; Output: 1.7kW /2.3hp |
Gear reduction ratio | 294:1(12V); 210:1(24V) |
Cable (Dia.× L) | Ø1/4 “×79 ‘ (Ø6.4mm×24m) |
Drum size (Dia.× L) | Ø2.48 “×5.5 ” (Ø63mm×139 mm) |
Mounting bolt pattern | 6.55 “×4.5 ” (166.4mm×114.3 mm) 4-M10 |
Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
12V DC | 24V DC | 12V DC | 24V DC | 1 | 5000(2268) | 14.8(4.5) | |
0(0) | 12.1(3.7) | 18.0(5.5) | 45 | 25 | 2 | 4200(1905) | 29.5(9.0) |
1000(454) | 10.5(3.2) | 15.7 (4.8) | 90 | 55 | 3 | 3700(1678) | 55.8(17.0) |
3000(1361) | 7.5 (2.3) | 11.5 (3.5) | 150 | 100 | 4 | 3200 (1452) | 78.7(24.0) |
5000(2268) | 4.9 (1.5) | 5.3 (1.6) | 230 | 180 | 5 | 5000(2268) | 14.8(4.5) |

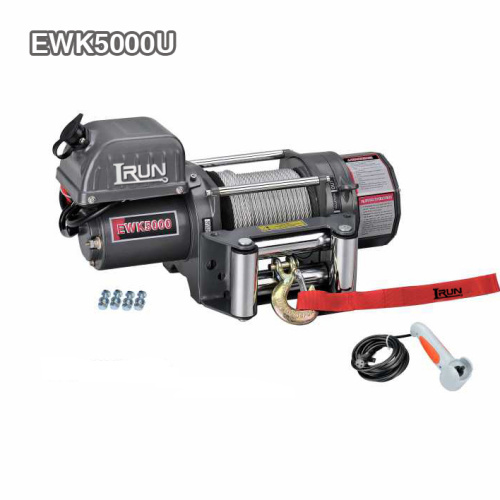

ITEM | EWK5000U | EWK5000S | EWK5000F |
Overall dimensions | 18.4″×7.1″×9.6″ 466mm×180mm×243mm | 17.5″×7.1″×11.7″ 444mm×180mm×297mm | 17.5″×7.1″×10.6″ 444mm×180mm×270mm |
(L×W×H) | |||
Net weight (Ibs) | 47.8 21.7 | 48.2 21.9 | 49.8 22.6 |
(kgs) |
