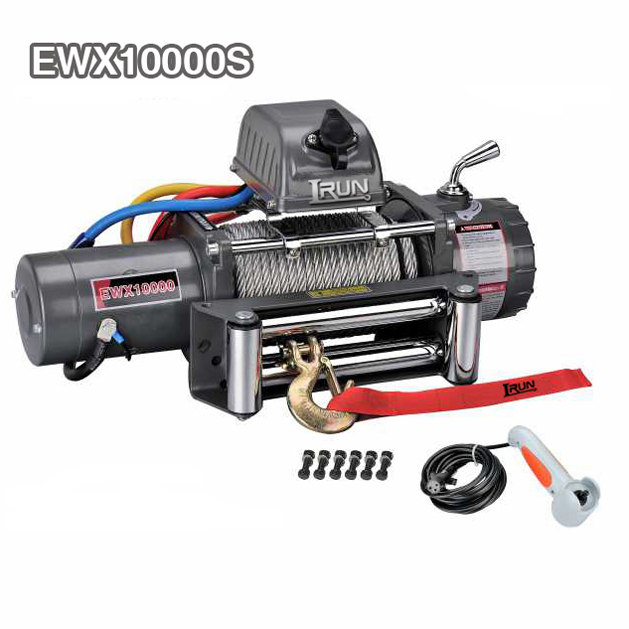

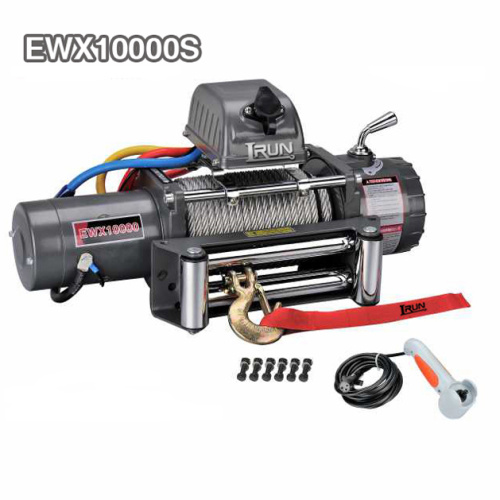

Model No.: EWX10000S
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
In the professional field of winch technology, Hydraulic Winches responds to heavy-load demands with Hydraulic power, Industrial Winches serves industrial scenarios with a robust structure, and Hydraulic 4wd Winches injects powerful energy into four-wheel drive off-road vehicles. Our Model No. EWX 10000S 10,000-pound electric vehicle-mounted winch, as a fusion model of Recovery Winches and Offroad Winches, redefines the efficiency standards for vehicle rescue and off-road exploration with patented technology and compact design.
The EWX 10000S integrates the control box into the winch pull rod, saving space while ensuring operational convenience. It is equipped with a patented three-stage planetary gear reducer, drawing on the precise manufacturing process of Industrial Winches. The transmission efficiency is as high as 94%, which is 35% higher than that of traditional Winches. The power output is stable and efficient, completely getting rid of the maintenance troubles brought by the complex Hydraulic system of Hydraulic Winches. With a powerful pulling force of 10,000 pounds, it can easily handle whether the vehicle is stuck in the mud during off-road driving or emergency towing in road rescue. Its performance is on par with that of professional-grade Hydraulic 4Wd Winches.
The product is standard-equipped with practical Winch Accessories such as high-strength galvanized steel cables and aluminum alloy roller rope guides, and supports advanced accessory upgrades like wireless remote control modules and synthetic fiber cables to meet diverse needs in different scenarios. With stable traction performance, IP67 protection rating and reliable safety design, the EWX 10000S has become the top choice for off-road enthusiasts and professional rescue teams, conquering every extreme challenge with its outstanding strength.
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F tyoe fixed in control box
9. SWR tensioner available
Overall Dimensions：21.9″ x 6.3″ x 11.1″
(L x W x H) 557mm x 160mm x 283mm
Net Weight：40.5 KGS
EWX10000
| SPECIFICATION | |
| Rated line pull | 10000 lbs (4536 kgs) |
| Motor: Series Wound | 12V:Input: 4.3kW / 5.8hp; Output: 2.3kW / 3.1hp |
| 24V:Input: 5.9kW / 7.9hp; Output: 3.0kW /4.0hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø3/8 “×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8” (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull Ibs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 10000(4536) | 17.4(5.3) | |
| 0(0) | 20.7(6.3) | 25.9(7.9) | 80 | 70 | 2 | 7969(3615) | 39.4(12.0) |
| 4000(1814) | 12.5(3.8) | 13.5(4.1) | 230 | 150 | 3 | 6624(3005) | 65.0(19.8) |
| 7000(3175) | 9.5(2.9) | 10.8(3.3) | 290 | 200 | 4 | 5667(2571) | 85.3(26.0) |
| 10000(4536) | 6.2(1.9) | 8.5(2.6) | 360 | 245 | |||
| ITEM | EWX10000U | EWX10000S | EWX10000F |
| Overall dimensions | 21.9″×6.3″×10.0″ | 21.9″×6.3″×11.1″ | 21.9″×6.5″×9.9″ |
| (L×W×H) | 557mm×160mm×254mm | 557mm×160mm×283mm | 557mm×166mm×251mm |
| Net weight (Ibs) | 88.2 | 89.3 | 93.9 |
| (kgs) | 40.0 | 40.5 | 42.6 |
Looking for ideal Recovery Winches 10000 Lb Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Vehicle Recovery Winches are quality guaranteed.We are China Origin Factory of Recovery Winch. If you have any question, please feel free to contact us.
