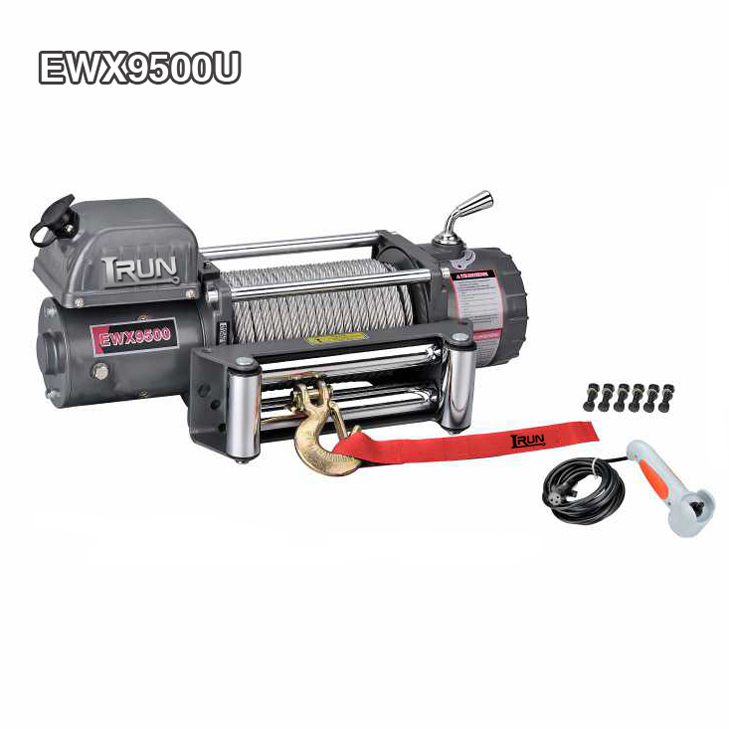

Model No.: EWX9500U
Place Of Origin: China
Power Source: Electric
Application: Auto
Voltage: 24v, 12v
| Selling Units | : | Piece/Pieces |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
In the professional field of Winches, Hydraulic Winches leads heavy-duty operations with powerful Hydraulic power, Industrial Winches supports large-scale engineering operations with industrial-grade stability, and Hydraulic 4wd Winches opens up pathways for four-wheel drive vehicles in extreme terrains. Offroad Winches serve as a solid backing for off-road explorers. And our EWX9500U 9500 lbs Electric Recovery Car Winch (Model: EWX9500U), as a leader among Recovery Winches, demonstrates outstanding performance in the rescue field.
This 9,500-pound rescue winch from the EWX series stands out for its perfect efficiency, stable pulling force and compact design. The control box is ingeniously integrated into the winch motor, making operation convenient and intuitive. The unique patented design of the EWX series - the three-stage planetary gear reducer - endows this winch with extremely high transmission efficiency and reliable safety guarantee, ensuring that every rescue operation can be carried out efficiently and smoothly.
When dealing with various complex rescue scenarios, the EWX9500U can work in conjunction with a wide range of Winch Accessories to further expand its functional boundaries. Whether it's harsh off-road conditions or urgent engineering rescue missions, it can become your trustworthy rescue partner with its outstanding performance and reliable quality.
The EWX9500U not only inherits the professional rescue genes of Recovery Winches, but also stands out among numerous winch products with its innovative design and exquisite craftsmanship, providing strong support for your rescue work.
Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Short Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F type fixed in control box
9. SWR tensioner available
EWX9500
| SPECIFICATION | |
| Rated line pull | 9500 lbs (4309 kgs) |
| Motor: Series Wound | 12V:Input: 4.6kW / 6.1hp; Output: 2.1kW / 2.8hp |
| 24V:Input: 6.5kW / 8.7hp; Output: 2.8kW / 3.8hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø3/8″×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 9500(4309) | 17.4(5.3) | |
| 0 | 19.7 (6.0) | 22.3 (6.8) | 80 | 70 | 2 | 7706(3495) | 39.4(12.0) |
| 3000(1361) | 12.5 (3.8) | 16.4(5.0) | 170 | 140 | 3 | 6482(2940) | 65.0(19.8) |
| 6000(2722) | 9.8(3.0) | 12.8 (3.9) | 260 | 210 | 4 | 5593(2537) | 85.3(26.0) |
| 9500(4309) | 6.2(1.9) | 9.5(2.9) | 380 | 270 | |||
| ITEM | EWX9500U | EWX9500S | EWX9500F |
| Overall dimensions | 21.3″×6.3″×10.0″ | 21.3″×6.3″×11.1″ | 21.3″×6.3″×9.9″ |
| (L×W×H) | 292mm×113mm×108mm | 292mm×113mm×108mm | 308mm×113mm×150mm |
| Net weight (Ibs) | 80.7 | 81.7 | 86.5 |
| (kgs) | 36.6 | 37.1 | 39.2 |
Overall Dimensions：21.3″ x 6.3″ x 10″
(L x W x H) 540mm x 160mm x 254mm
Net Weight：36.6 KGS
